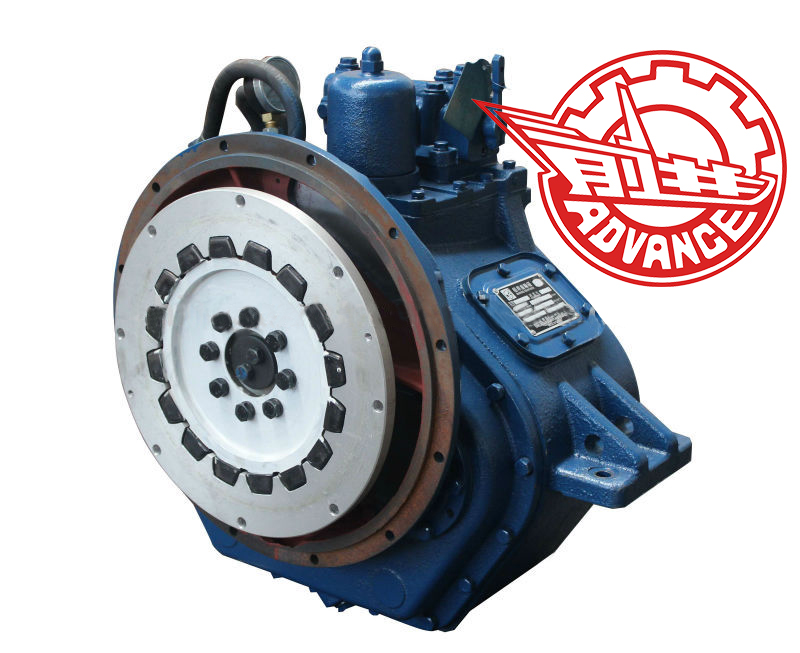

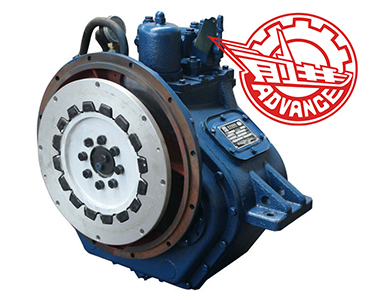

Caja Marina 40A

Ver Despieces

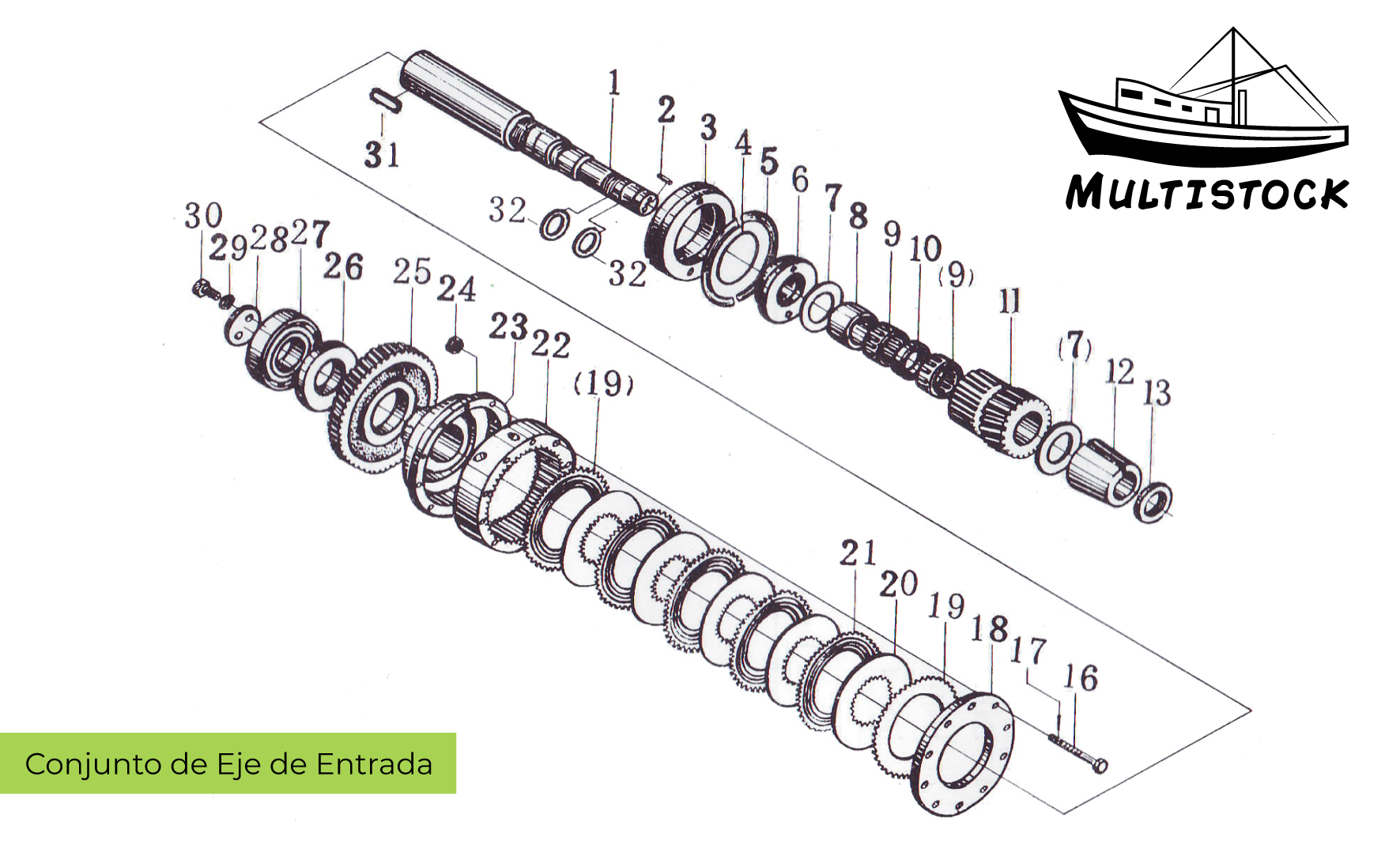

Conjunto de eje de entrada

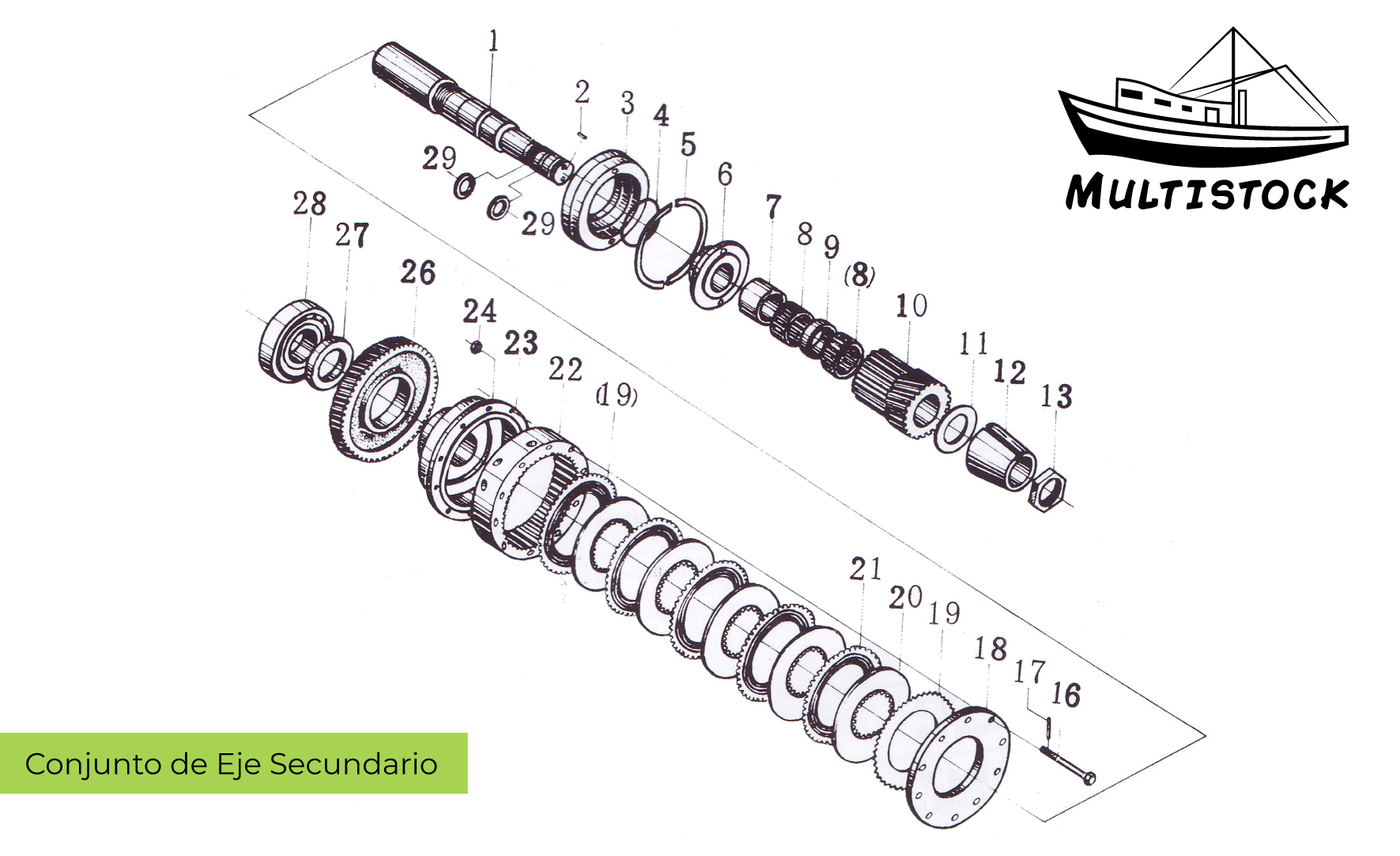

Conjunto de eje secundario

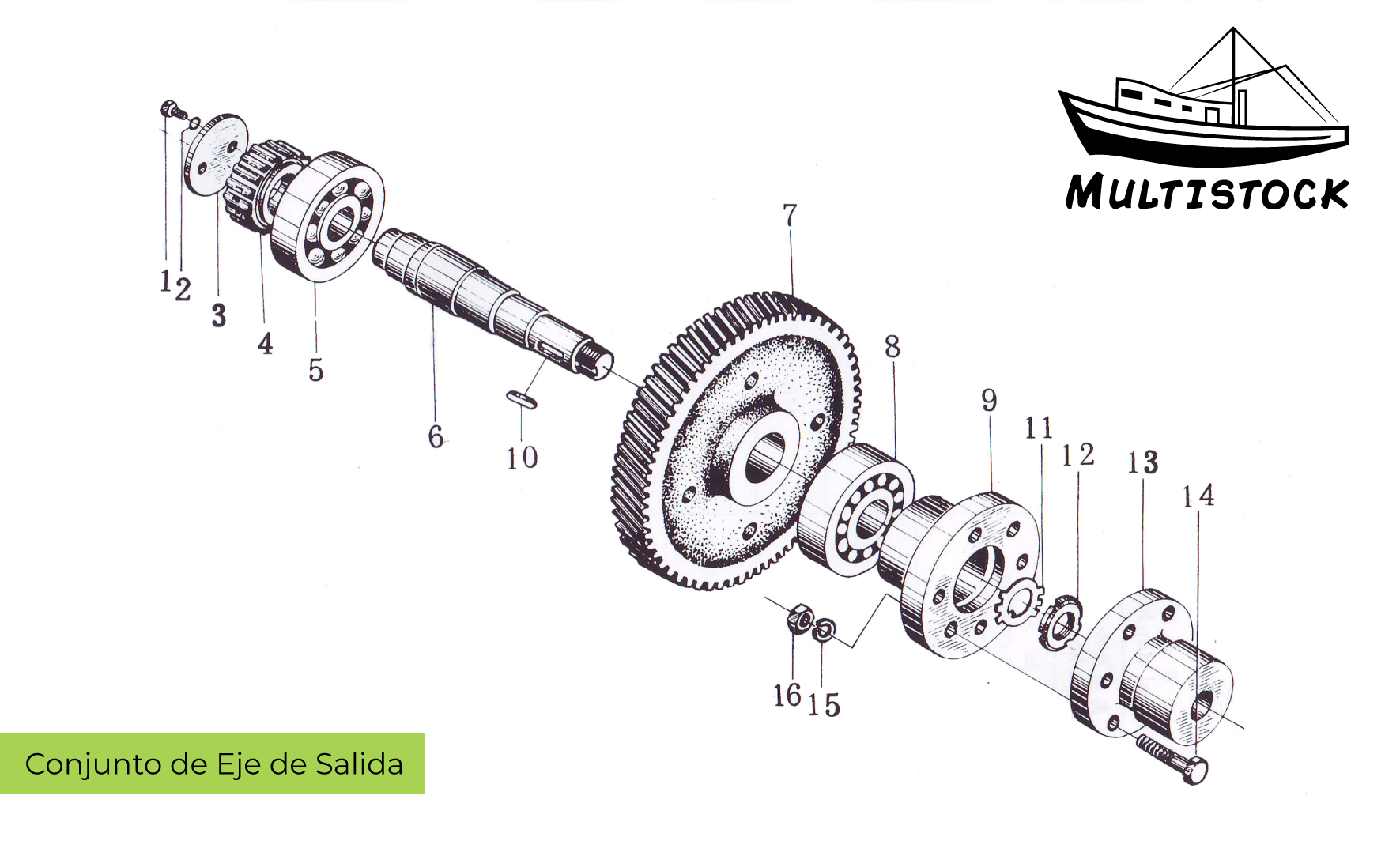

Conjunto eje de salida

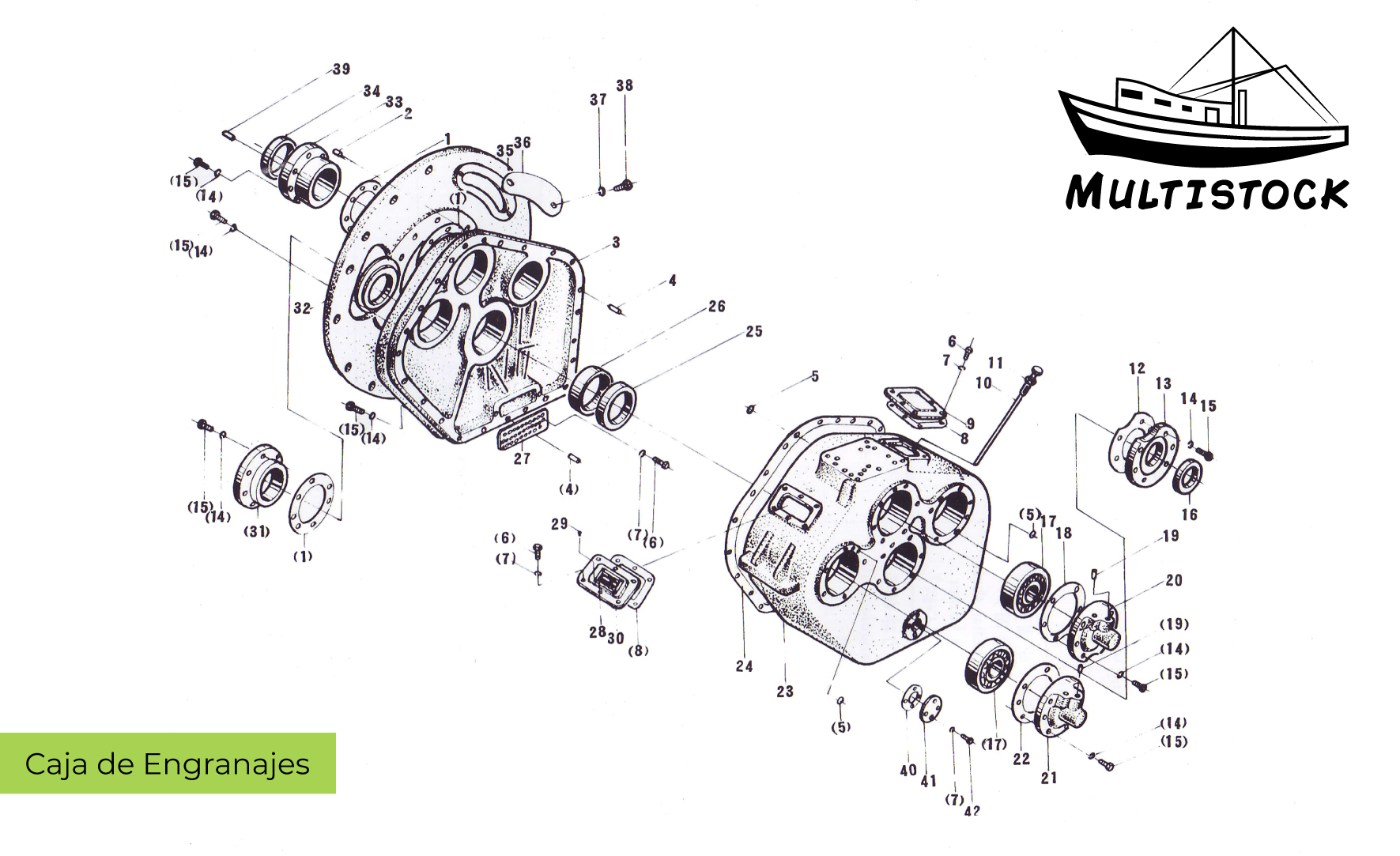

Caja de engranajes

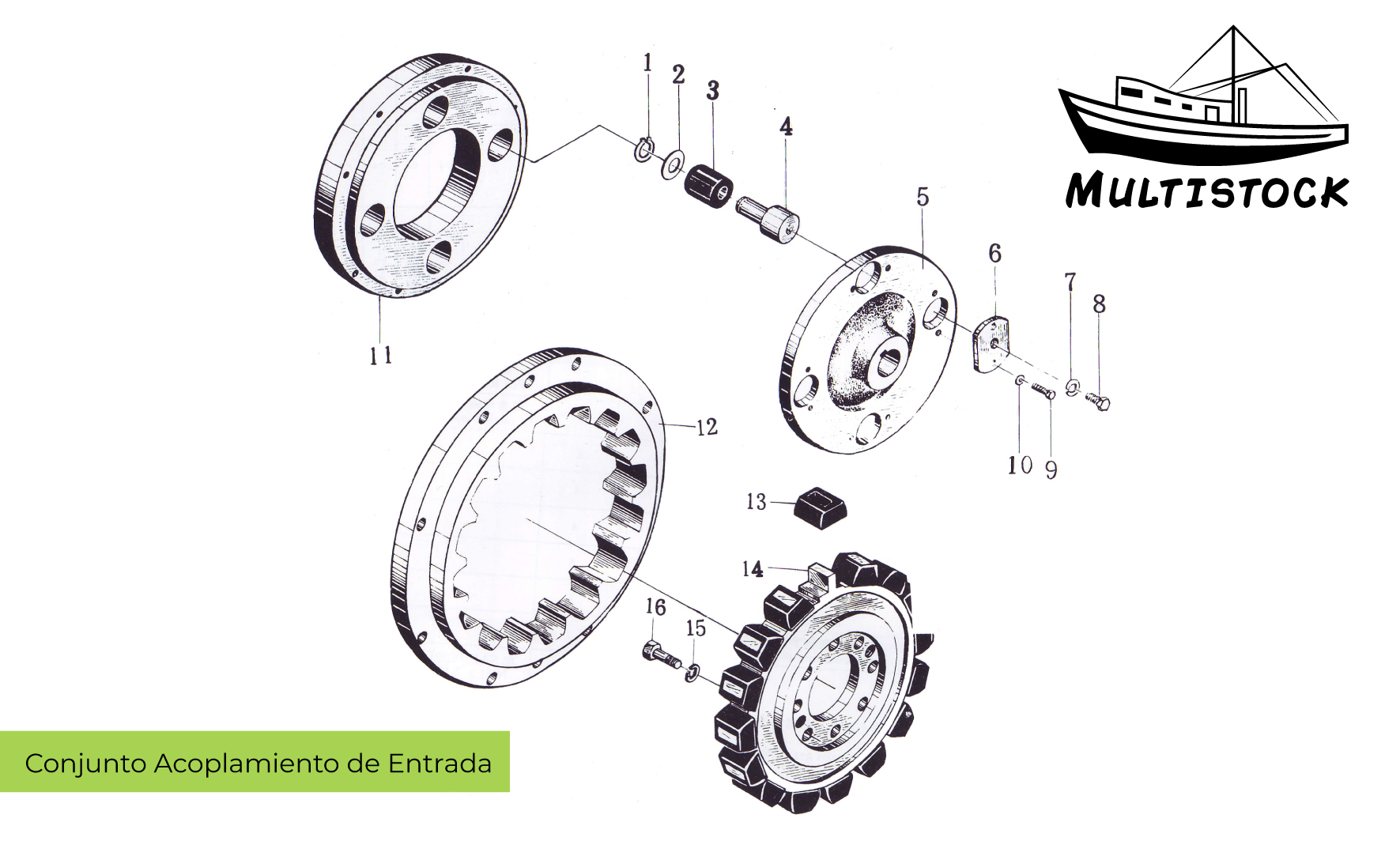

Acoplamiento de entrada

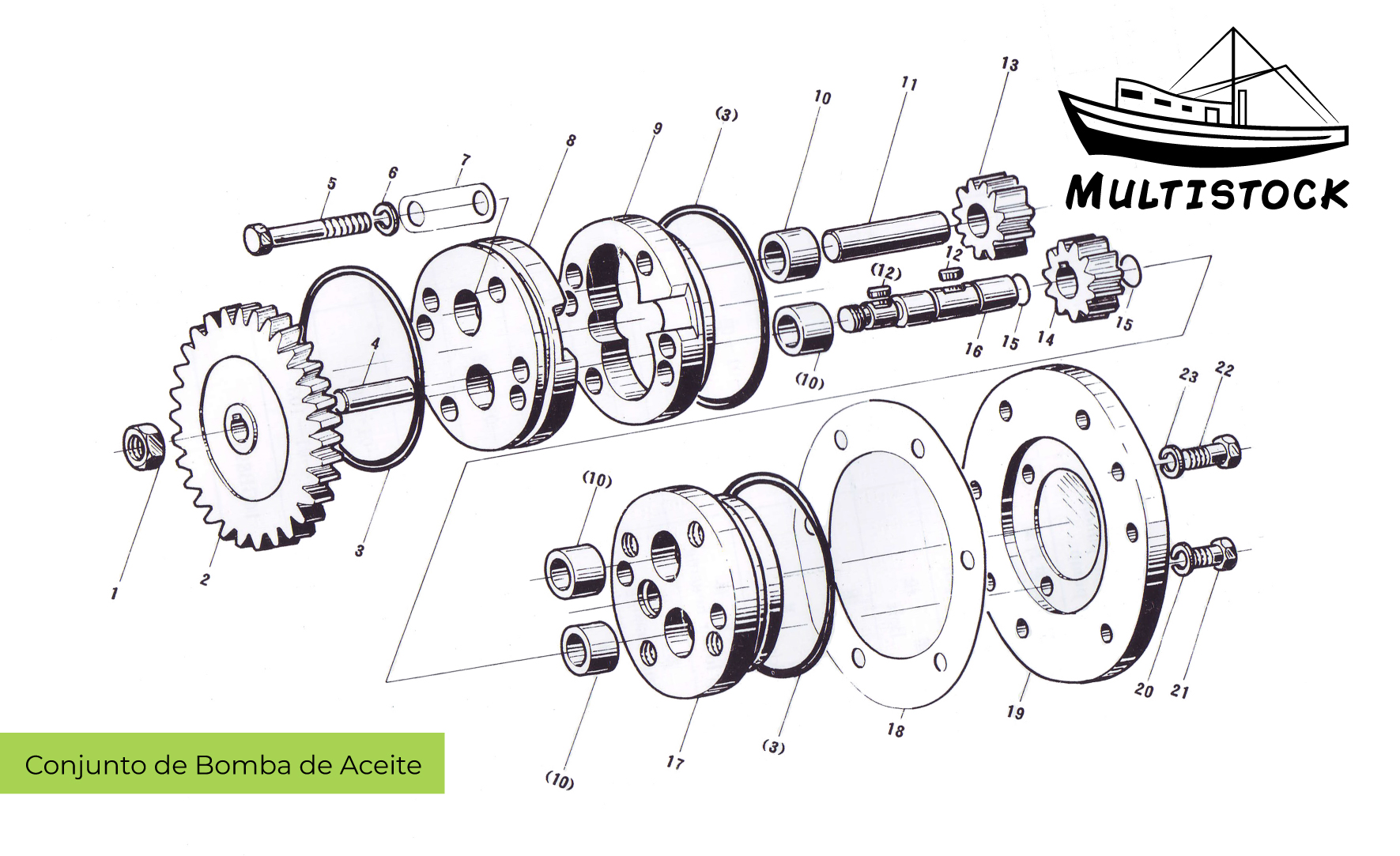

Conjunto de bomba de Aceite

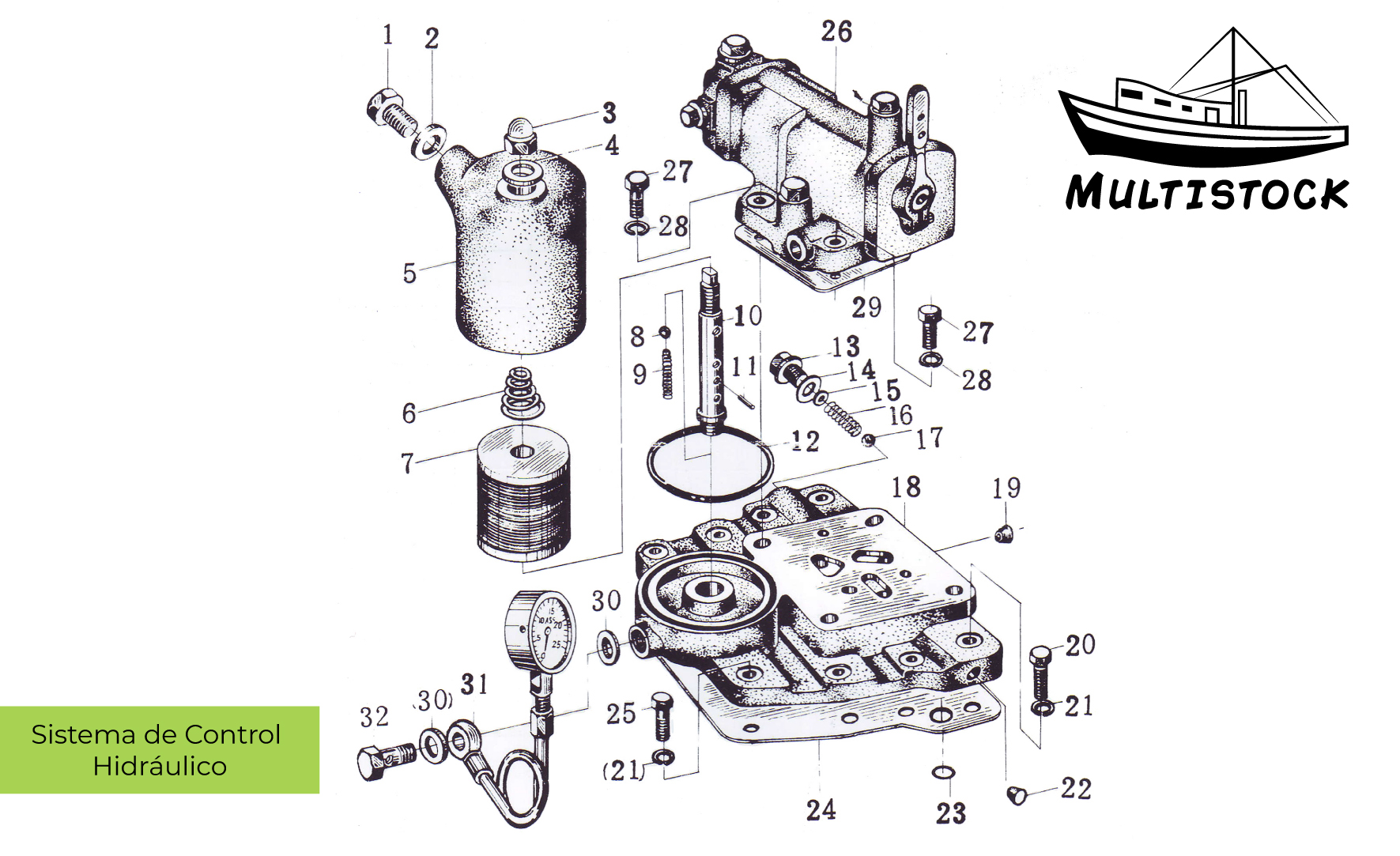

Sistema de control hidráulico

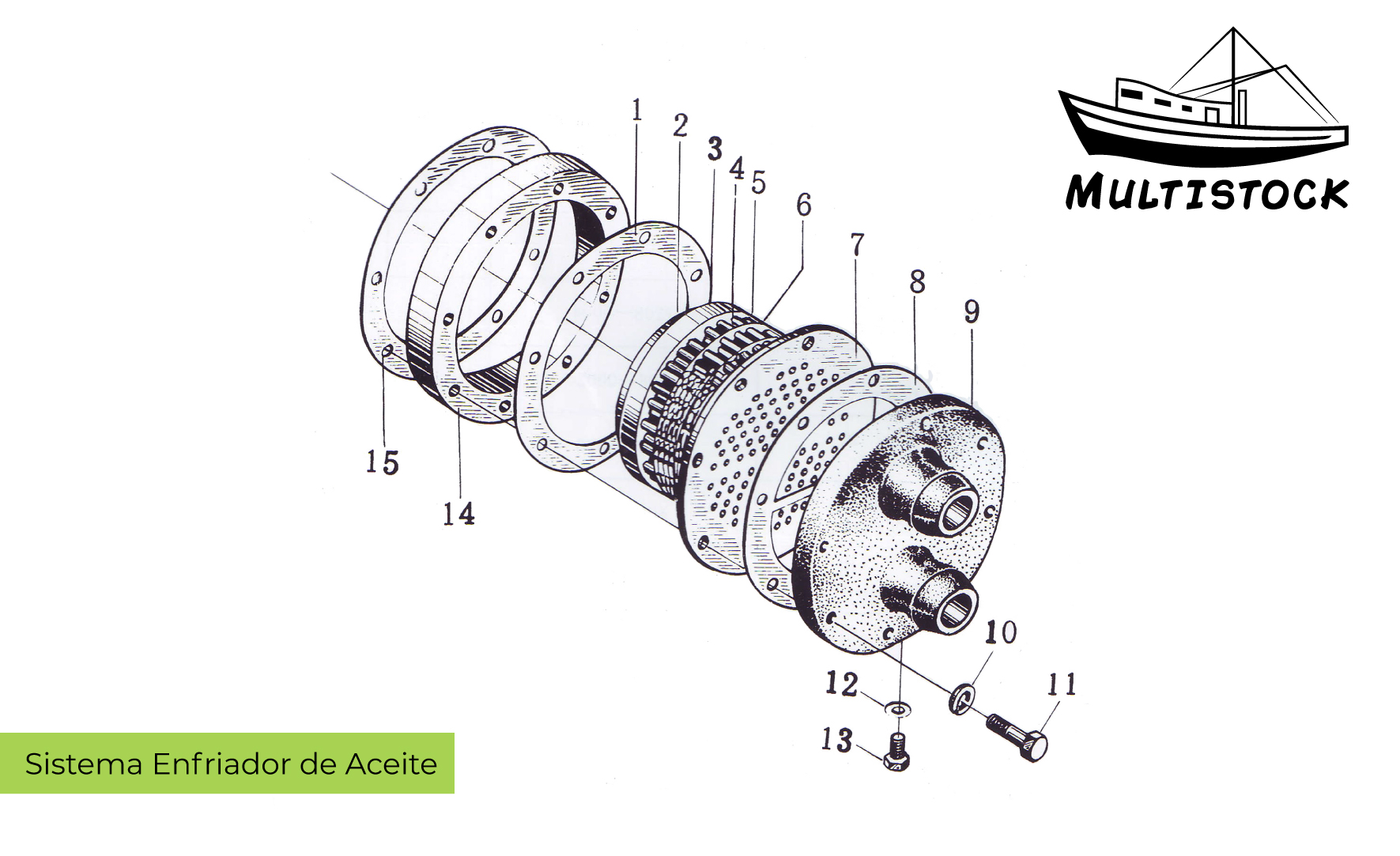

Sistema enfriador de aceite

Descripción

La caja de Cambios Marina 40A posee funciones de reducción de velocidad, adelante y atrás agarrando y teniendo la hélice de empuje. Está diseñado de forma vertical y una sola etapa de transmisión, ofreciendo un peso lijero y pequeño volumen.

Ficha Técnica

Input speed	750-2000r/min			Center distance	142mm
Reduction ratio	2.07、2.96	trans. capacity	0.030kw/r/min	L×W×H	490×670×620mm
Reduction ratio	3.44	trans. capacity	0.025kw/r/min	Net weight	225kg
Control way	Push-and-pull flexible shaft, electrically			Flywheel	4110C、SAE14、11.5
Rated thrust	8.8KN			Bell housing	4110C、SAE1、2、3

Galería de Repuestos

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant
1	Input shaft	401—0001	1	17	Cotter pin	2 x 16GB91—76	10
2	Plug	401—0028	1	18	Thrust plate	401—0009	1
3	Hydraulic piston	401—0005	1	19	Single—face clutch disc	401—0018	2
4	Oring	ф4 x ф65Q26—01	1	20	Internal clutch disc	401—0019	5
5	Piston ring	401—0025	1	21	External clutch disc	401—0007A	4
6	Right — handed oil plug	401—0004	1	22	Clutch housing	401—0006	1
7	Thrust disc	401—0016	2	23	cylinder body	401—0003	1
8	Oil bushing	401—0008	1	24	Nut	M8GB57—76	10
9	Needle bearing	9243/40	2	25	Transmission gear, input shaft	401—0002	1
10	Bearing spacer	401—0011	1	26	Oil nozzle	401—0026	1
11	Drive pinion	401—2012(reduction ratio 2:1)	1	27	Single—row angular, ball bearing	36309GB292—64	1
401—3012(reduction ratio 3.1:1)	28	Front plate	401—0023	1
401—3512(reduction ratio 3.5:1)	29	Washer	10GB93—76	2
12	Bearing bush	401—0013B	1	30	Bolt	M10X25GB21—76	2
13	Right — handed nut	401—0014A	1	31	ﬂat Key	14X45GB1096—72	1
16	Bolt	M8 x 70GB23—76	10	32	Piston ring	401—0015A	2

N°

Descripción

Codigo Parte

Cant.

N°

Descripción

Codigo Parte

Cant

Input shaft

401—0001

Cotter pin

2 x 16GB91—76

Plug

401—0028

Thrust plate

401—0009

Hydraulic piston

401—0005

Single—face clutch disc

401—0018

Oring

ф4 x ф65Q26—01

Internal clutch disc

401—0019

Piston ring

401—0025

External clutch disc

401—0007A

Right — handed oil plug

401—0004

Clutch housing

401—0006

Thrust disc

401—0016

cylinder body

401—0003

Oil bushing

401—0008

Nut

M8GB57—76

Needle bearing

9243/40

Transmission gear, input shaft

401—0002

Bearing spacer

401—0011

Oil nozzle

401—0026

Drive pinion

401—2012(reduction ratio 2:1)

Single—row angular, ball bearing

36309GB292—64

401—3012(reduction ratio 3.1:1)

Front plate

401—0023

401—3512(reduction ratio 3.5:1)

Washer

10GB93—76

Bearing bush

401—0013B

Bolt

M10X25GB21—76

Right — handed nut

401—0014A

ﬂat Key

14X45GB1096—72

Bolt

M8 x 70GB23—76

Piston ring

401—0015A

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant
1	Secondary shaft	402—0001	1	13	Left - handed nut	402—0006	1
2	Plug	401—0028	1	16	Bolt	M8 x 70 GB23—76	10
3	Hydraulic piston	401—0005	1	17	Cotter pin	2 x 16 GB91—76	10
4	Oil seal	ф4 x ф65 Q26—01	1	18	Thrust plate	401—0009	1
5	Piston ring	40 1 —0025	1	19	Single — face clutch disc	401—0018A	2
6	Left — handed plug	402—0004	1	20	Internal clutch disc	401—0019	5
7	Oil bushing	401 —0008	1	21	External clutch disc	401—0007A	4
8	Needle bearing	9243/40	2	22	Clutch housing	401—0006	1
9	Bearing spacer	401—0011	1	23	Hydraulic cylinder	401—0003	1
10	Drive pinion	401-2012( Reduction ratio 2:1)	1	24	Nut	M8 GB57—76	10
401-3012( Reduction ratio 3:1)	26	Transmission gear secondary shaft	402—0002	1
401-3512( Reduction ratio 3.5:1)	27	Oil nozzle ring	402—0005	1
11	Thrust disc	401—0016	1	28	Single - row angular ball bearing	309 GB276-82	1
12	Bearing bush	401—0013B	1	29	Piston ring	401—0015A	2

N°

Descripción

Codigo Parte

Cant.

N°

Descripción

Codigo Parte

Cant

Secondary shaft

402—0001

Left - handed nut

402—0006

Plug

401—0028

Bolt

M8 x 70 GB23—76

Hydraulic piston

401—0005

Cotter pin

2 x 16 GB91—76

Oil seal

ф4 x ф65 Q26—01

Thrust plate

401—0009

Piston ring

40 1 —0025

Single — face clutch disc

401—0018A

Left — handed plug

402—0004

Internal clutch disc

401—0019

Oil bushing

401 —0008

External clutch disc

401—0007A

Needle bearing

9243/40

Clutch housing

401—0006

Bearing spacer

401—0011

Hydraulic cylinder

401—0003

Drive pinion

401-2012( Reduction ratio 2:1)

Nut

M8 GB57—76

401-3012( Reduction ratio 3:1)

Transmission gear secondary shaft

402—0002

401-3512( Reduction ratio 3.5:1)

Oil nozzle ring

402—0005

Thrust disc

401—0016

Single - row angular ball bearing

309 GB276-82

Bearing bush

401—0013B

Piston ring

401—0015A

N°	Descripción	Codigo Parte	Cant.
1	Bolt	M10X20GB21—76	2
2	Spring washer	10GB93—76	2
3	Front plate	401—0023	1
4	Single — row radial Short roller bearing	2209GB283—81	1
5	Single - row angular ball bearing	46310GB272—83	1
6	Output shaft	403—0001A	1
7	Output gear	403-2002(reduction ratio 2:1)	1
403-3002(reduction ratio 3:1)
403-3502(reduction ratio 3.5:1)
8	Double- row self— aligning angular roller bearing	3610GB286—64	1
9	Output coupling	403—0003A	1
10	Flat key	14X45GB1096—79	1
11	Washer	42GB858—76	1
12	Nut	M42X1.5GB812—76	1
13	match coupling	403—0004	1
14	bolt	M12X55GB27—76	6
15	washer	12GB93—76	6
16	Nut	M12GB51—76	6

N°

Descripción

Codigo Parte

Cant.

Bolt

M10X20GB21—76

Spring washer

10GB93—76

Front plate

401—0023

Single — row radial Short roller bearing

2209GB283—81

Single - row angular ball bearing

46310GB272—83

Output shaft

403—0001A

Output gear

403-2002(reduction ratio 2:1)

403-3002(reduction ratio 3:1)

403-3502(reduction ratio 3.5:1)

Double- row self— aligning angular roller bearing

3610GB286—64

Output coupling

403—0003A

Flat key

14X45GB1096—79

Washer

42GB858—76

Nut

M42X1.5GB812—76

match coupling

403—0004

bolt

M12X55GB27—76

washer

12GB93—76

Nut

M12GB51—76

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Gasket	404—0011	2	13	Rear Cover. output shaft	404—0016	1
2	Plug	ф12Q21—13	1	14	Washer	10GB93—76	52
3	Gearbox cover	404—0001	1	15	Hexagonal head bolt	M10 X 30GB21—76	48
4	Tapered pin, inside threaded at end	12X35GB118—76	2	M10 X 35GB 21—76	6
5	Seal ring	ф2 X ф16Q26—01	6	16	Oil sealing	ф50 X ф70 X 12HG4—692—67	1
6	Hexagonal Bolt	M8X12GB21—76	14	17	Double—row self-aligning angular roller bearing	113610GB286—87	2
7	Spring washer	8GB93—76	18	18	Gasket	404—0012	1
8	Gasket	404—0004	2	19	Plug	ф7Q21—14	4
9	Top cover plate	404—0006	1	20	Rear end cover. input shaft	404—0014	1
10	Oil dipstick	404—0025	1	21	Rear end cover, secondary shaft	404—0022	1
11	Handle , dip —stick	Q26—02	1	22	Gasket	404—0021	1
12	Gasket	404—0017	1	23	Gearbox housing	404—0003A	1

N°

Descripción

Codigo Parte

Cant.

N°

Descripción

Codigo Parte

Cant.

Gasket

404—0011

Rear Cover. output shaft

404—0016

Plug

ф12Q21—13

Washer

10GB93—76

Gearbox cover

404—0001

Hexagonal head bolt

M10 X 30GB21—76

Tapered pin, inside threaded at end

12X35GB118—76

M10 X 35GB 21—76

Seal ring

ф2 X ф16Q26—01

Oil sealing

ф50 X ф70 X 12HG4—692—67

Hexagonal Bolt

M8X12GB21—76

Double—row self-aligning
angular roller bearing

113610GB286—87

Spring washer

8GB93—76

Gasket

404—0012

Gasket

404—0004

Plug

ф7Q21—14

Top cover plate

404—0006

Rear end cover. input shaft

404—0014

Oil dipstick

404—0025

Rear end cover, secondary shaft

404—0022

Handle , dip —stick

Q26—02

Gasket

404—0021

Gasket

404—0017

Gearbox housing

404—0003A

N°	Descripción	Codigo Parte	Cant	N°	Descripción	Codigo Parte	Cant
24	Gasket	404—0002	1	35	bell housing	404—0031A	1
25	Thrust ring	404—0007	1	404—0036
26	Single—row radial short roller bearing (Outer race)	2209GB283—64	1	404—0037
27	Strainer plate	1204—0018	1	404—0038
28	Name plate	Q25—01—01	1	36	Cover	Q25—04	1
29	Rivet	2 X 4GB827—76	4		Cover of bell housing	1601—0018	1
30	Cover plate	404—0028	1	37	Washer	6GB97—76	2
31	Front cover	404—0019	1	38	Screw	M6 X 12GB67—76	2
32	Spring cover	E 404—0008	1	39	Screw	M6 X 15GB73—76	2
33	Front cover	404—0009	1	40	Gasket	404—0035	1
404—0032	41	Draining cover	404—0034	1
34	Oil sealing	ф45 X ф62 X 12HG4—692—67	1	42	Bolt	M8 X 20GB21—76	4

N°

Descripción

Codigo Parte

Cant

N°

Descripción

Codigo Parte

Cant

Gasket

404—0002

bell housing

404—0031A

Thrust ring

404—0007

404—0036

Single—row radial short
roller bearing (Outer race)

2209GB283—64

404—0037

Strainer plate

1204—0018

404—0038

Name plate

Q25—01—01

Cover

Q25—04

Rivet

2 X 4GB827—76

Cover of bell housing

1601—0018

Cover plate

404—0028

Washer

6GB97—76

Front cover

404—0019

Screw

M6 X 12GB67—76

Spring cover

E 404—0008

Screw

M6 X 15GB73—76

Front cover

404—0009

Gasket

404—0035

404—0032

Draining cover

404—0034

Oil sealing

ф45 X ф62 X 12HG4—692—67

Bolt

M8 X 20GB21—76

N°	Descripción	Codigo Parte	Cant.
1	Circlip	24 GB894—76	4
2	Washer	Q29—01	4
3	Rubber sleeve	Q26—O3	4
4	Drive bolt	Q29—02	4
5	Input.coupling	405—0001	1
5	input sleeve	405—0003	1
6	Drive bolt plate	Q29—03	4
7	Washer	12GB93—76	4
8	Bolt	M12 X 20GB21—76	4
9	Bolt	M8 X 16GB21—76	8
10	Washer	8GB93—76	8
11	Input coupling adapter	405—0002	1
12	internal gear ring	Q05—12—02X1	1
QO5—12—O2X2
13	toothed rubber block	Q26—06—02	16
14	external gear ring	Q05—12—01	1
15	Washer	12GB93—76	8
16	nut	M12 X 25GB30—76	8

N°

Descripción

Codigo Parte

Cant.

Circlip

24 GB894—76

Washer

Q29—01

Rubber sleeve

Q26—O3

Drive bolt

Q29—02

Input.coupling

405—0001

input sleeve

405—0003

Drive bolt plate

Q29—03

Washer

12GB93—76

Bolt

M12 X 20GB21—76

Bolt

M8 X 16GB21—76

Washer

8GB93—76

Input coupling adapter

405—0002

internal gear ring

Q05—12—02X1

QO5—12—O2X2

toothed rubber block

Q26—06—02

external gear ring

Q05—12—01

Washer

12GB93—76

nut

M12 X 25GB30—76

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Nut	M14 X1 5GB53—76	1	13	Oil pump driven gear	Q07—01—201	1
2	Transmission pinion ,oil pump	406—0005A	1	14	Oil pump drive gear	QO7—01—103	1
3	Oring	ф5 X ф100Q26—01	3	15	snap ring	16GB895—76	2
4	Dowel pin	10ga X 55GB119—76	2	16	Drive shaft, Oil pump	Q07—01—101	1
5	Bolt	M8 X 55GB21—76	4	17	Oil pump upper housing	Q07—01—02	1
6	Washer	8GB93—76	2	18	Gasket	1206—0009A	1
7	Locking plate	Q07—01—01	1	19	Connecting plate	1206—0001C	1
8	Oil pump lower housing	Q07—01—04	1	20	Washer	8GB97—76	4
9	Oil pump housing	QO7—01—03	1	21	Bolt	M8 X 20GB21—76	4
10	Bushing	Q07—01—05	4	22	Bolt	M10 X 30GB21—76	6
11	Driven shaft, Oil pump	Q07—01—202	1	23	Washer	10GB93—76	6
12	Key	4 X 14GB1096-—72	2

N°

Descripción

Codigo Parte

Cant.

N°

Descripción

Codigo Parte

Cant.

Nut

M14 X1 5GB53—76

Oil pump driven gear

Q07—01—201

Transmission pinion ,oil pump

406—0005A

Oil pump drive gear

QO7—01—103

Oring

ф5 X ф100Q26—01

snap ring

16GB895—76

Dowel pin

10ga X 55GB119—76

Drive shaft, Oil pump

Q07—01—101

Bolt

M8 X 55GB21—76

Oil pump upper housing

Q07—01—02

Washer

8GB93—76

Gasket

1206—0009A

Locking plate

Q07—01—01

Connecting plate

1206—0001C

Oil pump lower housing

Q07—01—04

Washer

8GB97—76

Oil pump housing

QO7—01—03

Bolt

M8 X 20GB21—76

Bushing

Q07—01—05

Bolt

M10 X 30GB21—76

Driven shaft, Oil pump

Q07—01—202

Washer

10GB93—76

Key

4 X 14GB1096-—72

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Drain plug	Q21—15	1	17	Steel ball	ф13 GB308—77	1
2	Copper washer	ф22 Q20—03	1	18	Connecting plate	135—07B—001	1
3	Nut	M14 X 1.5GB923—76	1	19	Plug	ф12 Q21—13	1
4	Copper washer	ф14 Q20—03	1	20	Bolt	M8 X 35 GB21—76	3
5	Filter case	Q21—11A	1	21	Washer	8 GB93—76	8
6	Spring	Q09—01A—02	1	22	Plug	ф7 Q21—14	1
7	Filter	mF36A—12—200	1	23	Oring	ф16 X 2.4 GB1235—76	1
8	Steel ball	ф10 GB308—77	1	24	Gasket	135—07—007	1
9	Spring	0.8 X 9 X 35.8JB272—6O	1	25	Bolt	M8 X 30GB21—76	5
10	Filter spindle	Q09—01A—03	1	26	Hydraulic system	Q06—01A—00	1
11	Pin	2.5 X 16GB119—76	1	27	Bolt	M10 X 30GB21—76
12	Oring	ф5 X ф90 Q26—01	1	28	Washer	10 GB93—76
13	Plug	M20 X1. 5 Q20—01	1	29	Gasket	Q06—01A—12
14	Copper washer	ф20 Q20—03	1	30	Copper washer	ф14 Q20—03
15	Washer	8 GB97—76	1	31	Press. gauge assembly	Q06—01A—200
16	Spring	2X13 X 60 JB272—60	1	32	Bolt	M14 X 1.5 X 3OQ21—19

N°

Descripción

Codigo Parte

Cant.

N°

Descripción

Codigo Parte

Cant.

Drain plug

Q21—15

Steel ball

ф13 GB308—77

Copper washer

ф22 Q20—03

Connecting plate

135—07B—001

Nut

M14 X 1.5GB923—76

Plug

ф12 Q21—13

Copper washer

ф14 Q20—03

Bolt

M8 X 35 GB21—76

Filter case

Q21—11A

Washer

8 GB93—76

Spring

Q09—01A—02

Plug

ф7 Q21—14

Filter

mF36A—12—200

Oring

ф16 X 2.4 GB1235—76

Steel ball

ф10 GB308—77

Gasket

135—07—007

Spring

0.8 X 9 X 35.8JB272—6O

Bolt

M8 X 30GB21—76

Filter spindle

Q09—01A—03

Hydraulic system

Q06—01A—00

2.5 X 16GB119—76

Bolt

M10 X 30GB21—76

Oring

ф5 X ф90 Q26—01

Washer

10 GB93—76

Plug

M20 X1. 5 Q20—01

Gasket

Q06—01A—12

Copper washer

ф20 Q20—03

Copper washer

ф14 Q20—03

Washer

8 GB97—76

Press. gauge assembly

Q06—01A—200

Spring

2X13 X 60 JB272—60

Bolt

M14 X 1.5 X 3OQ21—19

N°	Descripción	Codigo Parte	Cant.
1	Gasket	408—0012	1
2	Cooler base plate	1208—0007B	1
3	Rear flange	1208—0006	1
4	Water cooling pipe	408—0005	120
5	Spacer disc	1208—0003	4
6	radiator	1208—0004	3
7	Flange	408—0002	1
8	Gasket	408—0008	1
9	Cooler cover	408—0001	1
10	Washer	10GB93—76	7
11	Bolt	M10 X 55GB21—76	7
12	Copper washer	8Q20—O3	1
13	Plug	M8 X 1Q20—01	1
14	Ring	408—0011	1
15	Gasket	408—0009	2

Productos

Cajas Marinas

Repuestos Agricolas

Caja Marina 40A

Ver Despieces

Descripción

Ficha Técnica

Galería de Repuestos

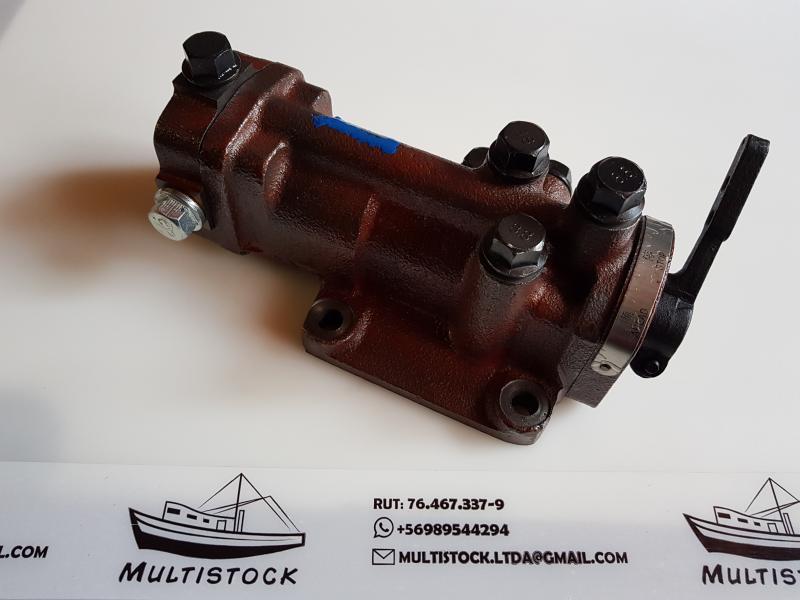

COMANDO HIDRÁULICO

BUJE CÓNICO

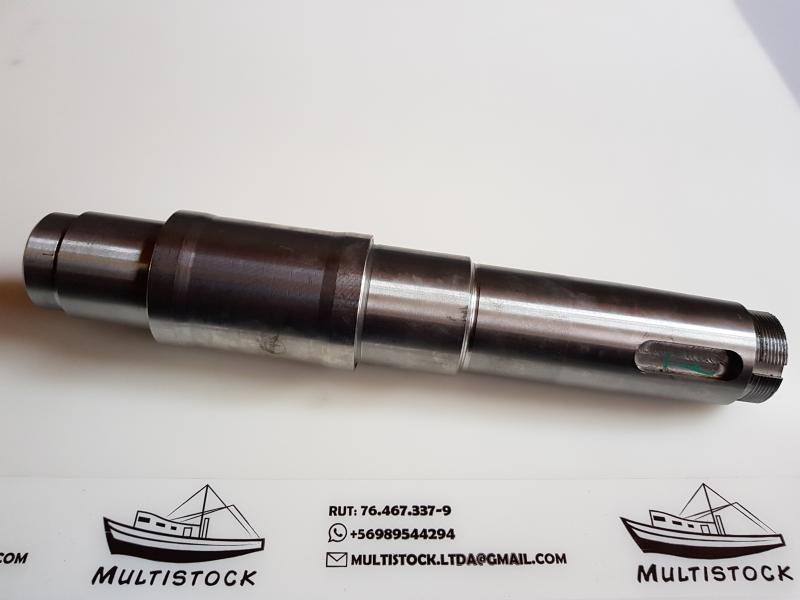

EJE SECUNDARIO

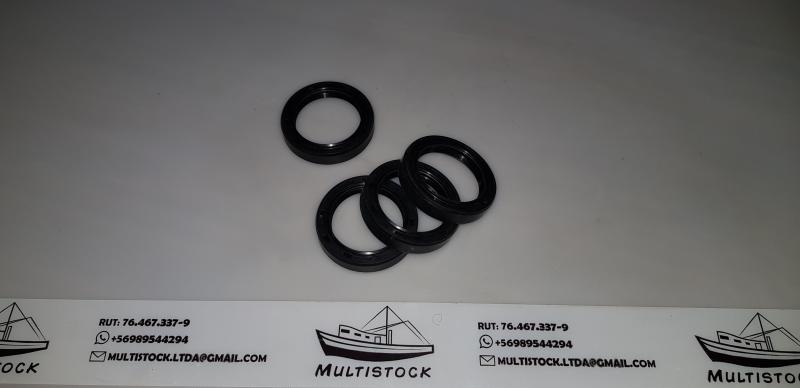

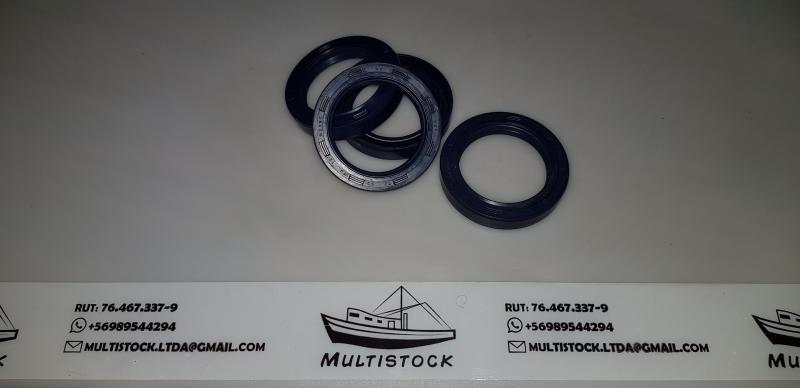

RETEN SALIDA

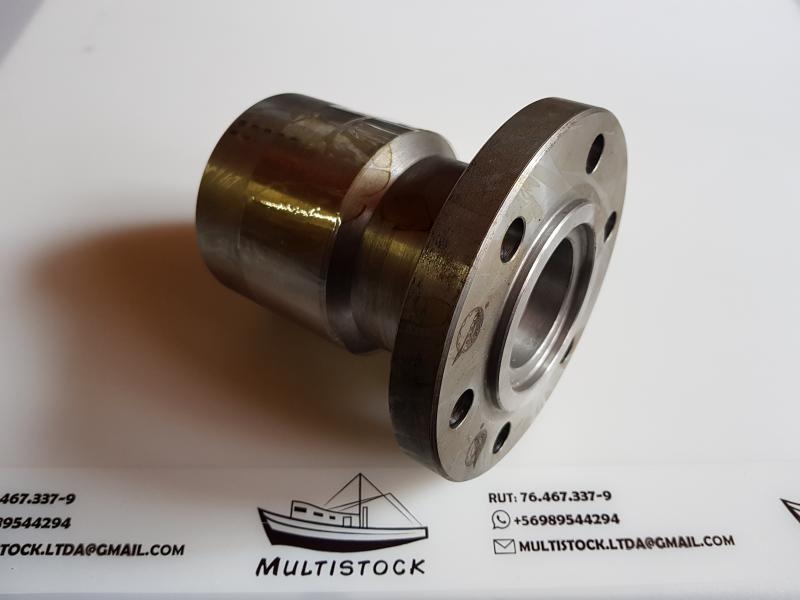

COPLON SALIDA

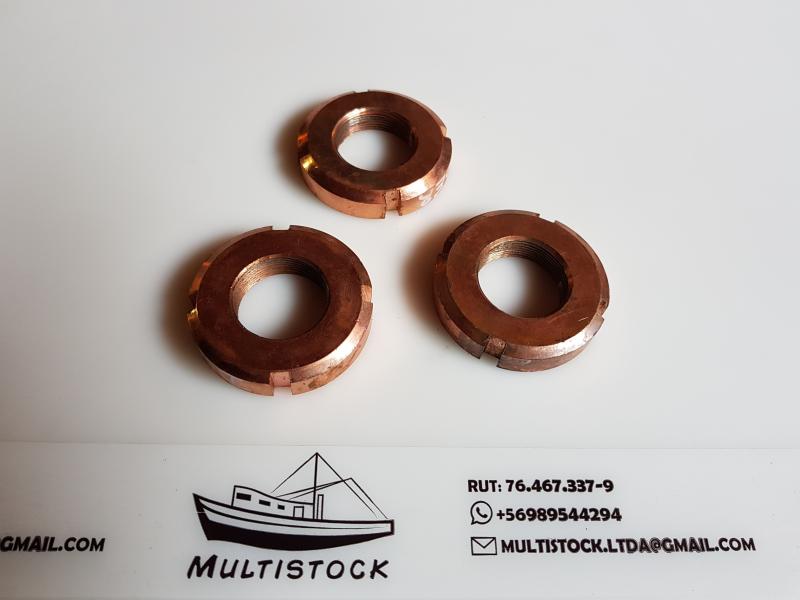

TUERCA HILO DERECHO

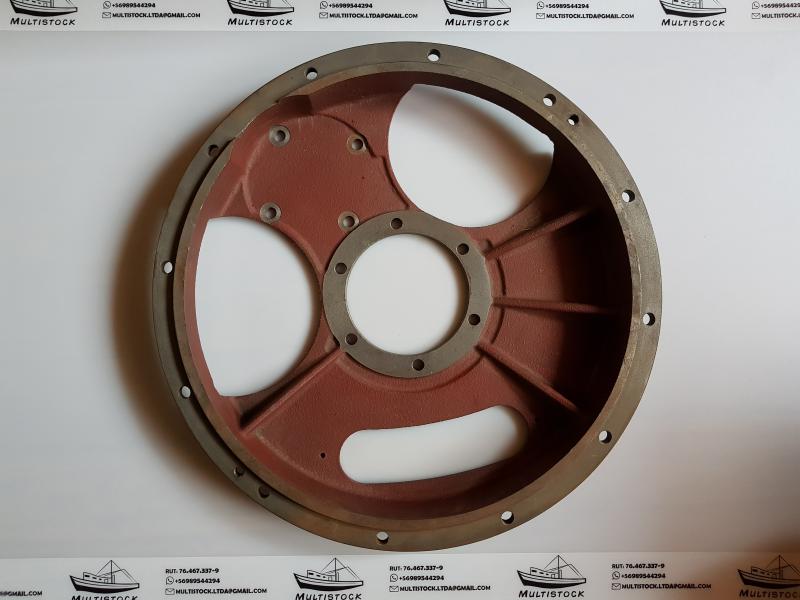

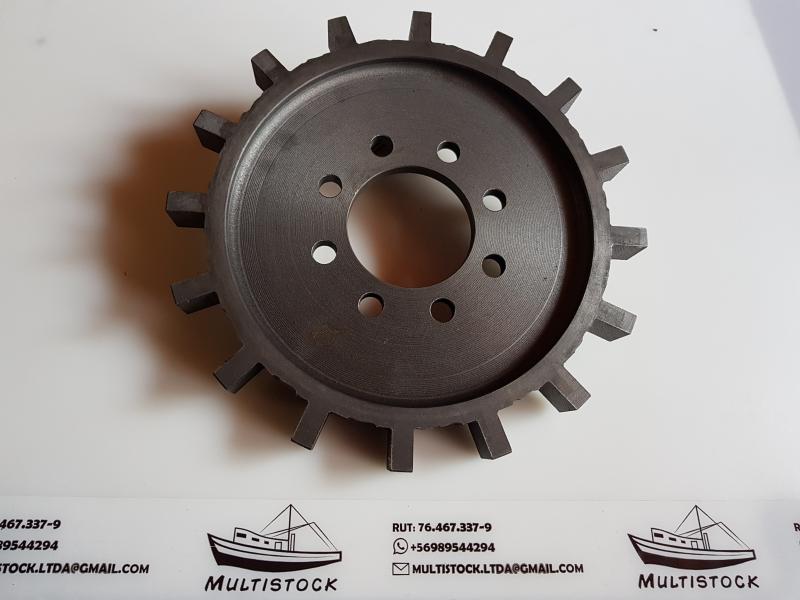

SOPORTE VOLANTE

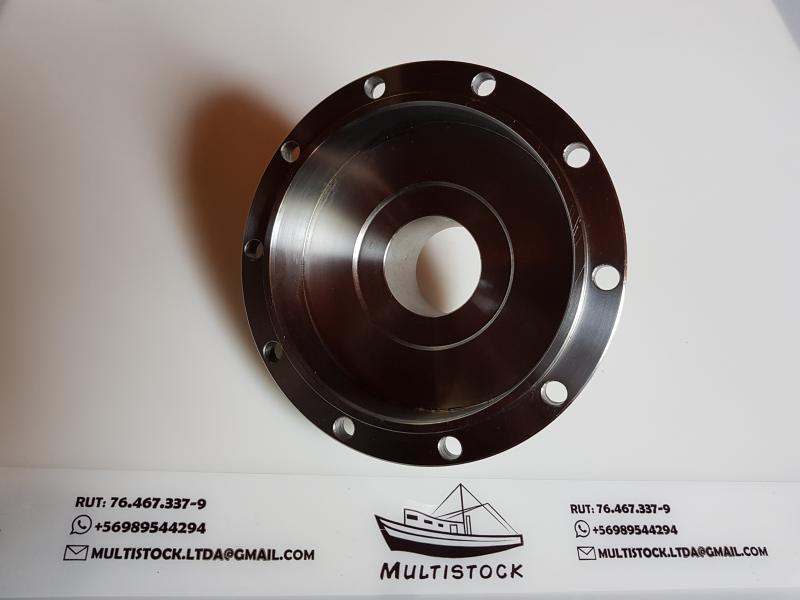

CUBIERTA TRASERA EJE PRINCIPAL

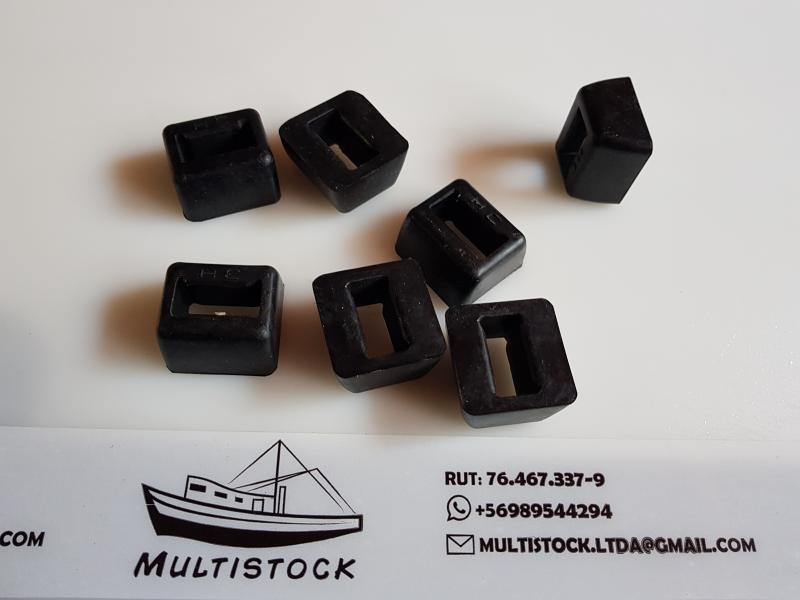

TACOS DE GOMA GRANDE

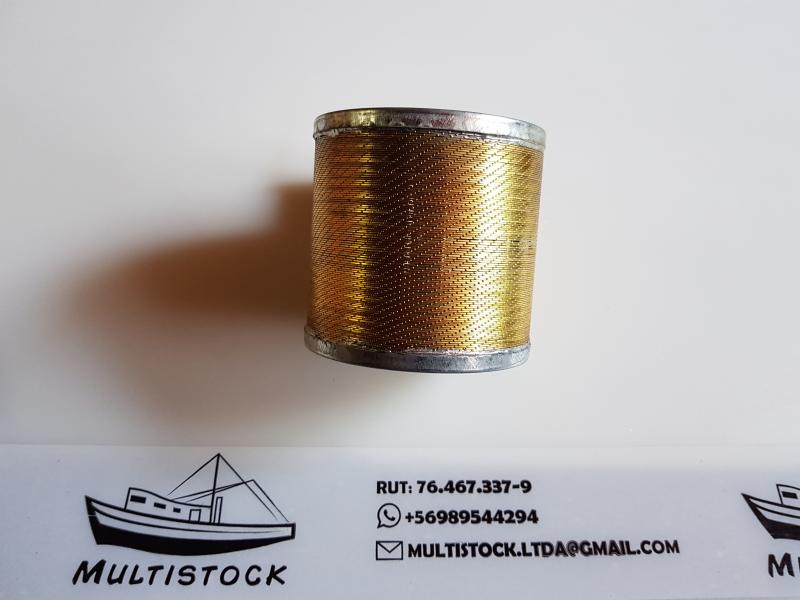

FILTRO COMANDO HIDRÁULICO

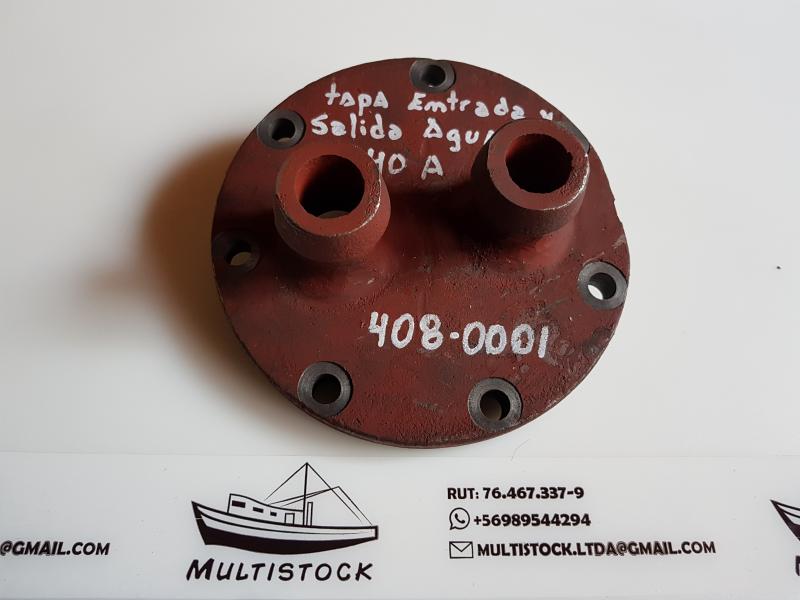

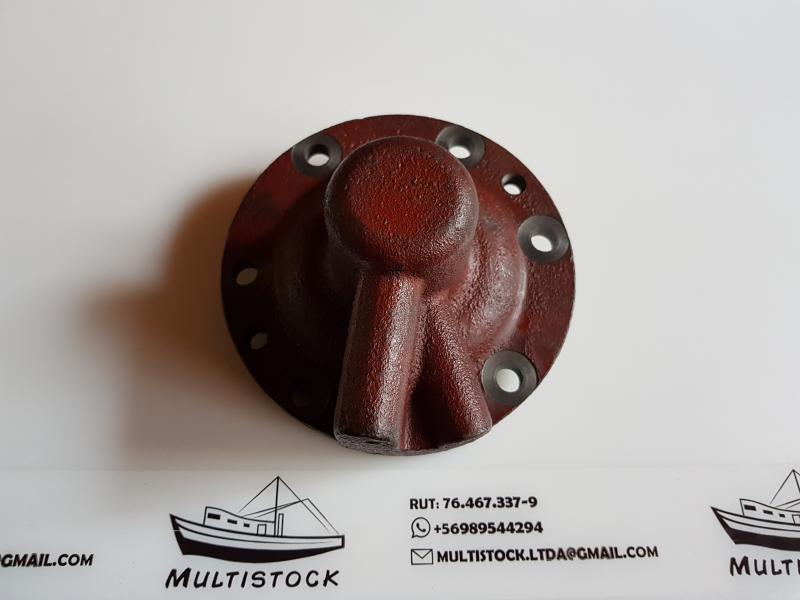

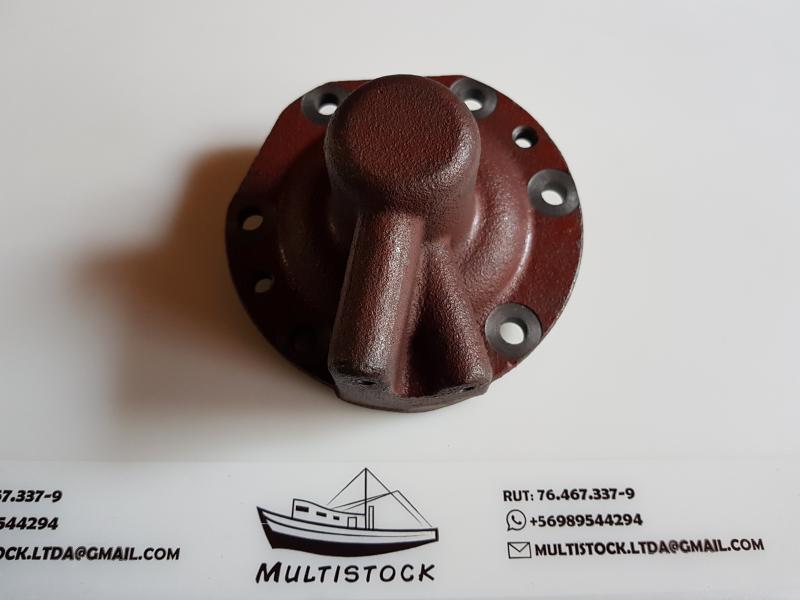

TAPA ENTRADA Y SALIDA AGUA

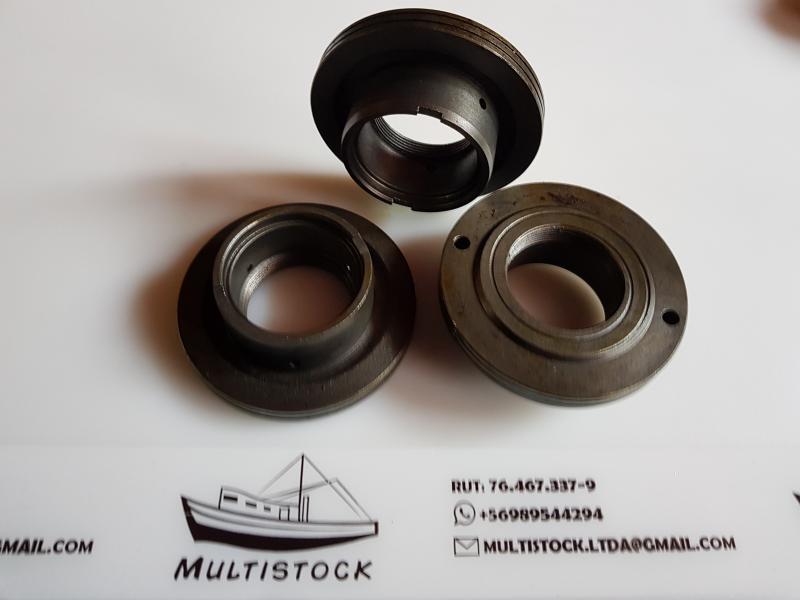

TAPÓN ACEITE IZQUIERDO

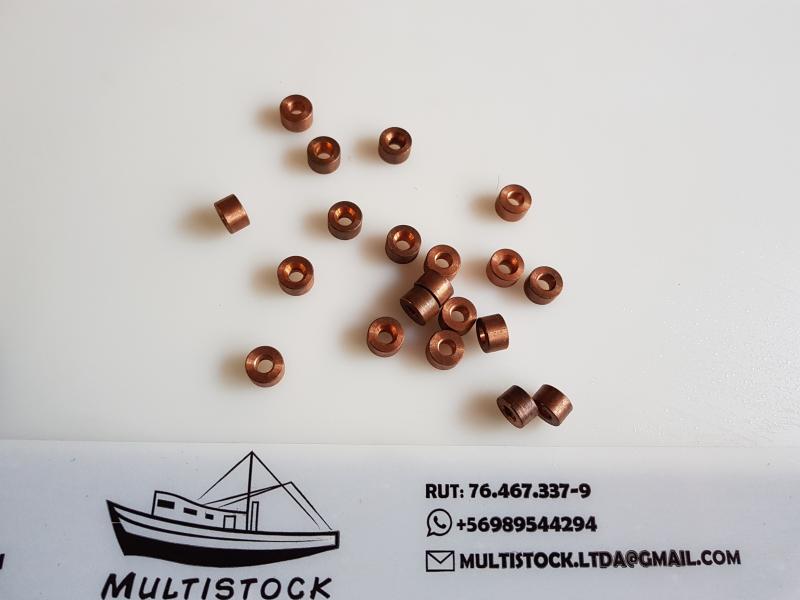

BUJE BRONCE RELOJ PRESIÓN

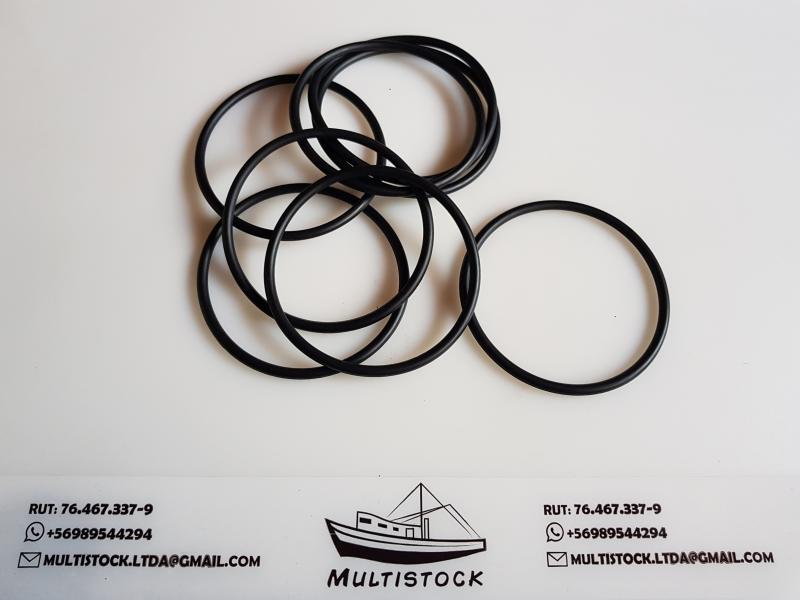

ORING BOMBA ACEITE

SAE N°3

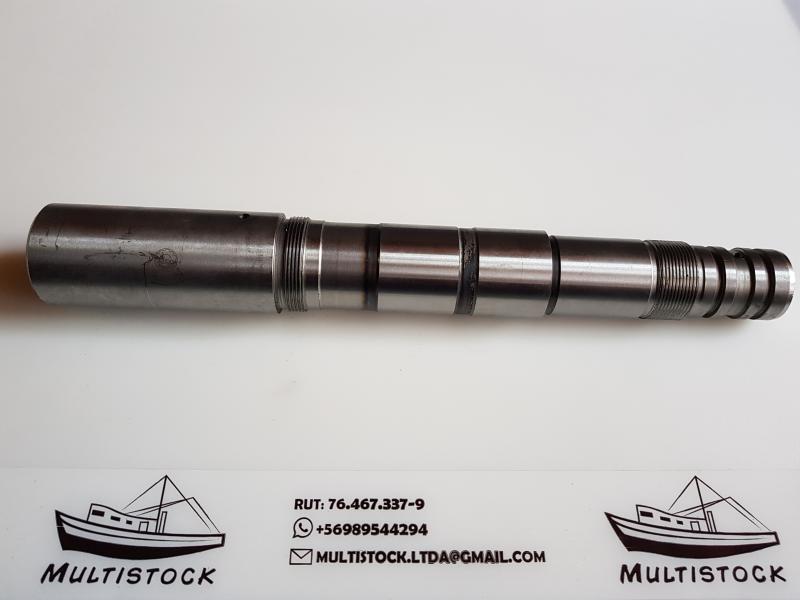

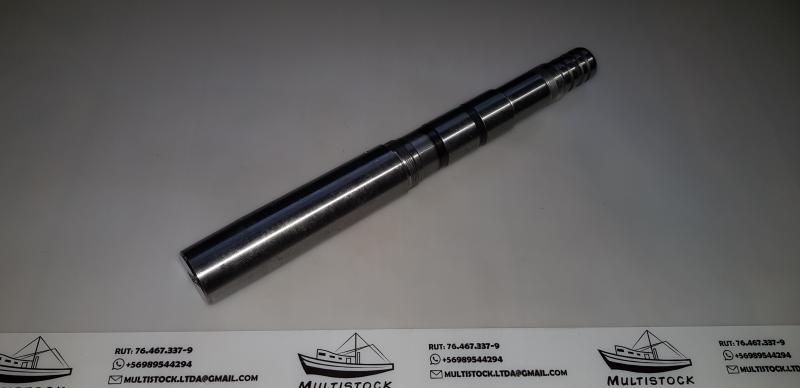

EJE PRINCIPAL

EJE SALIDA

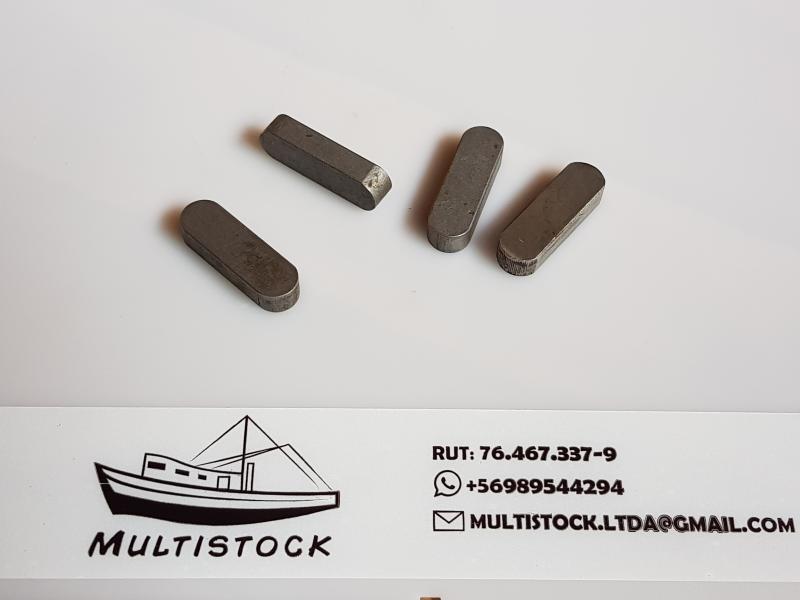

CHAVETA EJE SALIDA

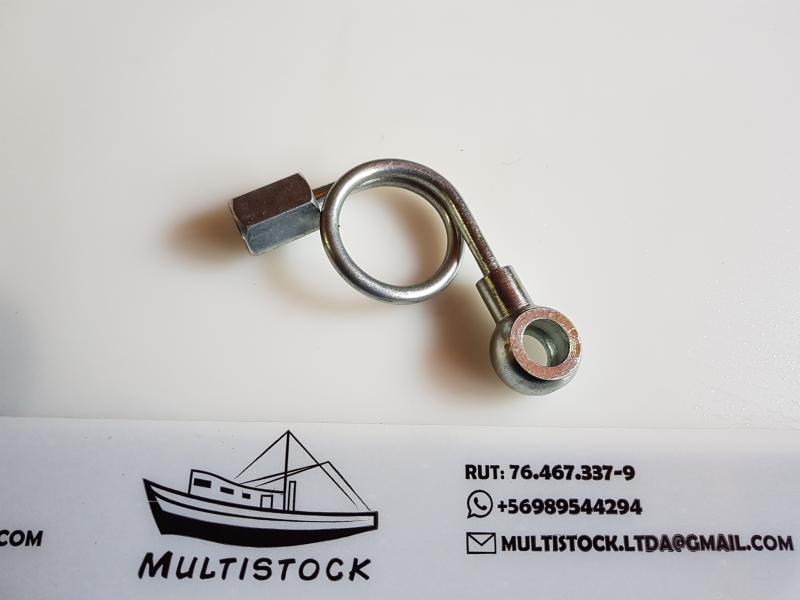

CAÑERÍA RELOJ

VOLANTE ALUMINIO

CUBIERTA TRASERA EJE SECUNDARIO

TAPÓN ACEITE DERECHO

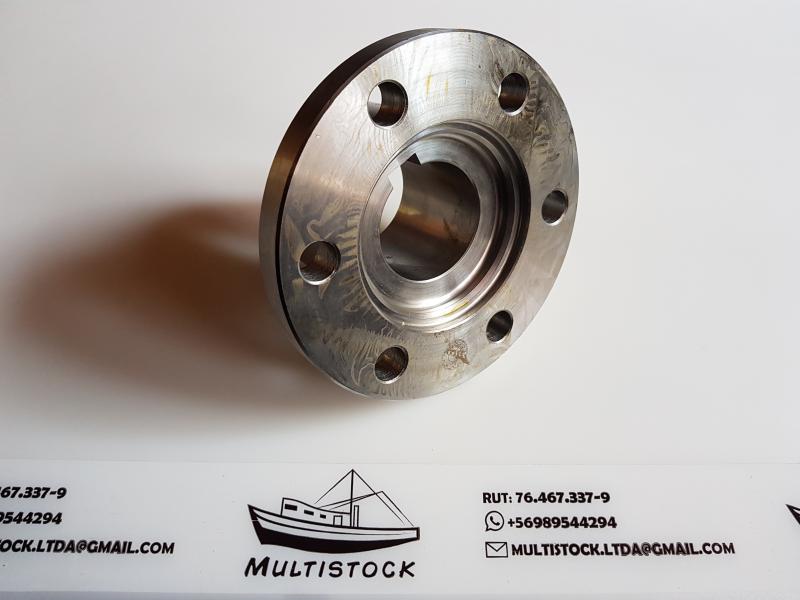

ACOPLE COPLON SALIDA

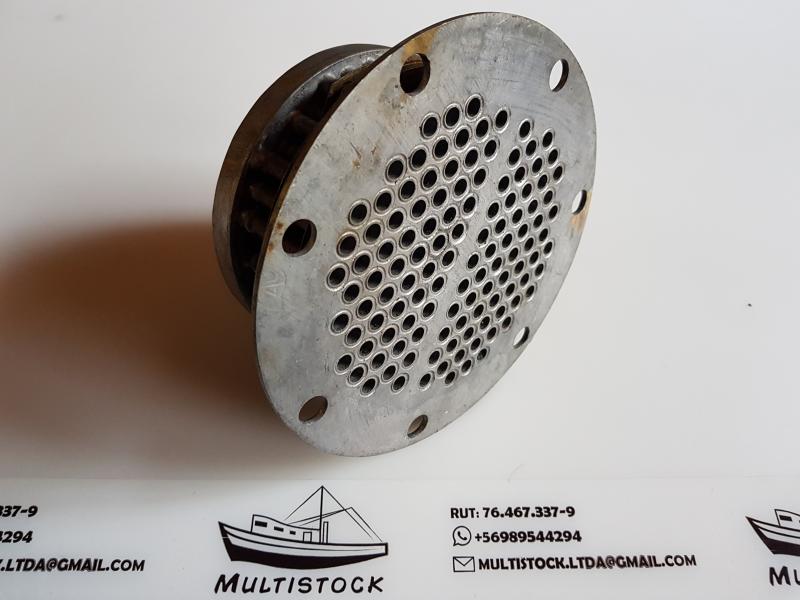

ENFRIADOR ACEITE

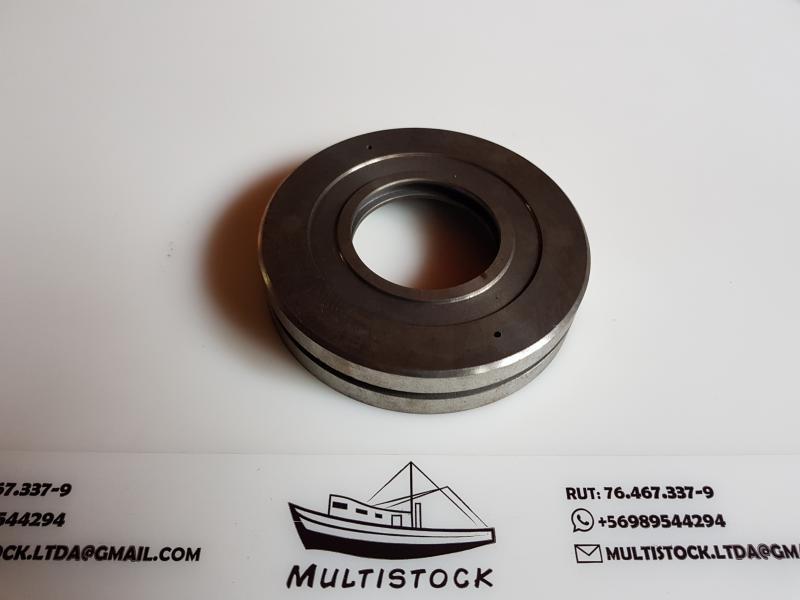

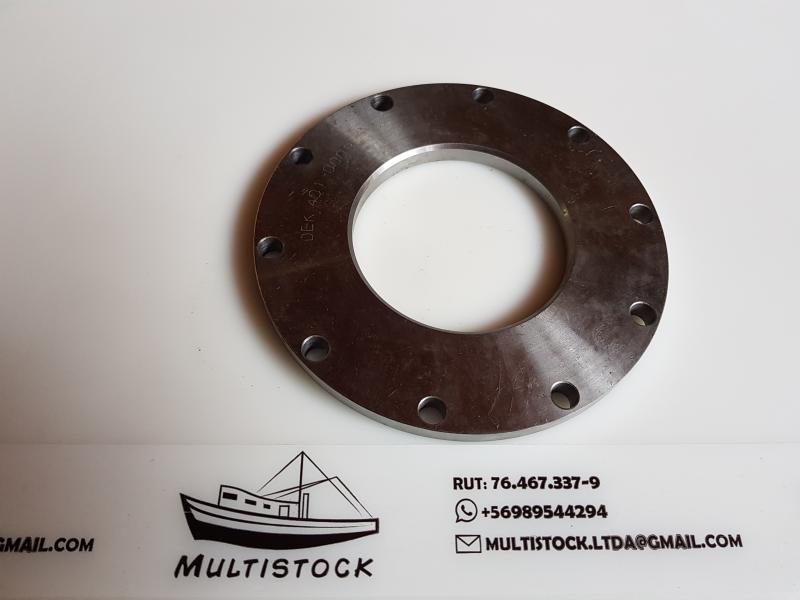

PLACA EMPUJE

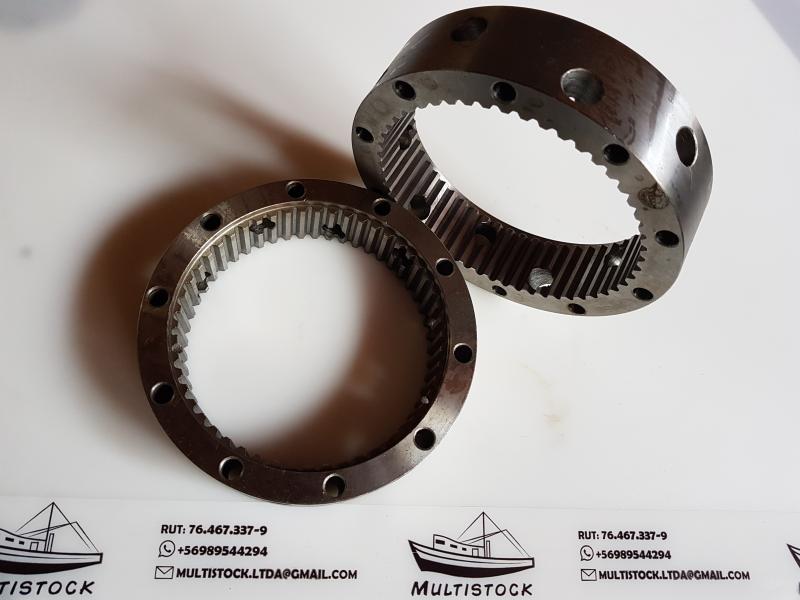

ANILLO EJE TORCIONAL

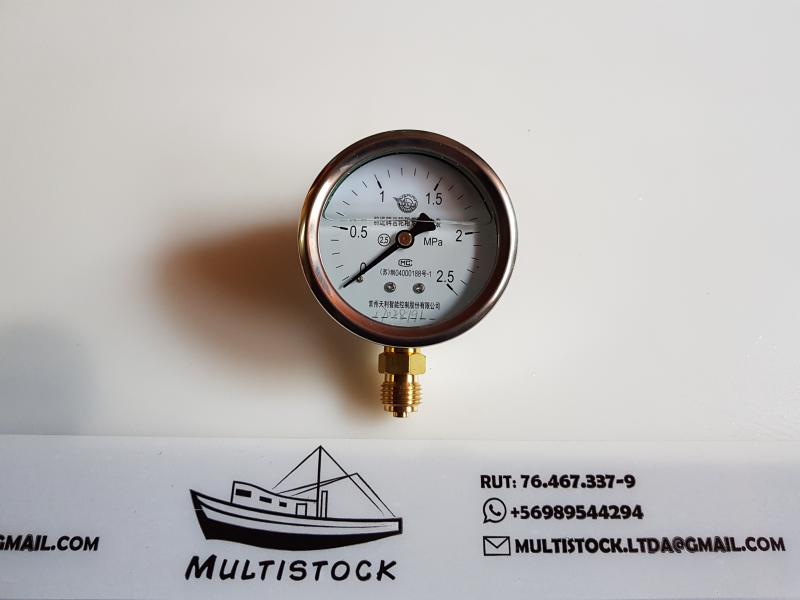

RELOJ PRESIÓN ACEITE

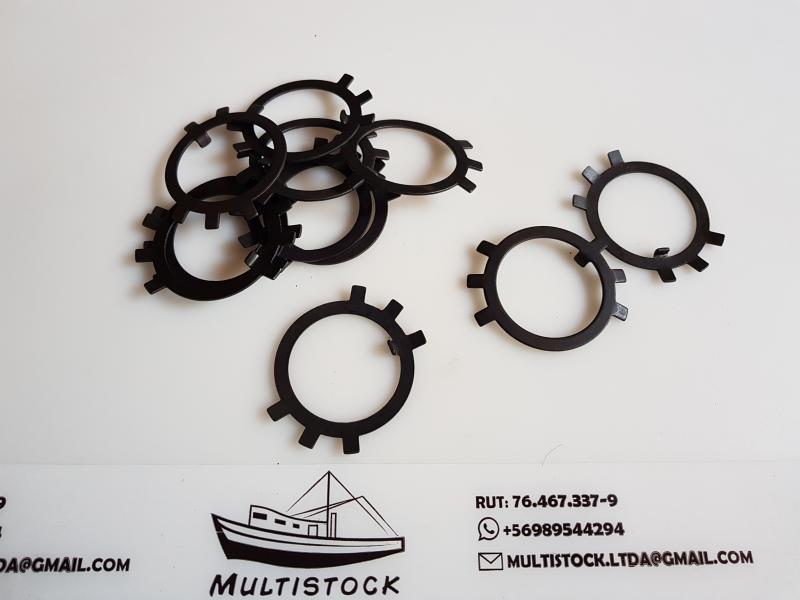

GOLILLA DENTADA 42 MM

RETEN ENTRADA

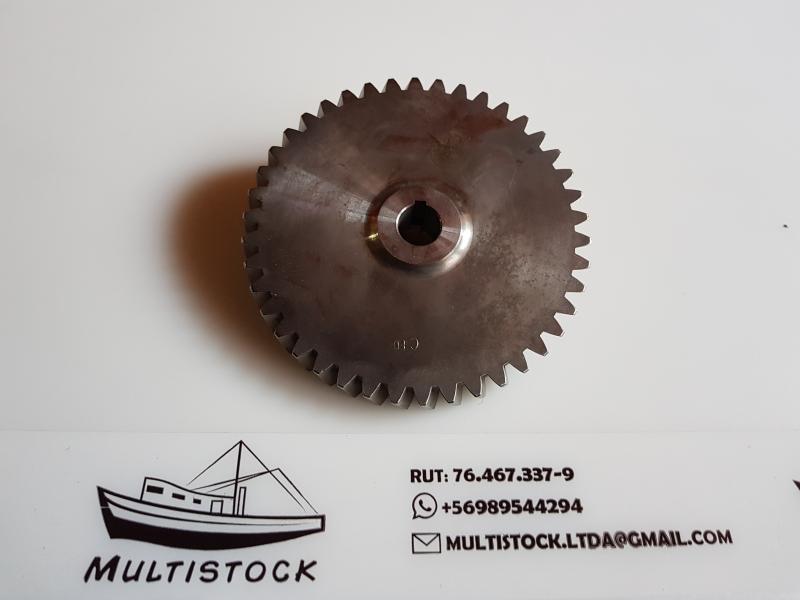

ENGRANAJE BOMBA ACEITE

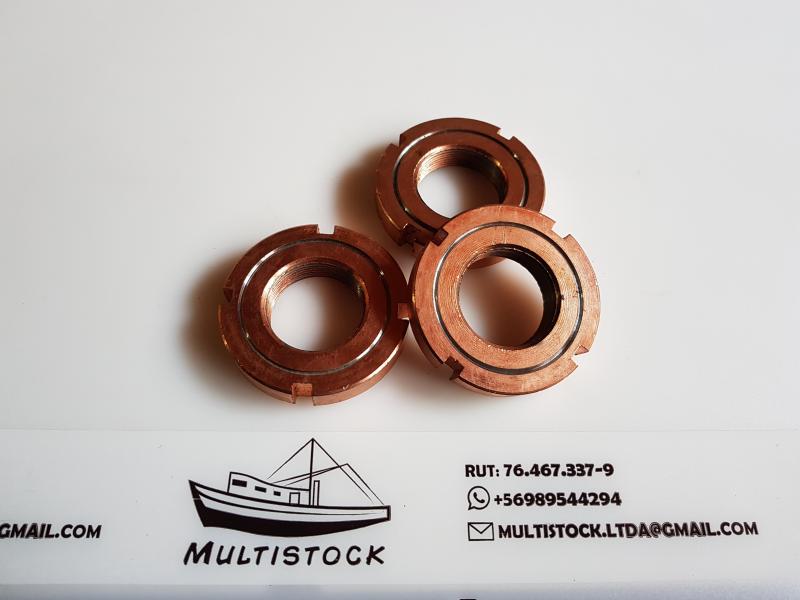

TUERCA HILO IZQUIERDO

TAMBOR DISCOS

TAPA VACIADO ACEITE

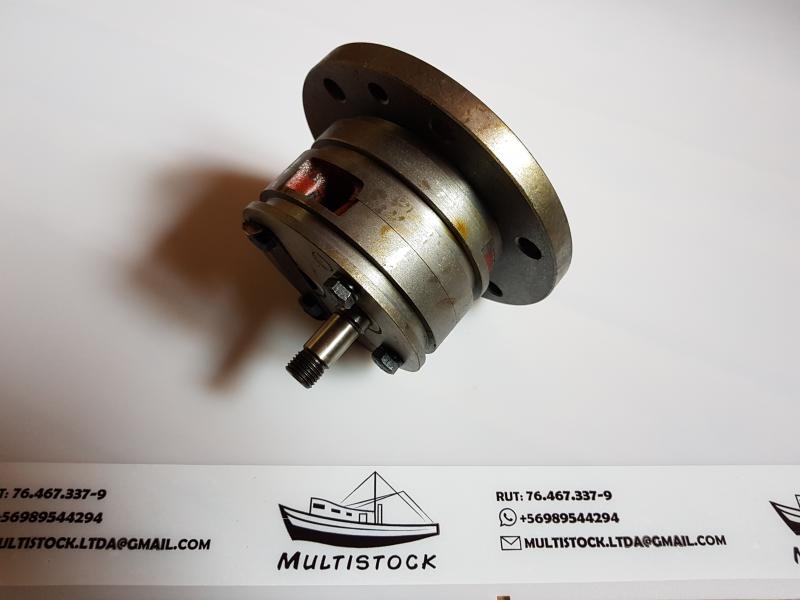

BOMBA ACEITE

CUERPO DEL CILINDRO

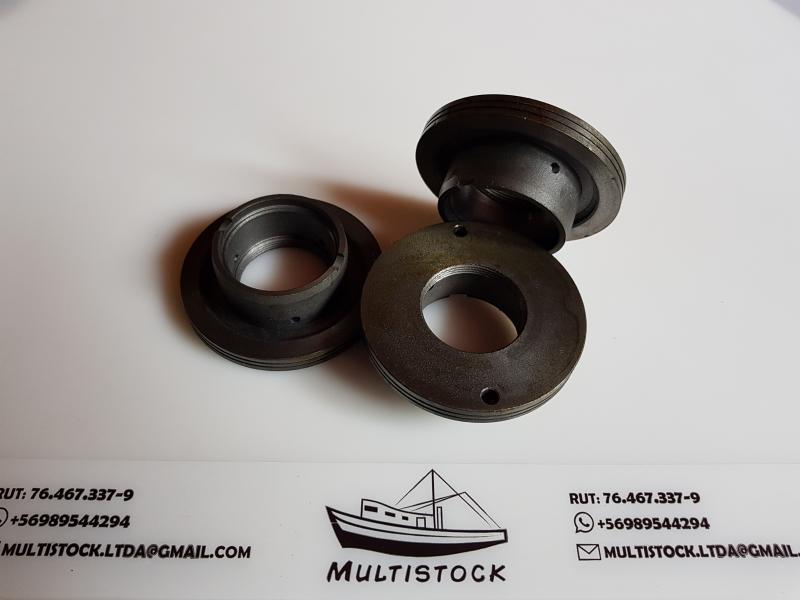

PISTÓN HIDRÁULICO

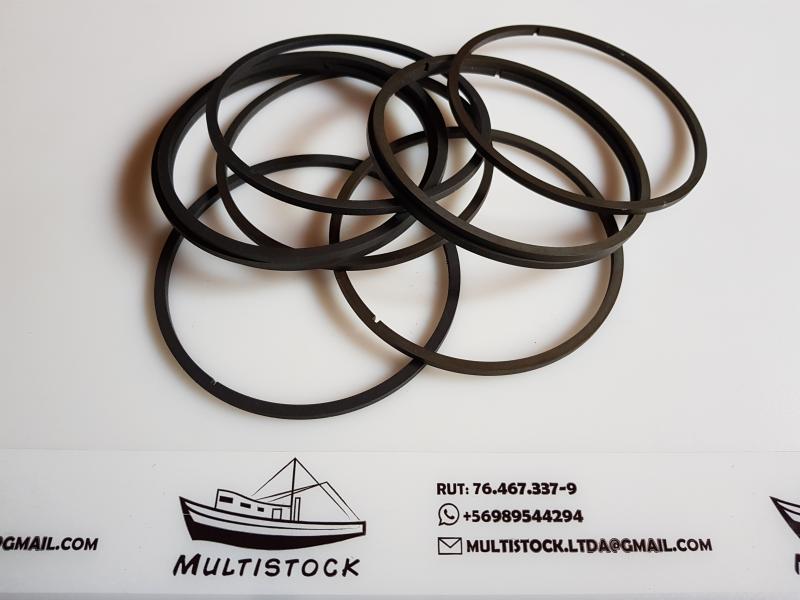

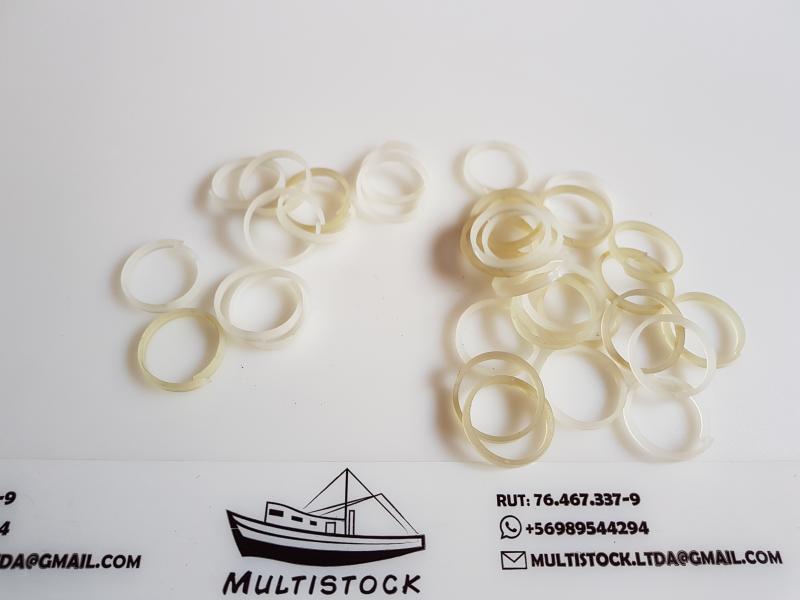

ANILLO PISTÓN

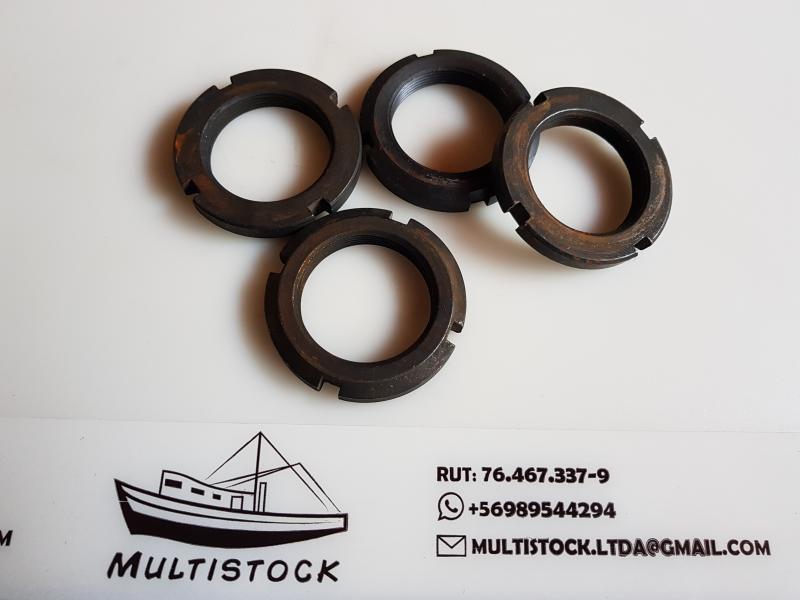

TUERCA DENTADA 42 MM

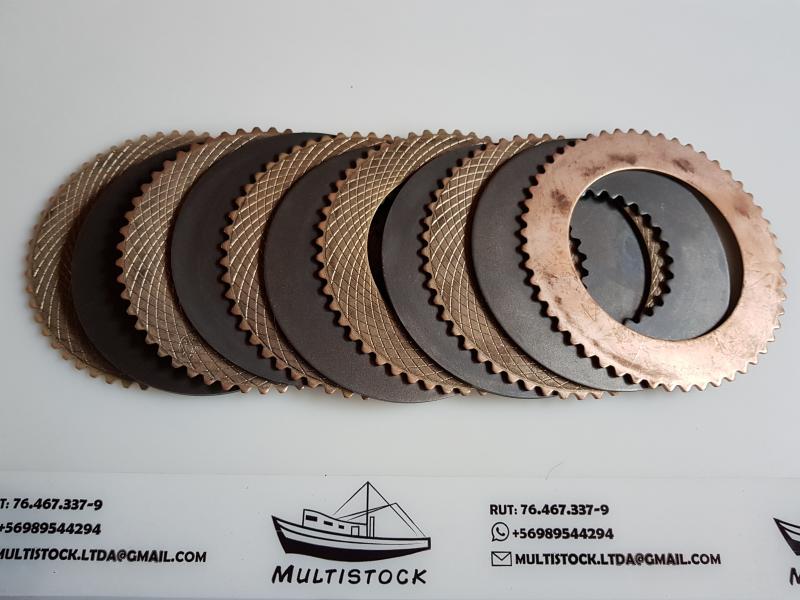

JUEGO DISCOS
