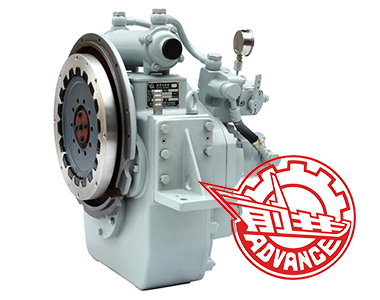

Caja Marina 120B

Ver Despieces

Conjunto de eje de entrada
Conjunto de eje secundario

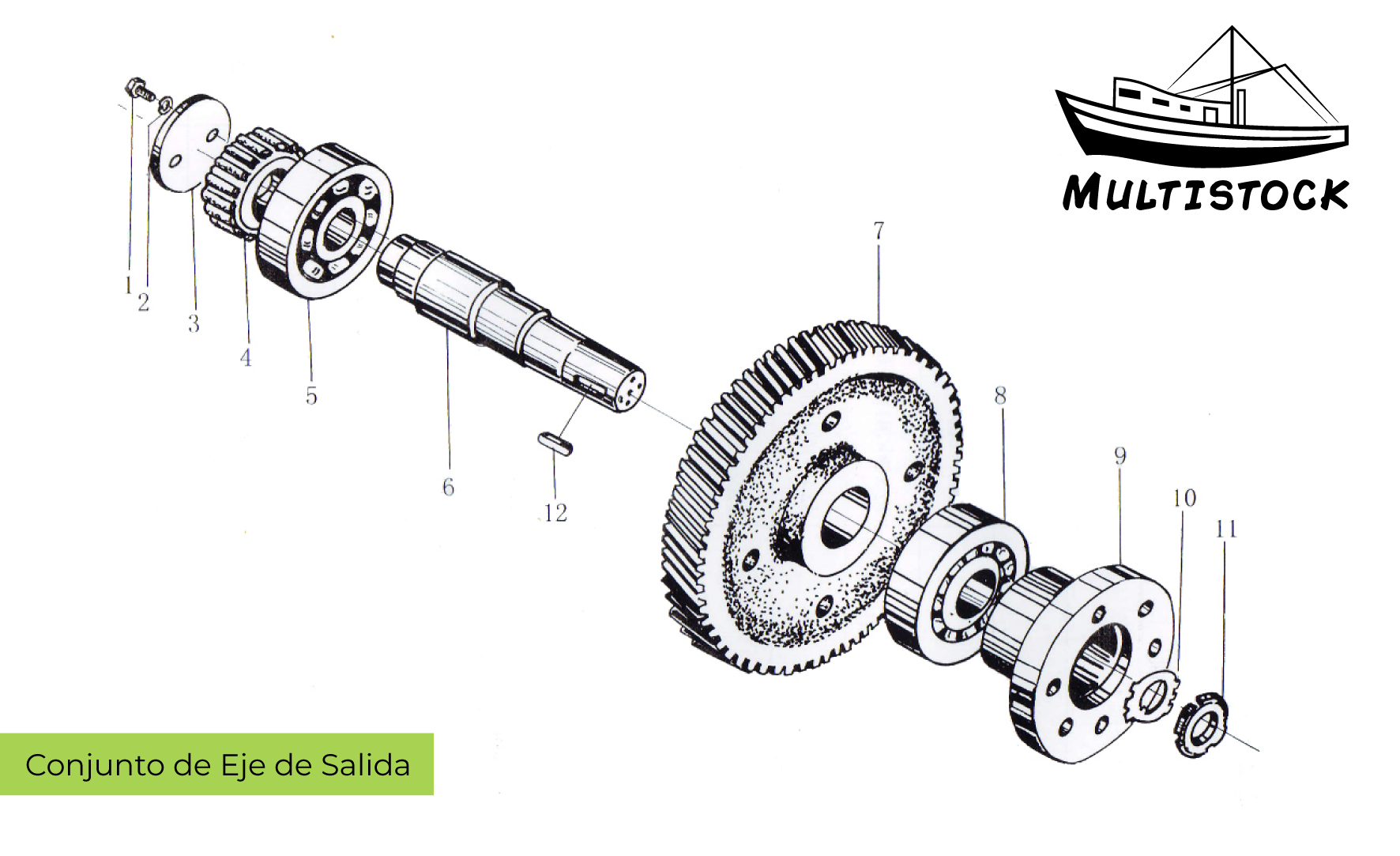

Conjunto eje de salida
Caja de engranajes
Acoplamiento de entrada
Conjunto de bomba de Aceite
Sistema de control hidráulico

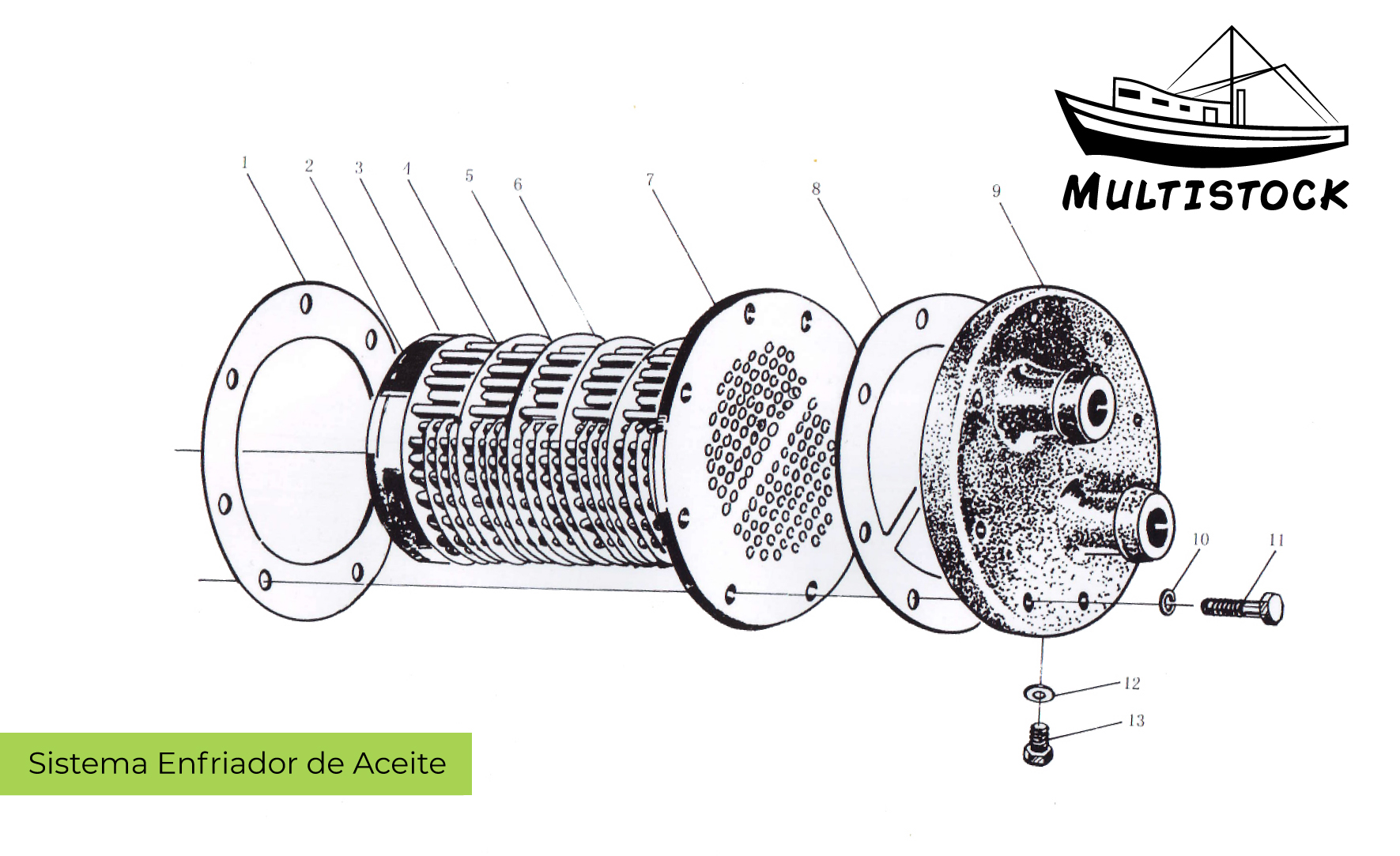

Sistema enfriador de aceite

Descripción

La Caja de Cambios Marina 120B posee funciones de reducción de velocidad, adelante y agarre de popa y empuje de la hélice. Está diseñado con transmisión en una sola etapa y desplazamiento vertical, con un volumen pequeño, peso ligero y fácil de desmontar y volver a montar y mantener.

Ficha Técnica

Input speed	750-1800r/min			Center distance	190mm
Reduction ratio	2.03、2.81	trans. capacity	0.088kw/r/min	L×W×H	605×744×770mm
Reduction ratio	3.73	trans. capacity	0.044kw/r/min	Net weight	400kg
Control way	Push-and-pull flexible shaft, electrically			Flywheel	6135Ca、4120、SAE14
Rated thrust	25KN			Bell housing	6135Ca、4120、SAE1

Galería de Repuestos

Bomba de Agua

Piñones

Repuestos

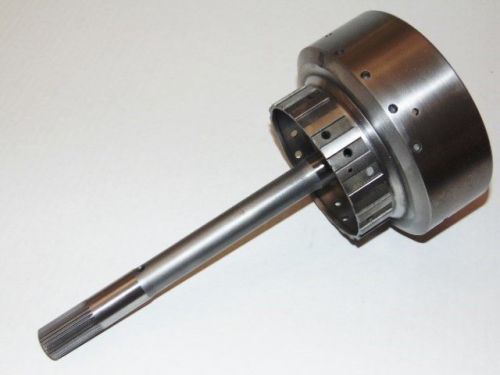

Eje de Entrada

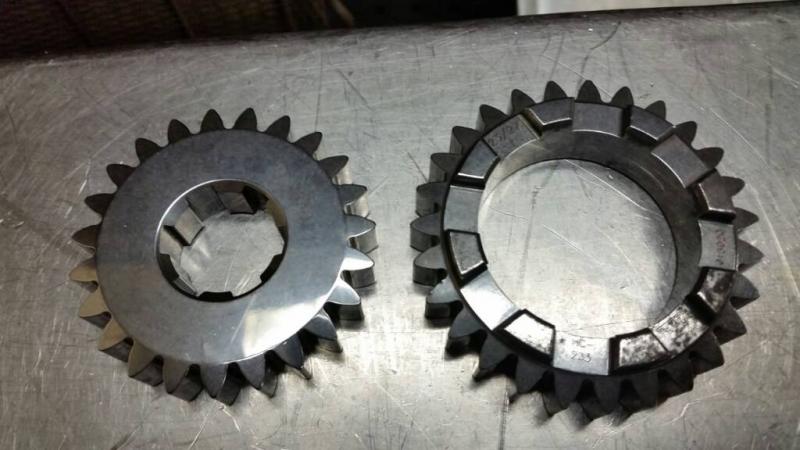

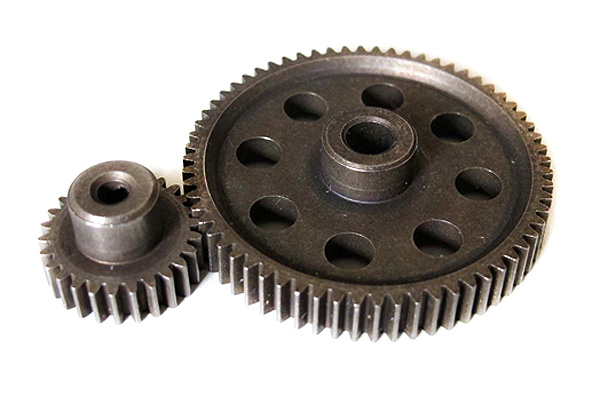

Engranajes

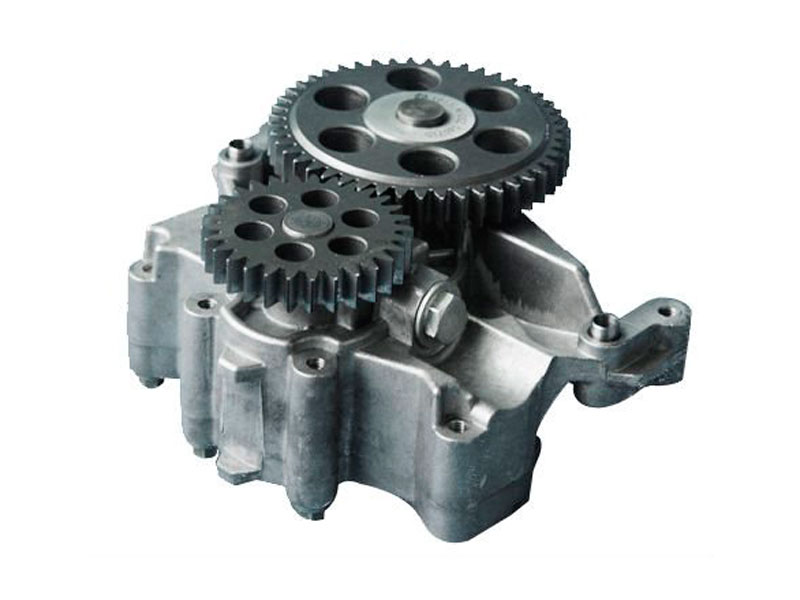

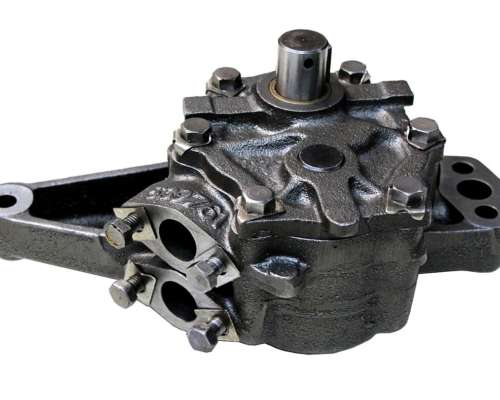

Bomba de Aceite

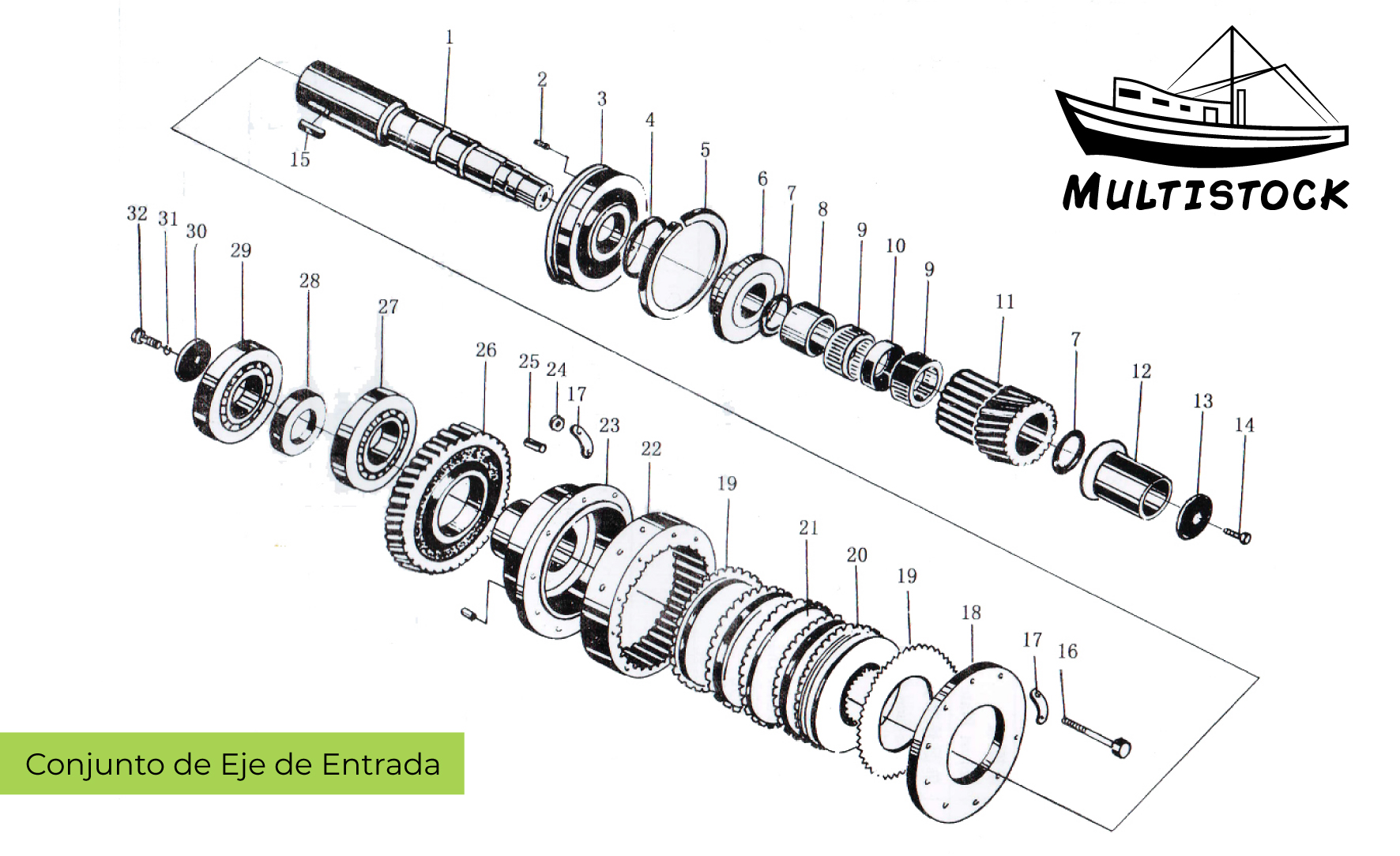

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Input shaft	1201—0022B	1	17	Clutch Retainer	1201 —0024A	8
2	Locking Screw	M8 x 8GB73-66	1	18	Thrust Plate	1201—0009	1
3	Working Piston	1201—0005	1	19	Single-face Clutch Disc	1201—0018	2
4	Sealing Ring	ф5 x 75Q/HC5—66	1	20	Inner Clutch Disc	1201—0019	6
5	Oil seal	1201 —0025 A	1	21	Outer Clutch Disc	1201—0007	5
6	Return Plug	1201—0004	1	22	Clutch Housing	1201—0006A	1
7	Thrust Ring	1201—0016	2	23	Cylinder Body	1201—0003A	1
8	Distributor Bush	1201—0008	1	24	Nut	AM8GB51—66	8
9	Needle Bearing	9243/55	2	25	Pin	8ga x 22GB119—66	2
10	Spacer	1201—0011	1	26	Trans. Gear	1201—0002	1
11	Driving Gear	1201—2012	1	26	Trans. Gear	ZT1201—0002	1
11	Driving Gear	1201—3012		27	Ball Bearing	IA 46118	1
12	Connecting Sleeve	1201—0013A	1	28	Sleeve	1201—0001	1
13	Rear Plate	1201—0014A	1	29	Roller Bearing	IA 3612	1
14	Bolt	M8 x 16GB21—66	4	30	Front Plate	1201—0023	1
15	Flat Key	A18 x 6SJB113—66	1	31	Washer	10GB93—66	2
16	Bolt	M8 X 85GB21—66	8	32	Bolt	M10 x 22GB21—66	2

Ver / Ocultar Codigos

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Secondary Shaft	1202—0001	1	15	Bolt	M8 x 85GB21—66	8
2	Locking Screw	M8 x 8GB73—66	1	16	Clutch Retainer	120 1 —0024A	8
3	Working Piston	1201—0005	1	17	Thrust Plate	1201—0009	1
4	Sealing Ring	ф5 x ф75Q/HG5—66	1	18	Single-face Clutch Disc	1201—0018	2
5	Oil Seal	1201 —0025 A	1	19	Inner Clutch Disc	1201—0019	6
6	Return Plug with Left Hand Thread	1202—0004	1	20	Outer Clutch Disc	1201—0007	5
7	Distributor Bush	1201 —0008	1	21	Clutch Housing	1201—0006A	1
8	Needle Bearing	9243/55	2	22	Cylinder Body	1201—0003A	1
9	Spacer	1201—0011	1	23	Nut	AM8GB51—66	8
10	Driving Gear	1201—2012	1	24	Dowel Pin	8ga x 22GB119—66	2
10	Driving Gear	1201—3012	1	25	Trans . Gear	1202—0002	1
11	Thrust Ring	1201—0016	1	25	Trans . Gear	ZT1202—0002	1
12	Connecting Sleeve	1201-0013A	1	26	Spacer	1202—0003	1
13	Rear Plate	1201—0014A	1	27	Roller Bearing	3612	1
14	Bolt	M8 x 16GB21—66	4	28	Plug	1202—0005	1

Ver / Ocultar Codigos

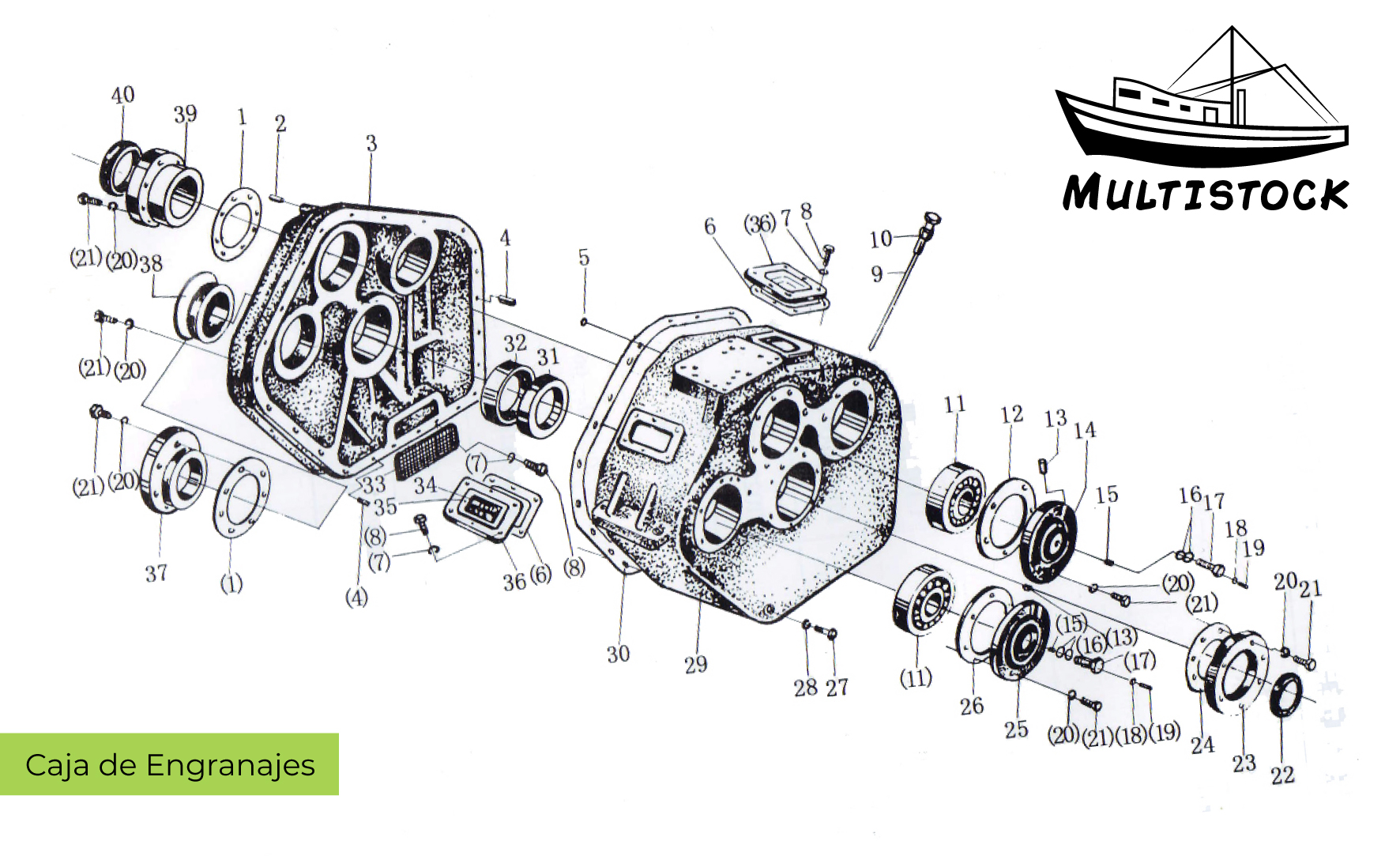

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Gasket	1204—0021	2	11	Roller Bearing	IA3614	2
2	Plug	C1016—73	1	12	Gasket	1204—0012	1
3	Housing Cover	1204—0001	1	13	Plug	CT016—73	4
4	Tapered Pin ( Inside Threaded)	12 x 30GB118—66	2	14	Rear End Cover	1204—0014	1
5	Sealing Ring	ф2 x ф16Q/HC5—66	5	15	Locking Screw	M8 x 8GB73—66	2
6	Gasket	1204—0004	2	16	Sealing Ring	1204—0032A	4
7	Washer	8GB93—66	14	17	Inlet Plug	1204—0015	2
8	Bolt	M8 x 25GB21—66	14	18	Spring Washer	60893—66	2
9	Oil Dipstick	1204—0025	1	19	Screw	BM6 X 12GB67—66	2
10	Handle	CT018—73	1	20	Spring Washer	10GB93—66	53

Ver / Ocultar Cod. 1 al 20

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
21	Bolt	M10 x 28GB21—66	53	31	Thrust Ring	1204—0007	1
22	Cased Seal	ф70 x ф90 x 12HG4-692-67	1	32	Roller Bearing (Outer Ring)	IA 2313	1
23	End Cover	1204—0016B	1	33	Strainer	1204—0018	1
24	Gasket	1204—0017	1	34	Name Plate	CT001—73	1
25	Rear End Cover	1204—0022	1	35	Rivet	2 x 4G3827—67	4
26	Gasket	1204—0023	1	36	Cover Plate	135—04—009	2
27	Draining Plug	CT019—73	1	37	Bearing Cover	1204—0019	1
28	Copper Washer	22Q/HC3—66	1	38	Spring Cover	1204—0008	1
29	Housing	1204—0003	1	39	Bearing Cover	1204—0009B	1
30	Gasket	1204—0002	1	40	Cased Seal	PDф60 x ф80 x 12HC4—692—67	1

Ver / Ocultar Cod. 21 al 40

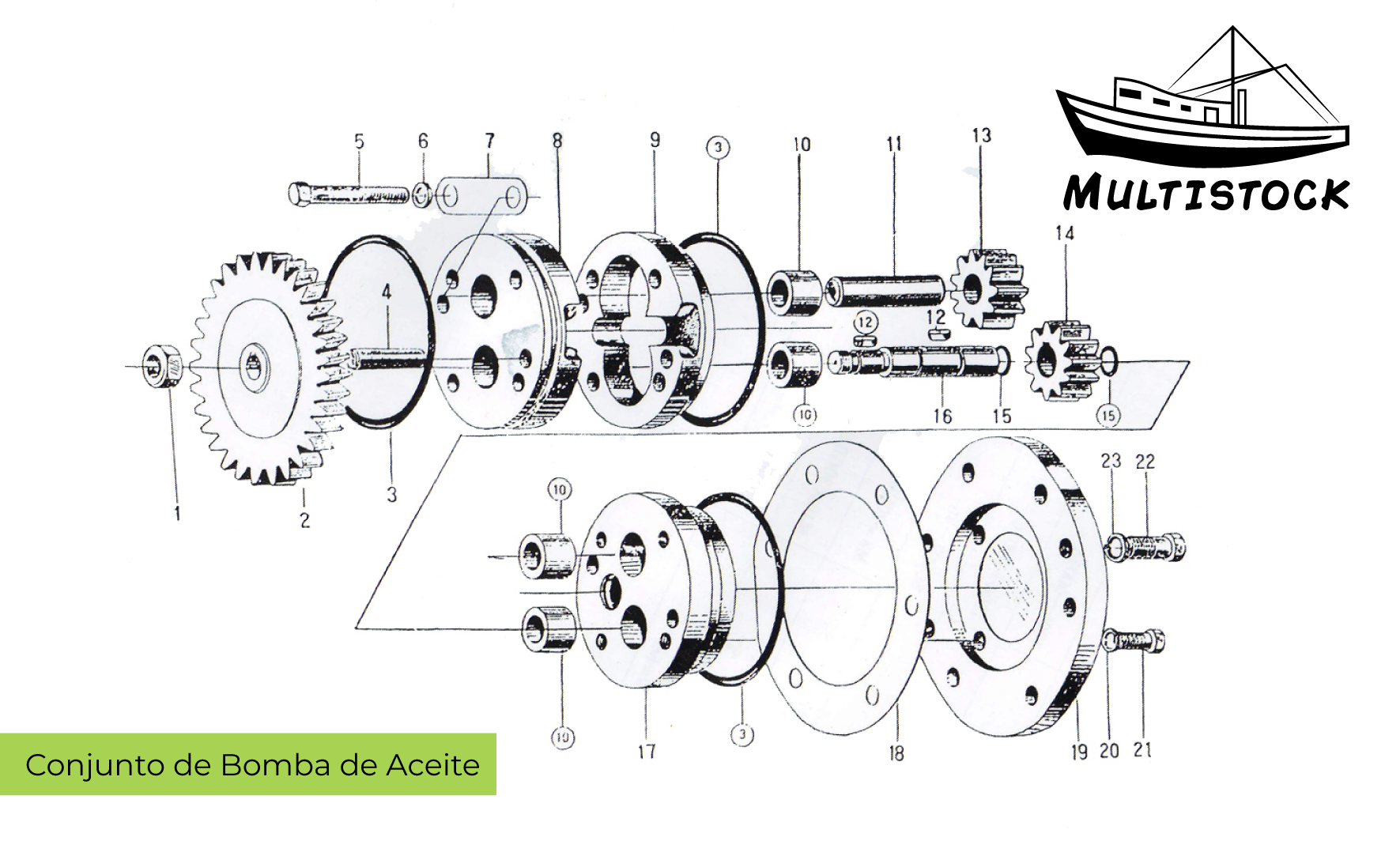

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Nut	M14 x 1.5GB53—76	1	13	Pump Driven Gear	Q07—01-201	1
2	Pump Trans . Gear	1206—0005	1	14	Pump Driving Gear	Q07—01—103	1
3	Oring	ф5 x ф100Q26—01	3	15	Snap Ring	16GB895—76	2
4	Dowel Pin	10ga x 55GB119—76	2	16	Pump Driving Shaft	Q07—01—101	1
5	Bolt	M8 x 55GB21—76	4	17	Upper Pump Housing	Q07—-01—02	1
6	Spring Washer	80393—76	2	18	Gasket	1206—0009A	1
7	Retainer	Q07—01—01	1	19	Connecting Plate	1206—0001C	1
8	Lower Pump Housing	Q07—01—04	1	20	Washer	8GB97—76	4
9	Pump Housing	QO7—O 1—03	1	21	Bolt	M8 x 200GB1—76	4
10	Bearing	QO7—01—05	4	22	Bolt	M10 x 30GB21—76	6
11	Pump Driven Shaft	Q07—01—202	1	23	Spring Washer	10GB93—76	6
12	Flat Key	4 x 14GB1096—72	2

Ver / Ocultar Codigos

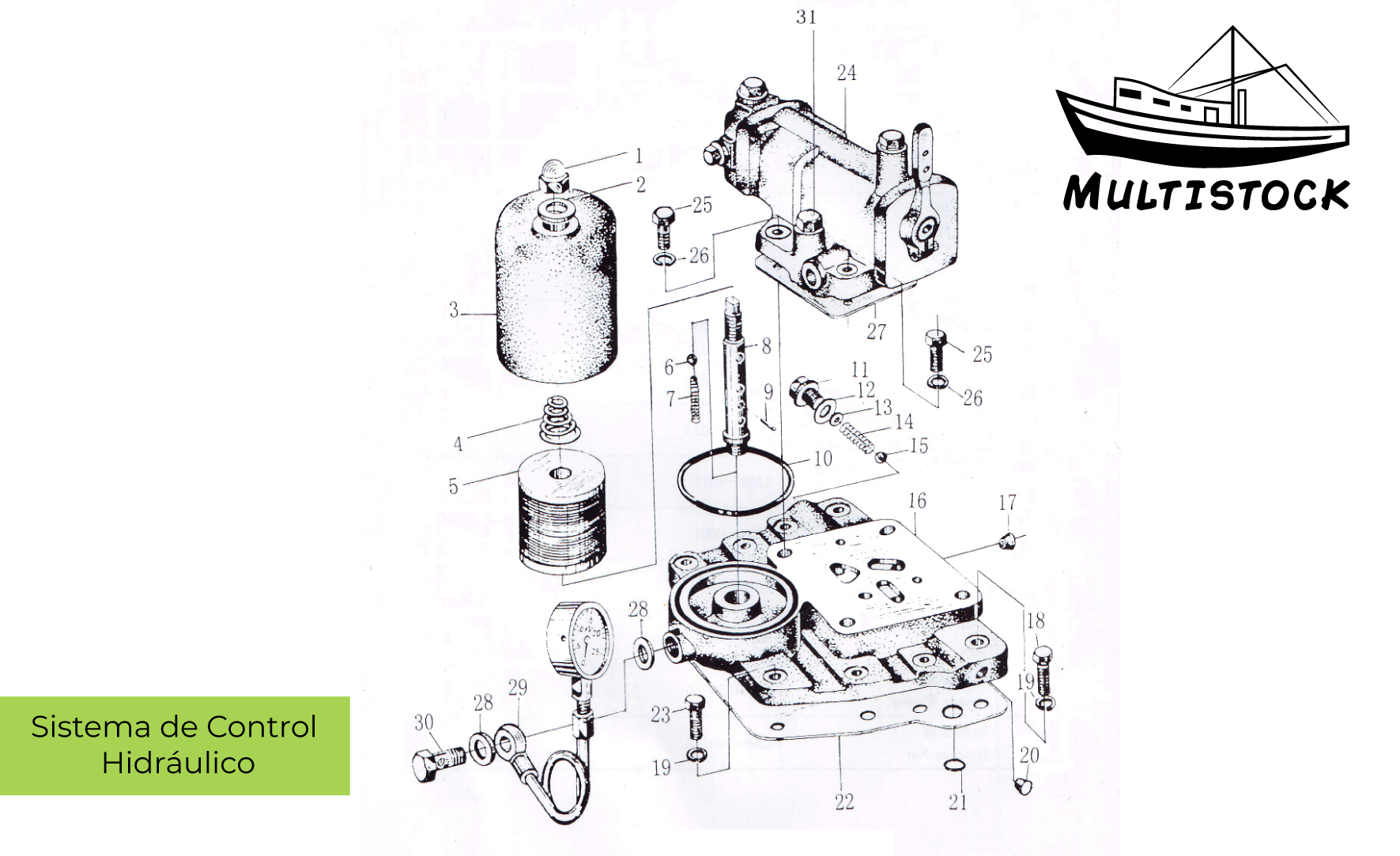

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Nut	M14 x 1.5GB923—76	1	17	Plug	ф12Q21—13	1
2	Copper Washer	14Q20—03	1	18	Bolt	M8 X 35GB21—76	3
3	фlter Housing	Q21—11	1	19	Washer	8GB93—76	8
4	Tapered Spring	Q09—01A—02	1	20	Plug	ф7Q21—14	1
5	фlter	wr36A—12-200	1	21	Oring	ф16 x 2.4GB1235—76	1
6	Steel Ball	ф11GB308—77	1	22	Gasket	135—07—007	1
7	Spring	0.8 x 9 x 35 . 8JB272—60	1	23	Bolt	M8 x 30GB21—76	5
8	фlter Spindle	Q09—01A—03	1	24	Hydraulic Control System	Q06-01A—00	1
9	Pin	2.5 x 16GB119—76	1	25	Bolt	M10 x 30GB21—76
10	Oring	5 x ф90Q26—01	1	26	Washer	10GB93—76
11	Plug	M20 x 1.5Q20—01	1	27	Gasket	Q06—01A—12
12	Copper Washer	20Q20—03	1	28	Copper Washer	14Q20—03
13	Washer	8GB97—76	1	29	Oil Pipe Assembly	Q06—01A—200
14	Spring	l .2 x 12 X 64JB272—60	1	30	Bolt	M14 X 1.5 X 30Q21—19
15	Steel Ball	ф13GB308—77	1	31	Plug	Q20—01M14 x1.5
16	Connecting Plate	135—07B—001	1

Ver / Ocultar Codigos
