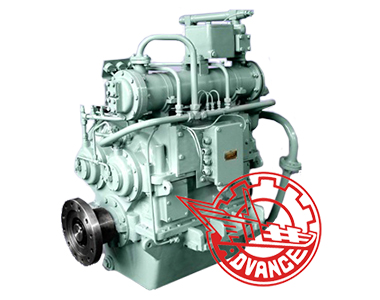

Caja Marina Caja Marina GWC-32

Ver Despieces

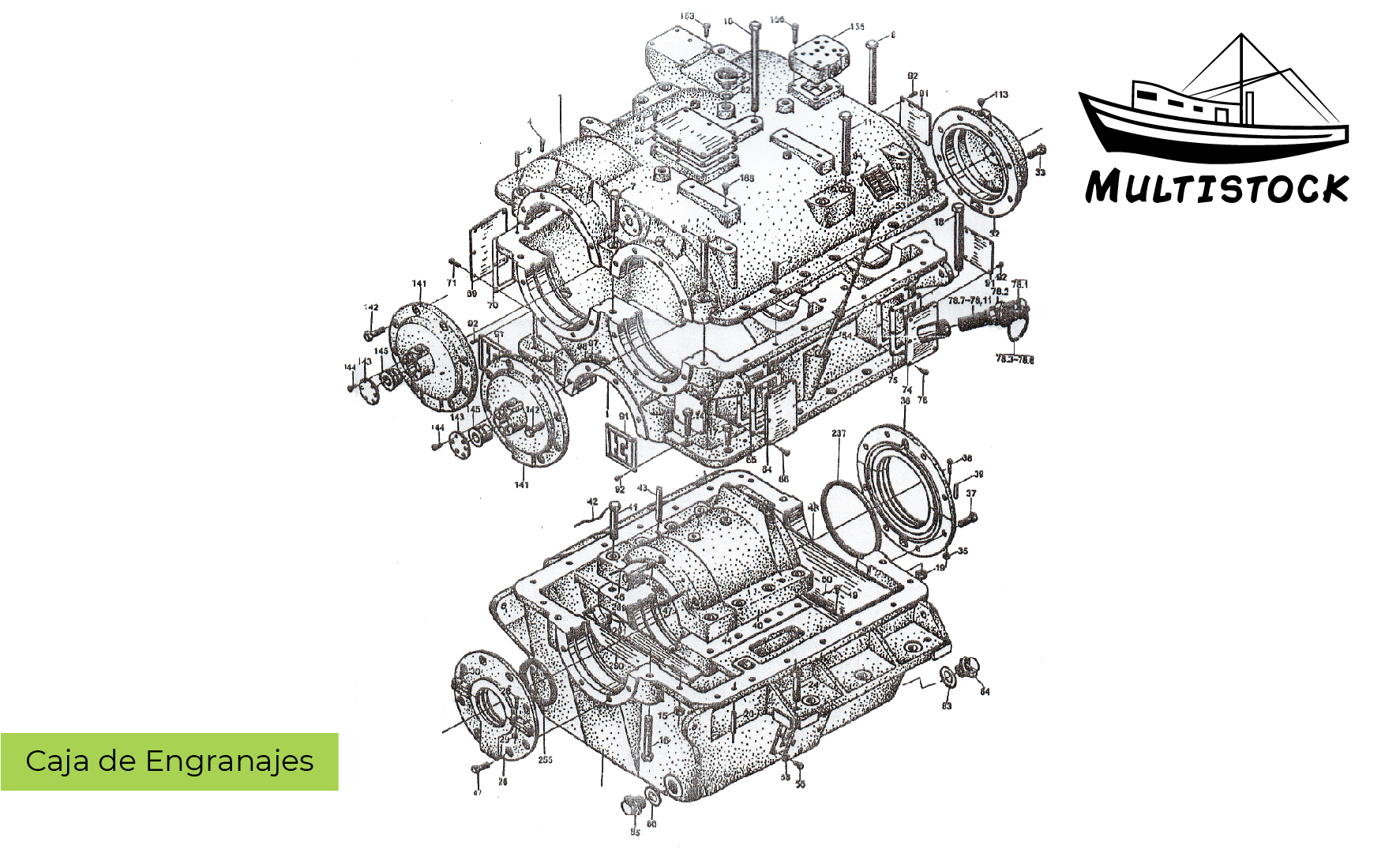

Caja de Engranajes

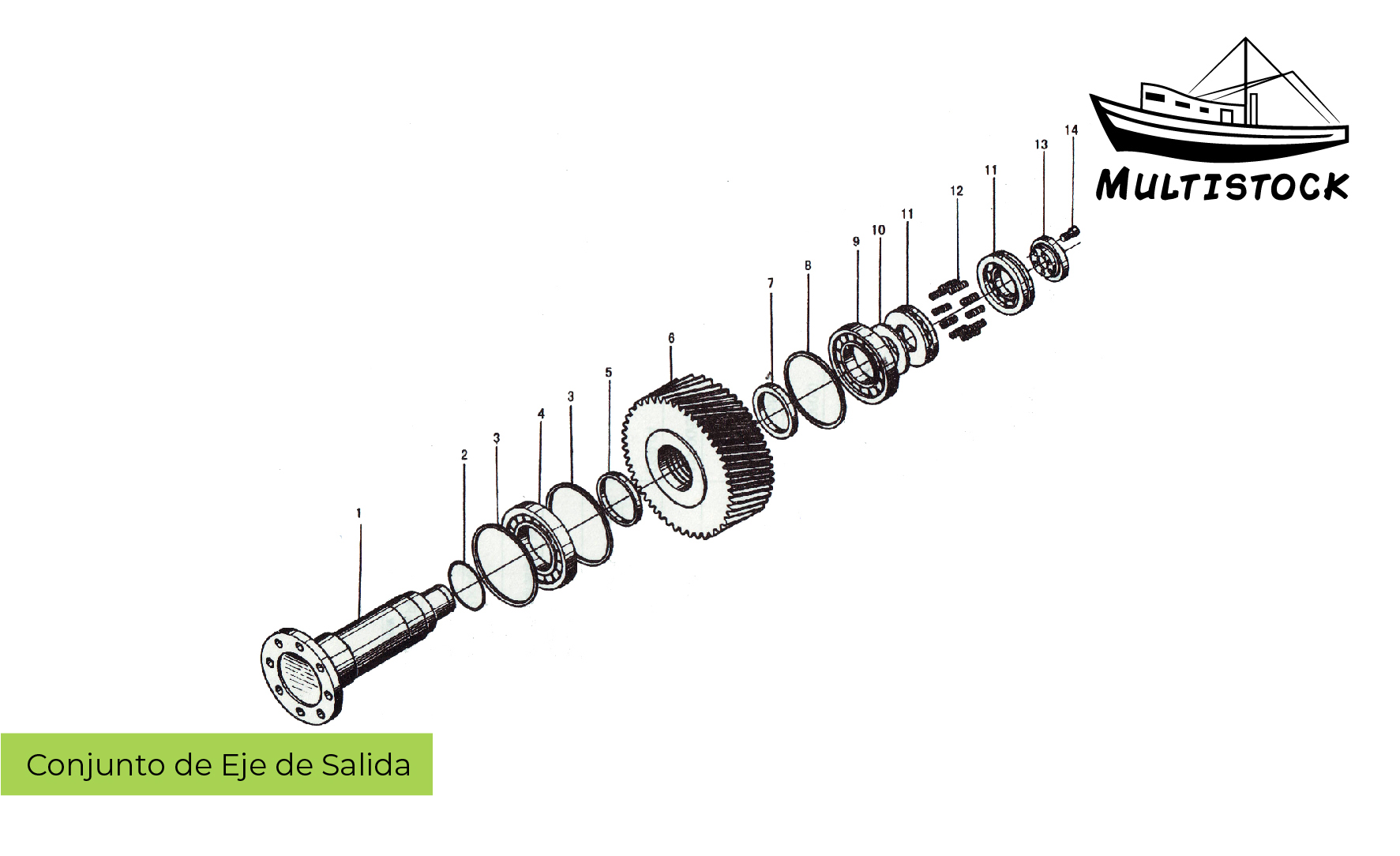

Conjunto de eje de salida

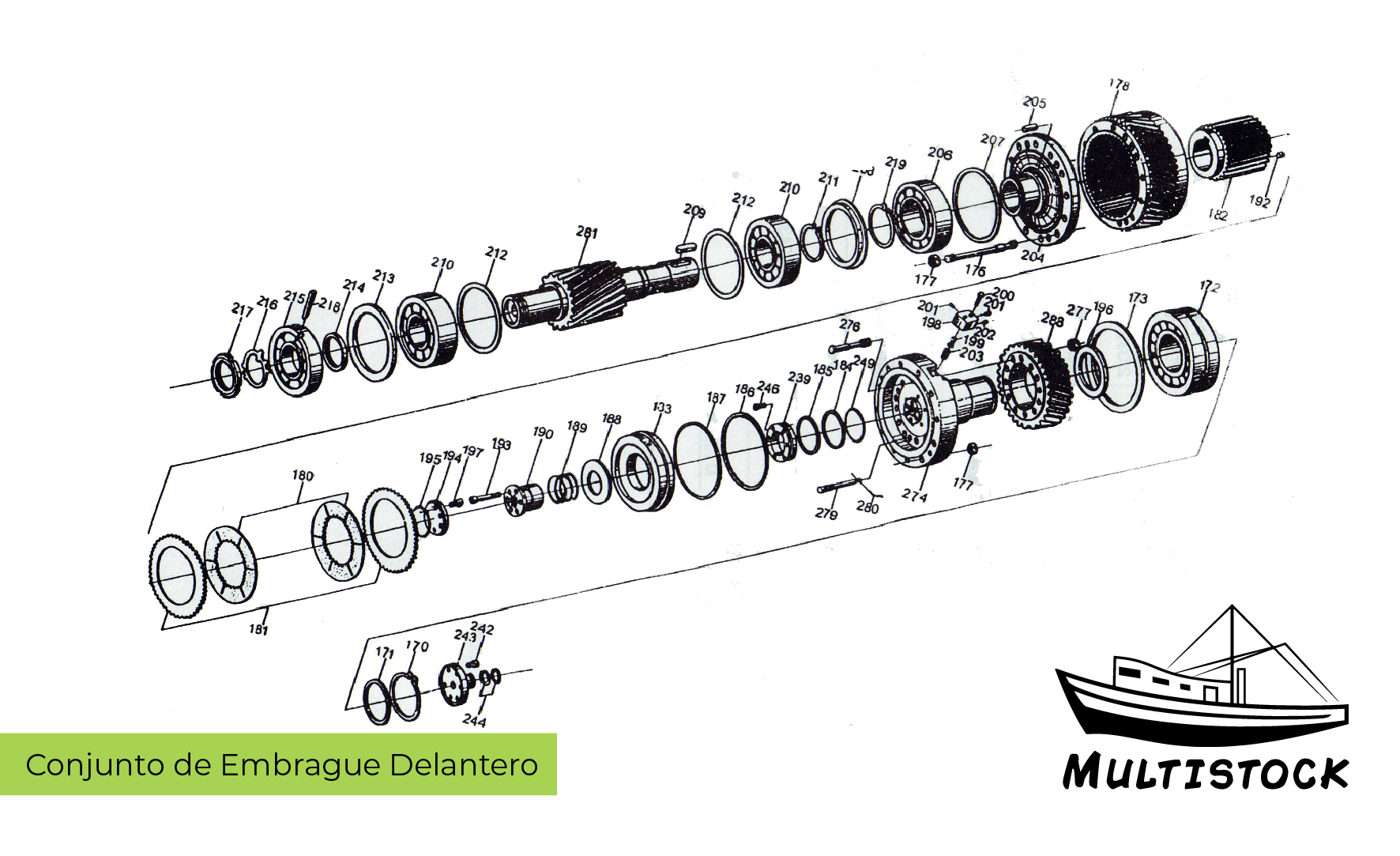

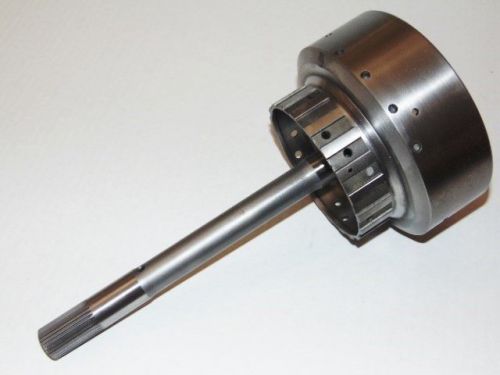

Conjunto de embrague delantero
Conjunto de embrague trasero

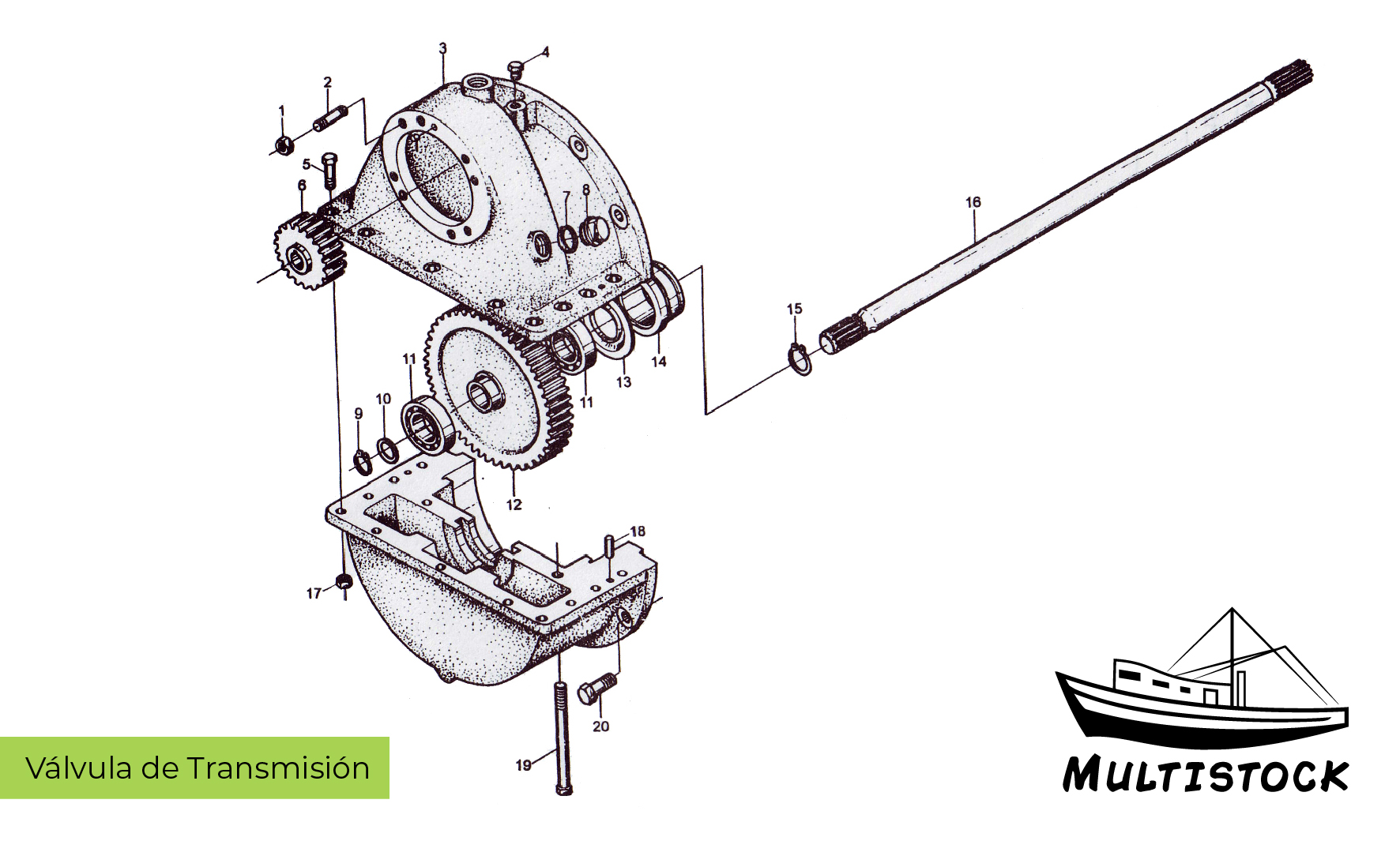

Válvula de transmisión
Acoplamiento de entrada

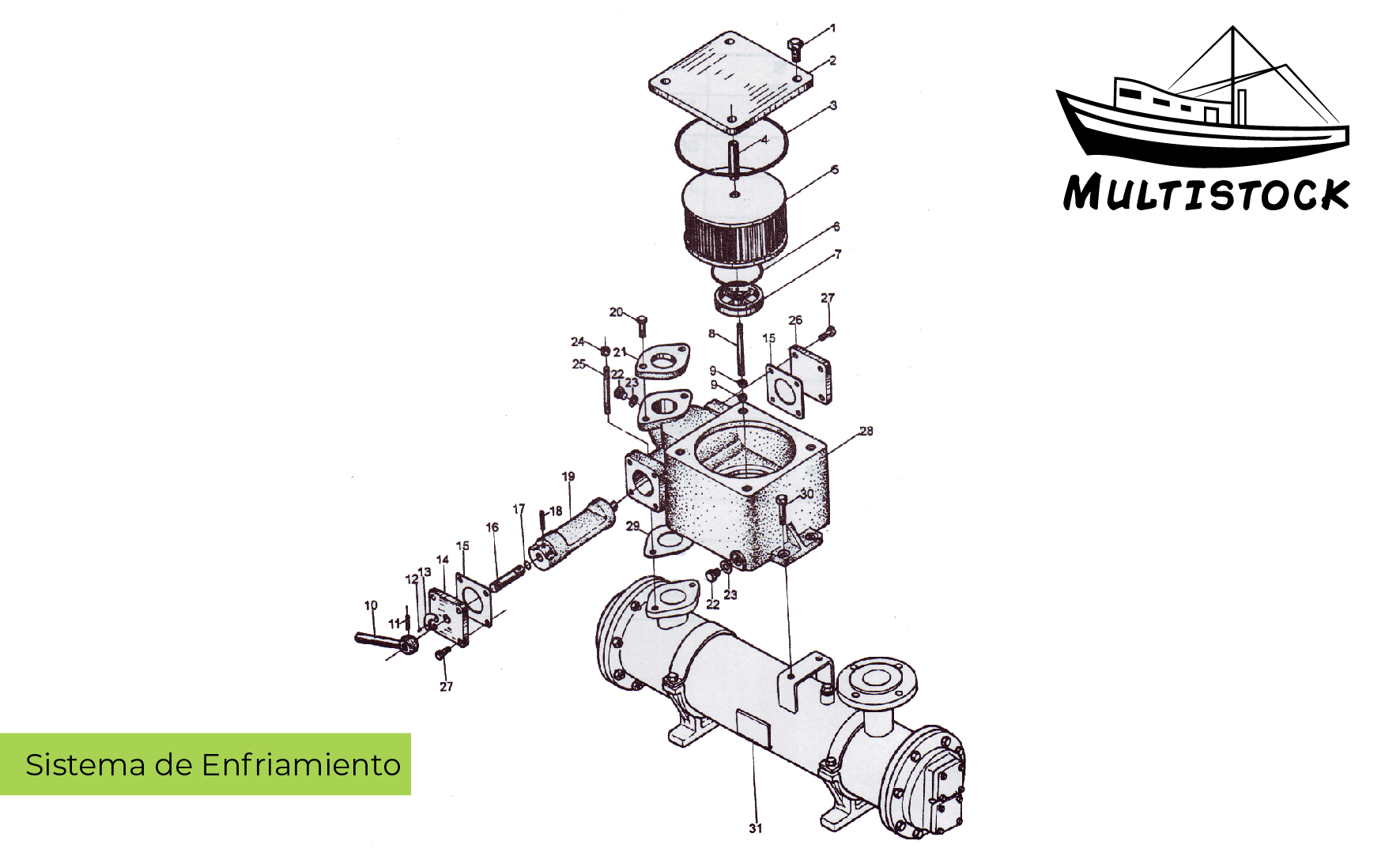

Sistema de Enfriamiento

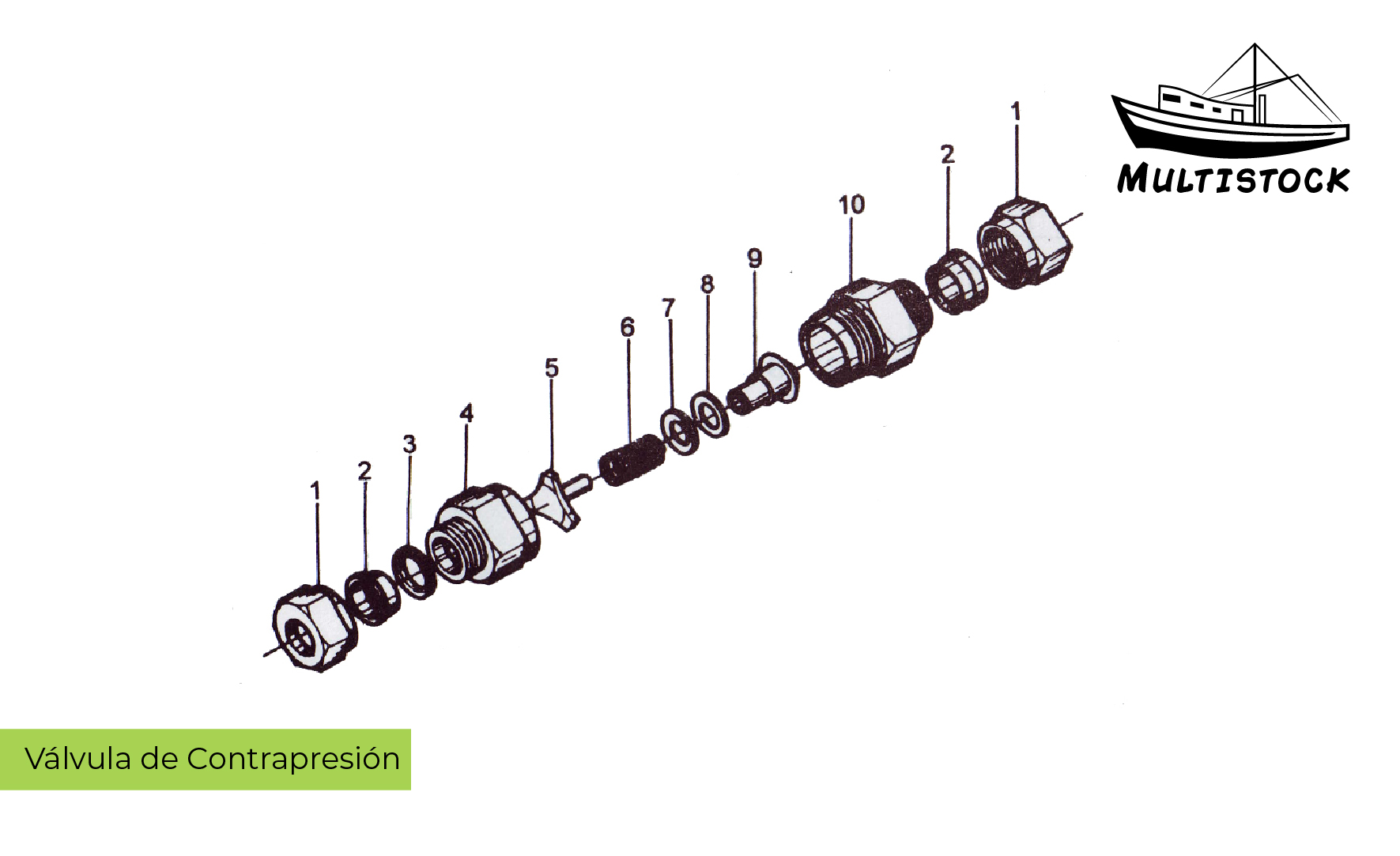

Válvula de contrapresión

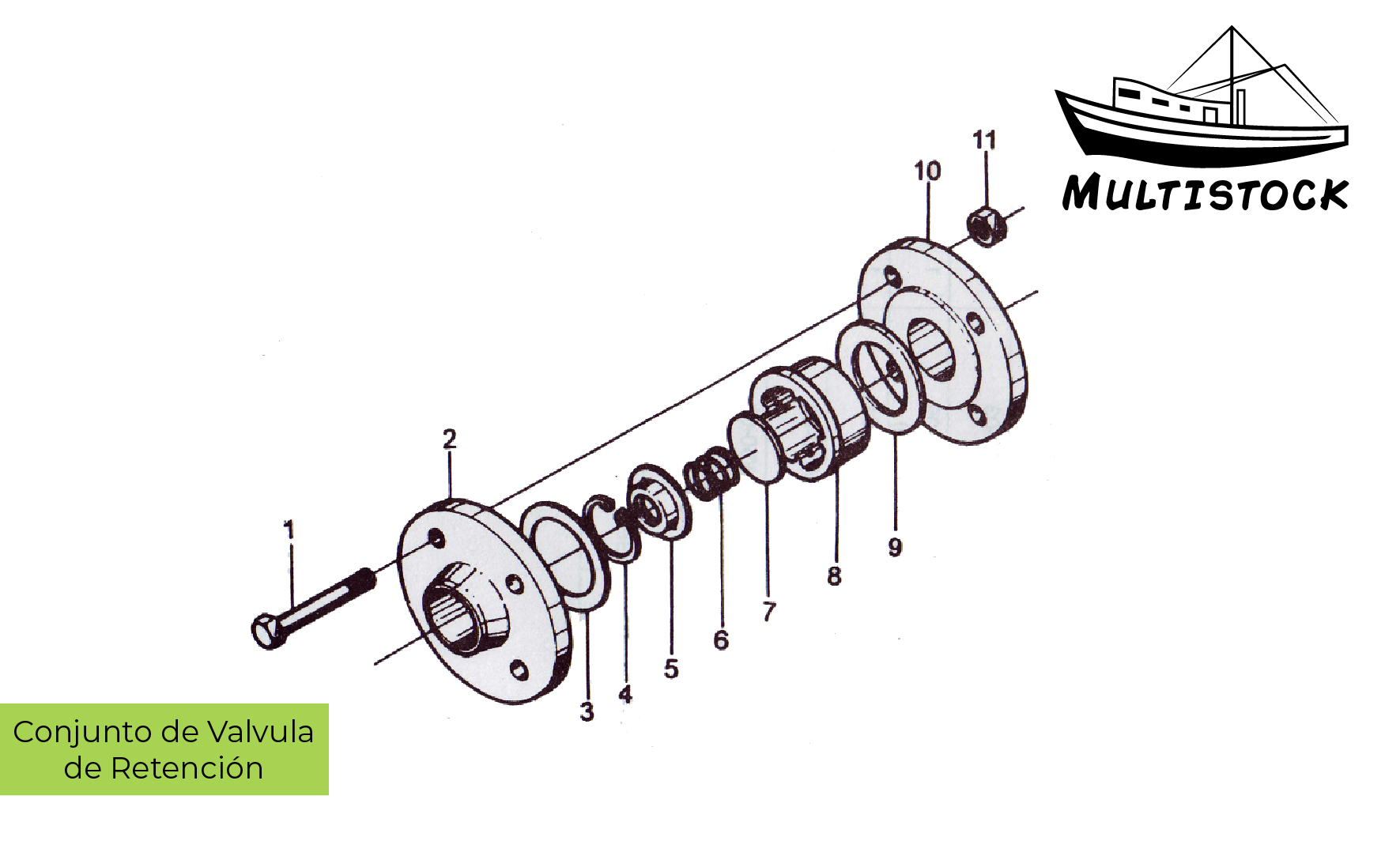

Válvula de retención

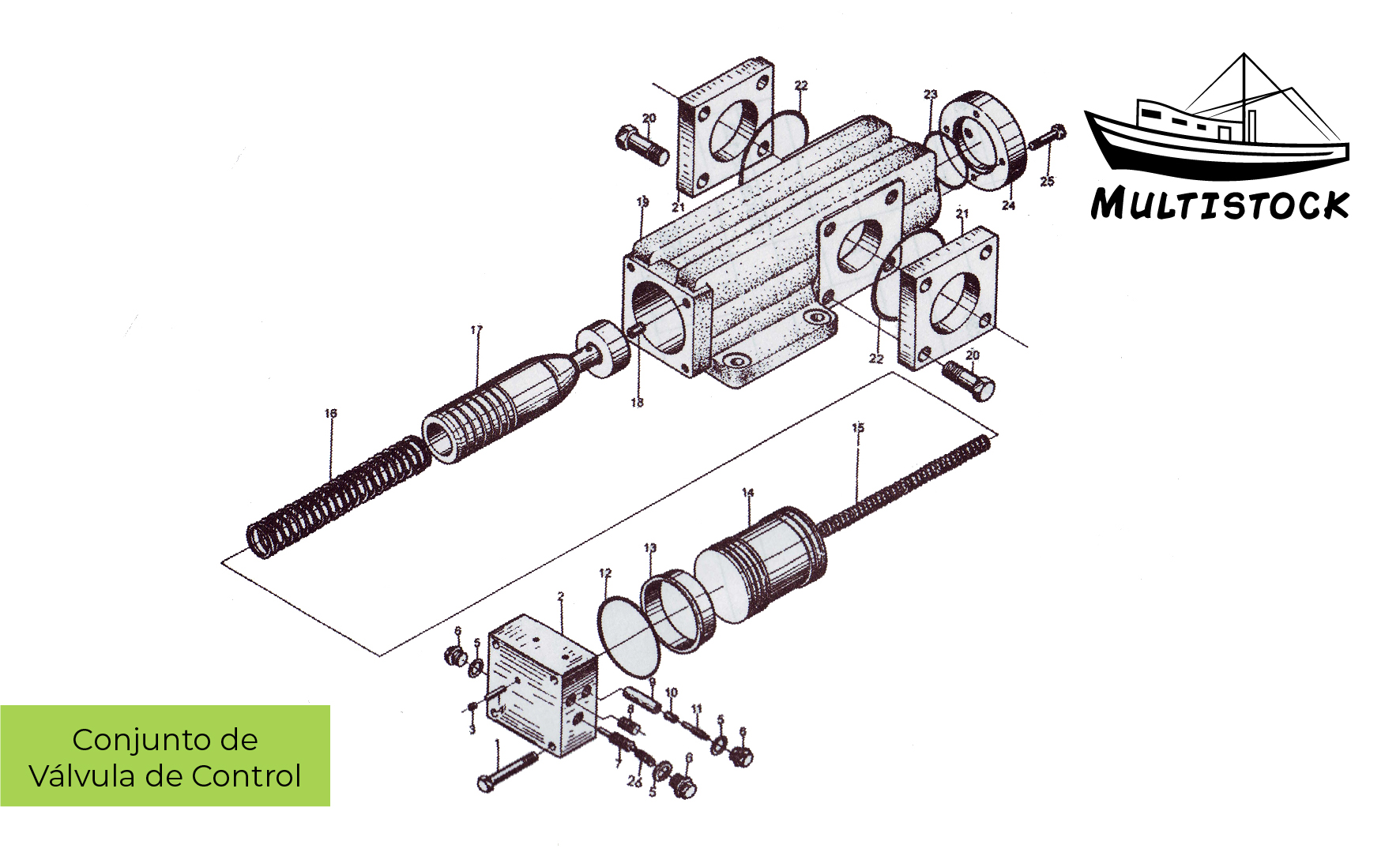

Válvula de Control

Descripción

La caja de cambios marina de la serie GWC está diseñada con reducción de velocidad en dos etapas, entrada y salida concéntrica y rotación en una dirección, con funciones de avance y popa, agarre y desacoplamiento y reducción de velocidad. Presenta una estructura compacta, pequeño en volumen y funcionamiento suave.

Ficha Técnica

Model	Input Speed (r/min)	Reduction Ratio (i)	Trans. Capacity (kW/r·min-1)	Rated Thrust (kN)	Net Weight (kg)
GWC32.35	400-900	20.585	1.346	113	2250
	400-1150	25.415	1.088
	400-1350	30.211	0.9176
	400-1600	35.759	0.772
	400-1800	40.526	0.684
		45.930	0.602
		50.894	0.537
		55.724	0.493
		60.789	0.448

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Housing	0/0112/0138/3 1/0112/0138/3	1	20	Pin 12 X 70	GB877 - 76	2
2	Bolt M12 X 55	GB21 -76	14	24	Screw M20 X 100	GB79 - 76	2
3	Nut	GB52-76	14	26	Sealing cover	1/0434/0175/1	1
4	Bolt M12 X 40-Q	GB21 -76	2	27	Bolt M16 X 40-Q	GB21 - 76	8
5	Bolt M20 X 120	GB21 -76	4	28	Bolt M10 X 40	GB21 - 76	2
6	Nut	GB52-76	6	29	Nut	GB52 - 76	2
7	Bolt M20 X 110	GB21 -76	1	30	Pin 10 X 30	GB879 - 76	2
8	Boit M20 X 90	GB21 -76	1	32	Bearing bracket	2/0438/5011/0	1
9	Pin 12 X 50	GB117-76	2	33	Bolt M12 X 35-Q	GB21 - 76	8
10	Bolt M20 X 240	GB21 - 76	2	35	Nut	GB52 - 76	2
11	Bolt M20 X 200	GB21 - 76	4	36	Sealing cover	2/0434/5025/1	1
14	Bolt M16 X 55	GB21 - 76	16	37	Bolt M20 X 40-Q	GB21 - 76	8
15	Nut	GB52 - 76	16	38	Bolt M10 X 40	GB21 - 76	2
16	Bolt M20 X 140	GB21 - 76	2	39	Pin 10 X 30	GB879 - 76	2
18	Bolt M24 X 150	GB21 - 76	2	40	Bearing bracket	2/0470/0212/0	1
19	Nut	GB52 - 76	2	41	Hexagon bolt with wire holes on head M20 X 75	GB32 - 76	10

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
42	Wire fuse 2.5	YB544 - 65	4	54-2	Pipe 15 X 1.5 X 530	YB231 - 76	1
43	Pin 16 X 80	GB118 - 76	2	55	Cover	4/0438/1001/0	2
44	Bearing bracket	2/0470/0248/0	1	56	Bolt M8 X 15-Q	YB21 - 76	8
45	Hexagon bolt with wire holes on head M12 X 70	GB32 - 76	3	57	Sealing gum		50
46	Wire fuse 1.6	YB544 - 65	1	59	Inspection window cover	3/0454/0020/0	1
47	Pin 10 X 100	GB881 - 76	2	60	Paper Gasket	3/0985/0032/0	1
48	Oil shroud	3/0941/5018/0	1	61	Bolt M8 X 20-Q	GB21 - 76	6
48-1	Bottom sheet	3/0023/5114/0	1	64	Inspection window cover	3/0454/0020/0	1
48-2	Side sheet	4/0023/5115/0	2	65	Paper Gasket	3/0985/0032/0	1
49	Hexagon bolt with wire holes on head M10 X 15-Q	GB32 - 76	4	66	Bolt M8 X 20—Q	GB21 - 76	6
50	Wire fuse 1.6	YB544 - 65	2	69	Inspection window cover	3/0454/0496/0	1
53	Dipstick	4/8053/5129/0	1	70	Paper Gasket	2/0985/0645/0	1
53-1	Gauge stick	4/0950/0305/0	1	71	Bolt M8 X 20-Q	GB21 - 76	6
53-2	Cover	4/0459/0341/0	1	74	Inspection window cover	3/0454/5013/0	1
54	Protective pipe	4/0940/5048/0	1	74-1	Cover	3/0454/0496/0	1
54-1	Plug screw	4/0940/1654/0	1	74-2	Oil pipe	GWC74 - 2	1

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
75	Paper Gasket	4/0985/0645/0	1	141	Oil feeding cover	GWC32.35-05-141	2
76	Bolt M8 X 2O-Q	GB21 - 76	6	142	Bolt M16 X 45-Q	GB21-76	16
78	OiI ﬁlter	GW-78-000	1	143	Cover	GWC42.45-05-144	2
81	Breather cap	Q29 - 06	1	144	Bolt M8 X 30	GB21-76	12
82	Copper washer 30	Q20 - 03	1	145	lnlet sleeve	GWC42.45-05-145	2
83	Copper washer 48	Q20 - 03	1	153	Bolt M12 X 30—Q	GB21 -76	4
84	Plug screw M48 X 2	JB1000 - 77	1	155	Connection plate	2/0930/0644/1	1
85	Plug screw M33 X 2	JB1000 - 77	1	156	Bolt M10 X 55	GB70-76	4
86	Copper washer 33	Q20 - 03	1	168	Bolt M16 X 25-Q	GB21-76	4
91	HC Mark 100	HCN011 - 83	4	237	Packing 9.5 X 9.5 X 600	No. 137	1
92	Notched nail 3 X 10	GB827-76	16	255	Packing 9.5 X 9.5 X 380	No. 137	1
93	HC emblem mark	HCN-009-88	1	289	Hexagon bolt with wire holes on head M10 X 15-Q	GB32-76	4
94	Notched nail 3 X 8	GB827-76	4	290	Oil shroud	3/0941/5016/0	1
97	Rotation indicator plate	Q25-06	1	290-1	Bottom plate	3/0023/5109/0	1
98	Notched nail 3 X 8	GB827-76	2	290-2	Side sheet	4/0023/5108/0	2
113	Plug screw M14 X 1.5	JB1000-77	1	291	Wire fuse 1.6	YB544-65	2

N°	Descripción	Codigo Parte	Cant.
1	Output Shaft	2/0230/5044/0	1
2	Oring	169.2 X 5.7	1
3	Snap ring 290	Q20 - 04	2
4	Bearing	32232H(NU232MA)	1
5	Spacer ring	4/0400/5227/0	1
6	Output gear Z=64	2/0305/5060/0	1
	Output gear Z=72	2/0305/5058/0	1
	Output gear Z=77	2/0305/5041/0	1
7	Spacer ring	4/0400/5226/0	1
8	Snap ring 250	Q20 - 04	1
9	Bearing	4/0400/3869/0	1
10	Bearing spacer	32228H(NU228MA)	1
11	Bearing	4/0400/3869/0	2
12	Spring 2 X 10 X 55	9039420E(29420E)	8
13	Disc	4/0405/1571/0	1
14	Screw M20 X 45	GB70 - 76	6

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Nut M95 X2	GB812 - 76	1	17	Nut M14	DIN6915AHV10	20
2	Lock Washer 95	GB858 - 76	1	18	Stud	4/0224/1083/0	10
3	Parallel pin	4/0220/0554/1	1	19	Range for clutch housing	2/0582/0942/1	1
4	Bearing	176319HY(QJ319N)	1	20	Clutch housing Z = 57	1/0335/5003/1	1
5	Spacer	4/0400/3870/0	1	21	Disc carrier	2/0335/0153/0	1
6	Spacer	4/0401/3461/0	1	22	Plug e7	Q21 - 41	3
7	Cylindrical roller bearing	3G32619EH (NU2319E)	2	23	Inner disc	3/0539/0050/2	11
8	Snap ring 200	Q20 - 04	2	24	Outer disc	3/0530/0037/1	12
9	Pinion Z=19	1/0256/5025/0	1	25	Oring 93x4	4/0406/0435/1	1
10	Key 22 X 100	GB1096 - 79	1	26	Retaining disc		1
11	Snap ring 95	GB894 - 76	1	27	Cap head screw M8X25	GB65 - 76	6
12	Spacer ring	4/0401/3483/0	1	28	Hexagon socket cap head screw M10X90	GB70 - 76	6
13	Snap ring 130	GB894 - 76	1	29	Bushing	3/0333/5007/0	1
14	Cylindrical roller bearing	36322266H(NU226E)	1	30	Pressure spring	4/0991/0286/0	1
15	Snap ring 230	Q20 - 04	1	31	Disc	4/0400/5272/0	1
16	Parallel pin 16ga X 40	GB119 - 76	2

Repuestos de Cajas Marinas Advance - Repuestos de Tractores y Motores Chinos - Repuestos de Tornos Dalian - Mini Central Electrica - Bombas Achique para Barcos - Puntas Inyectoras

multistock.ltda@gmail.com +569 8954 4294

Productos

Cajas Marinas

Repuestos Agricolas

Caja Marina Caja Marina GWC-32

Ver Despieces

Descripción

Ficha Técnica

Galería de Repuestos

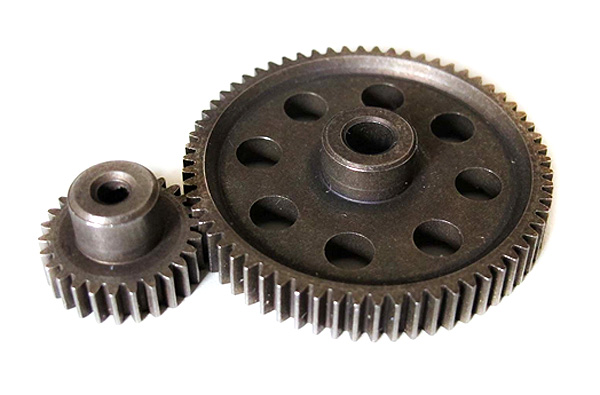

Engranajes

Bomba de Agua

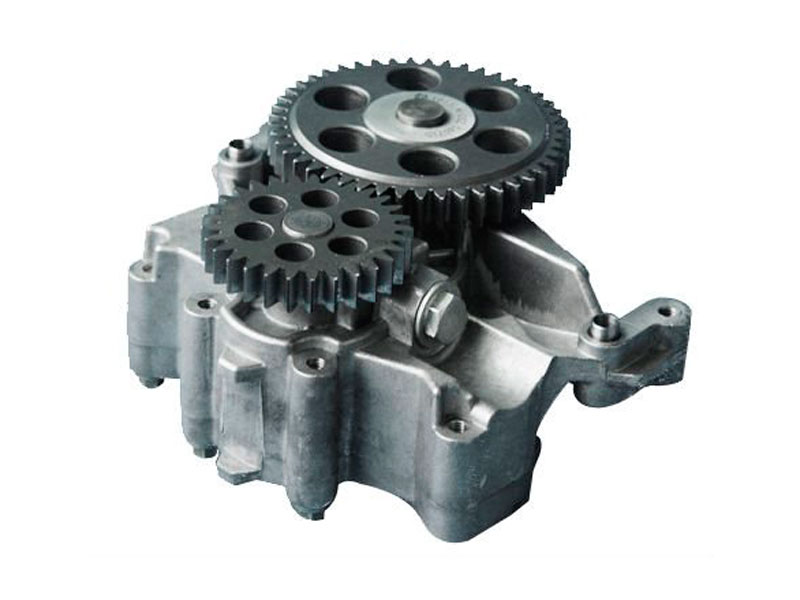

Bomba de Aceite

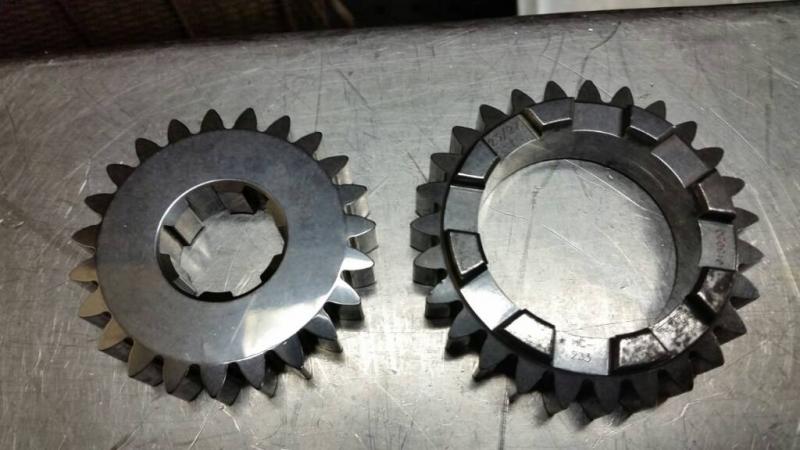

Piñones
