Caja Marina 135

Ver Despieces

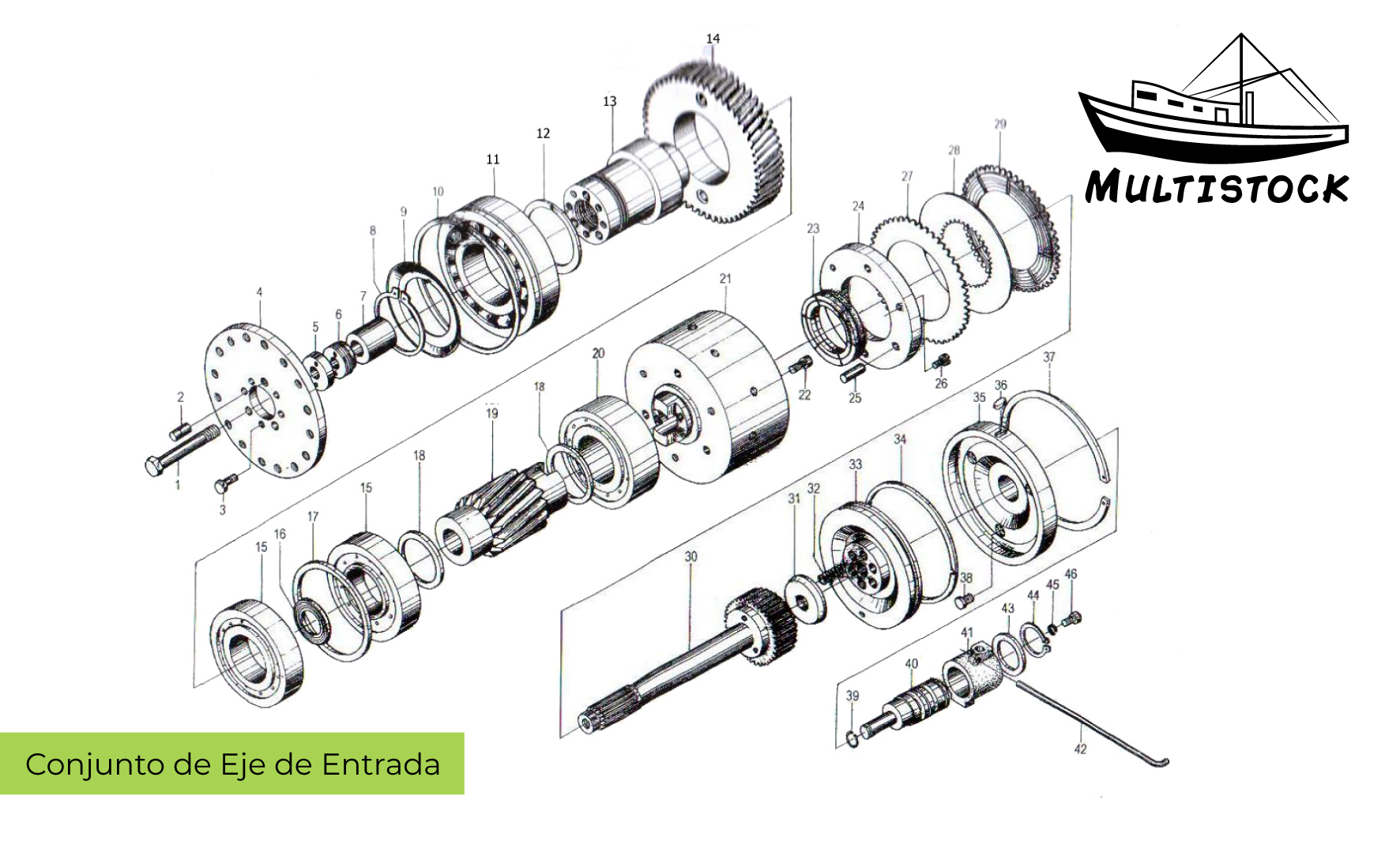

Conjunto de eje de entrada

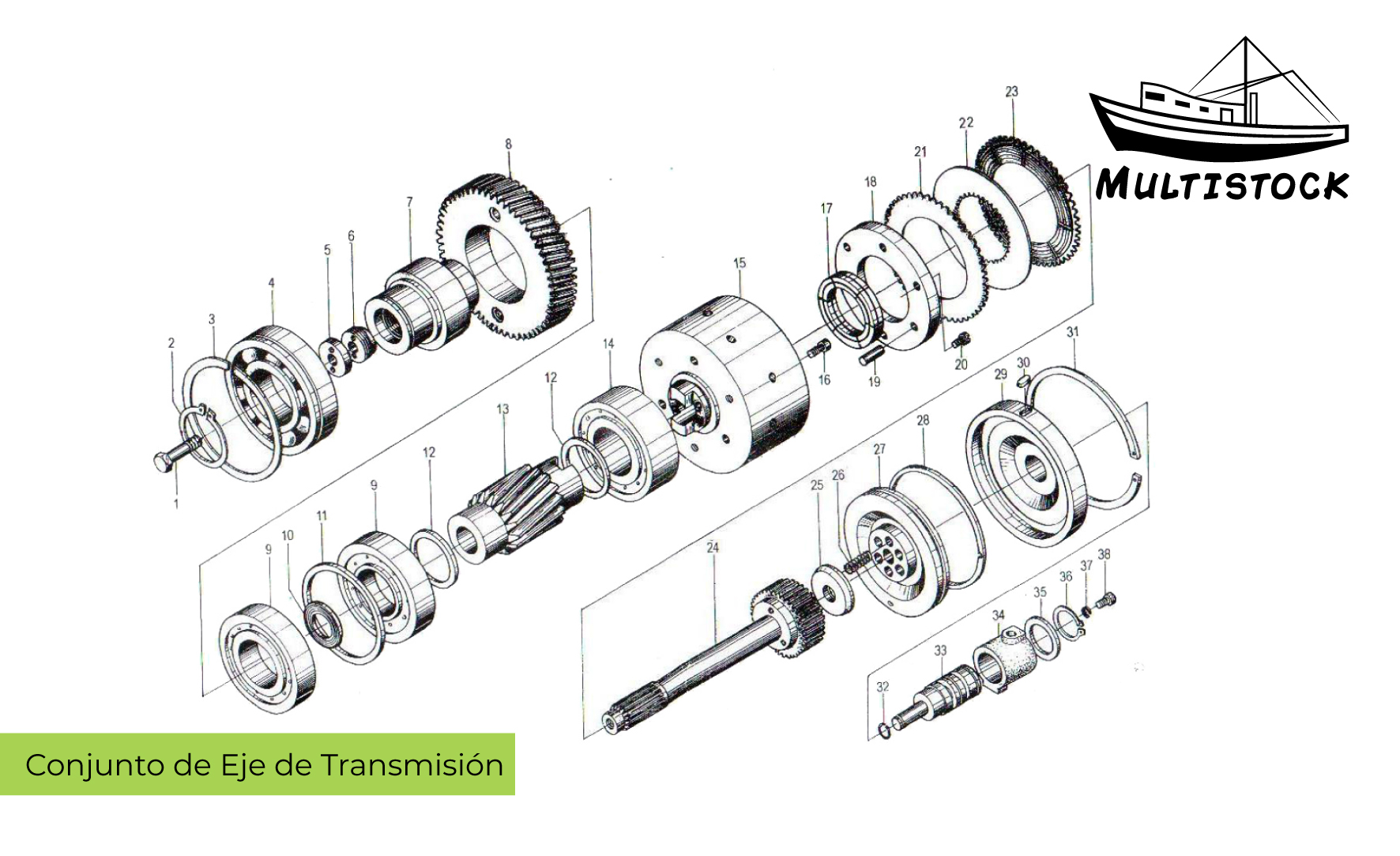

Conjunto de eje de Transmisión

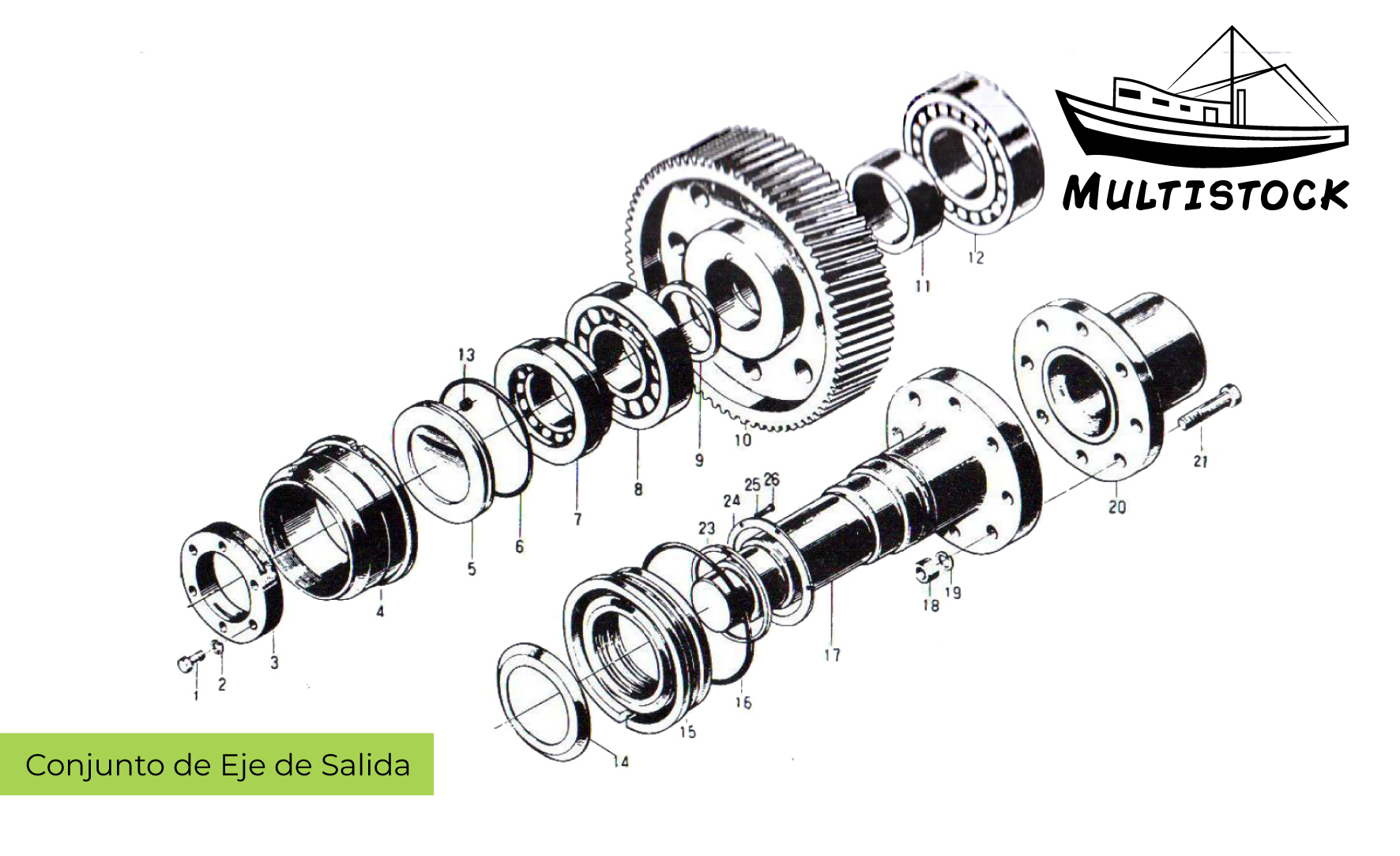

Conjunto eje de salida

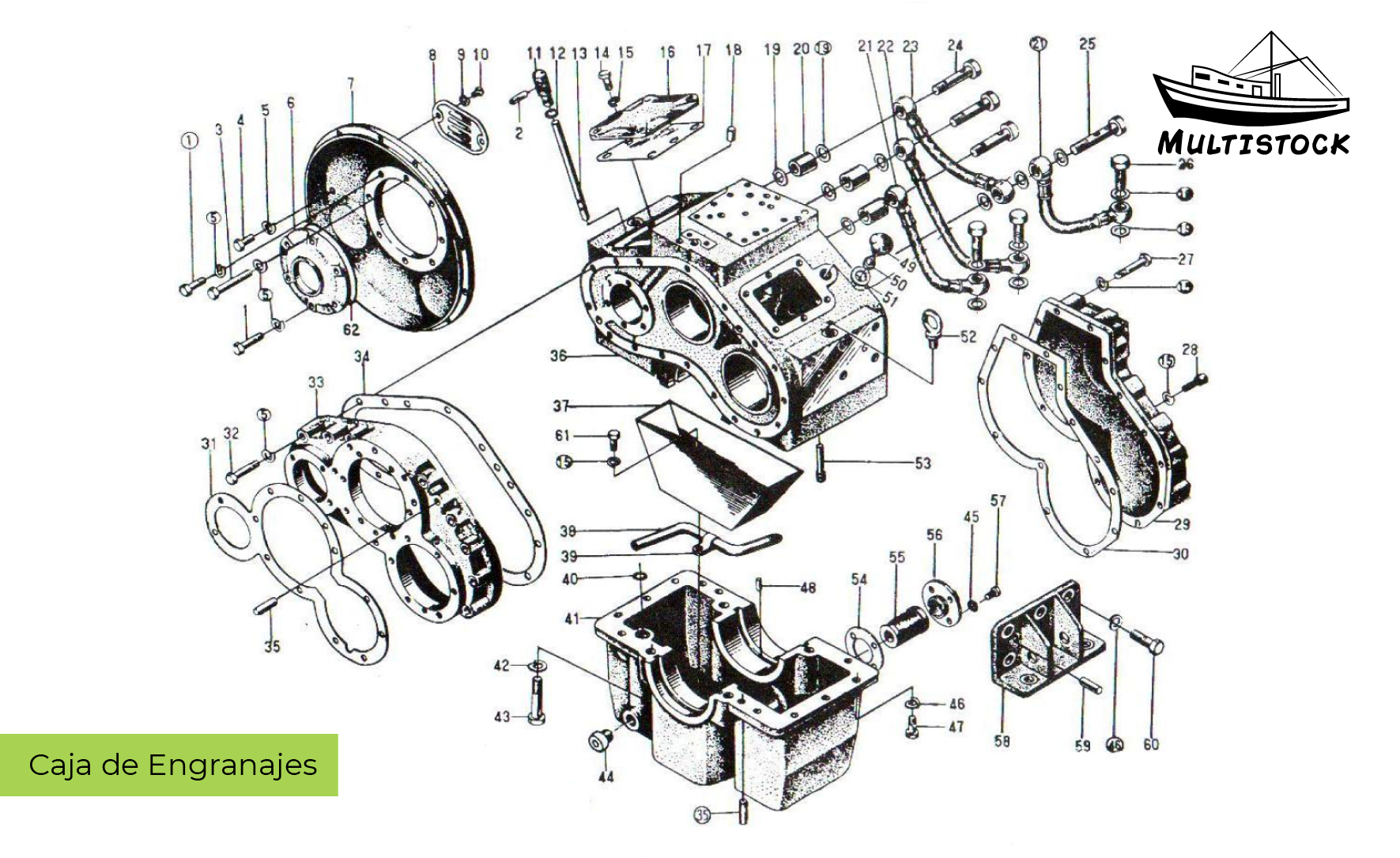

Caja de engranajes

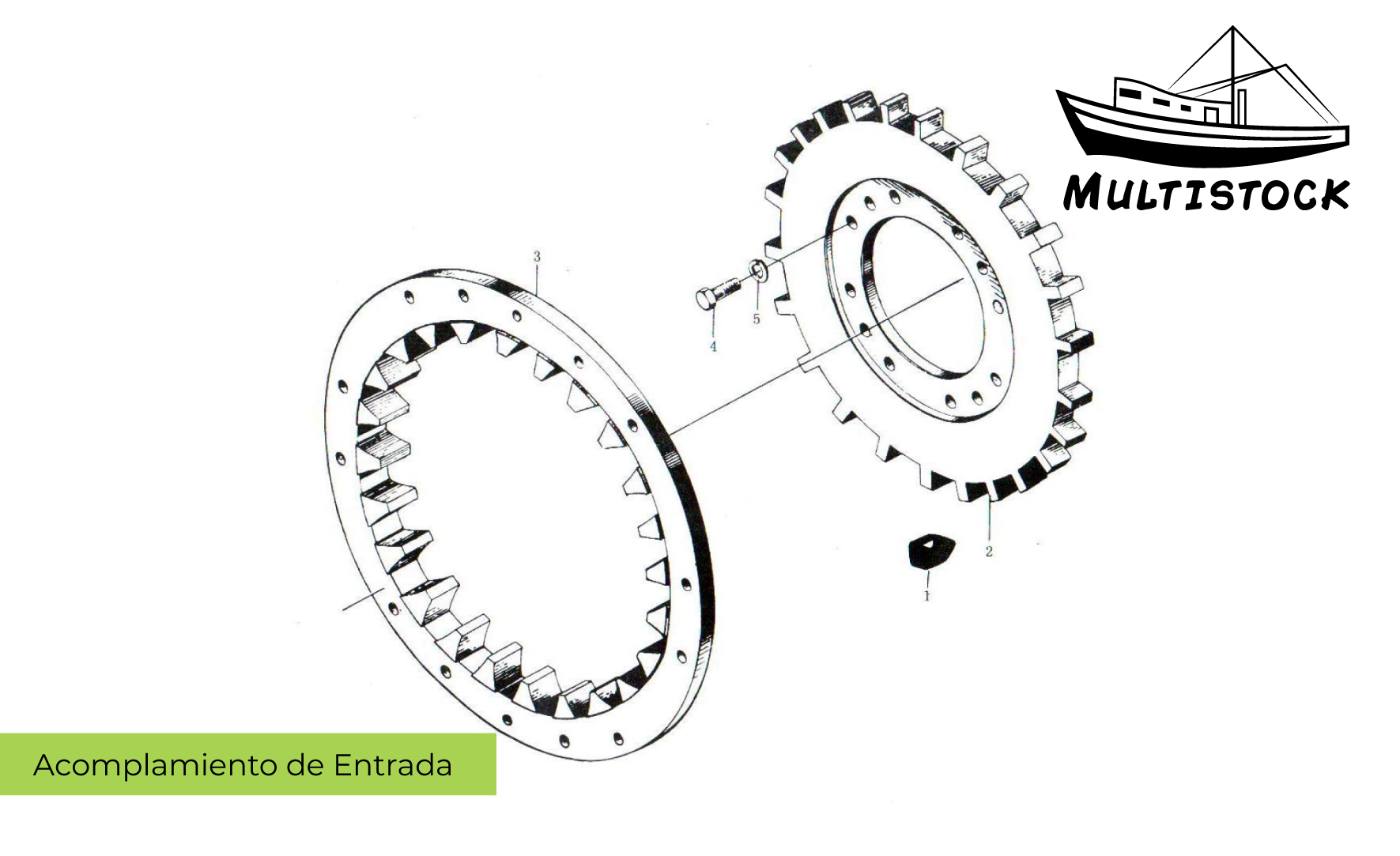

Acoplamiento de entrada

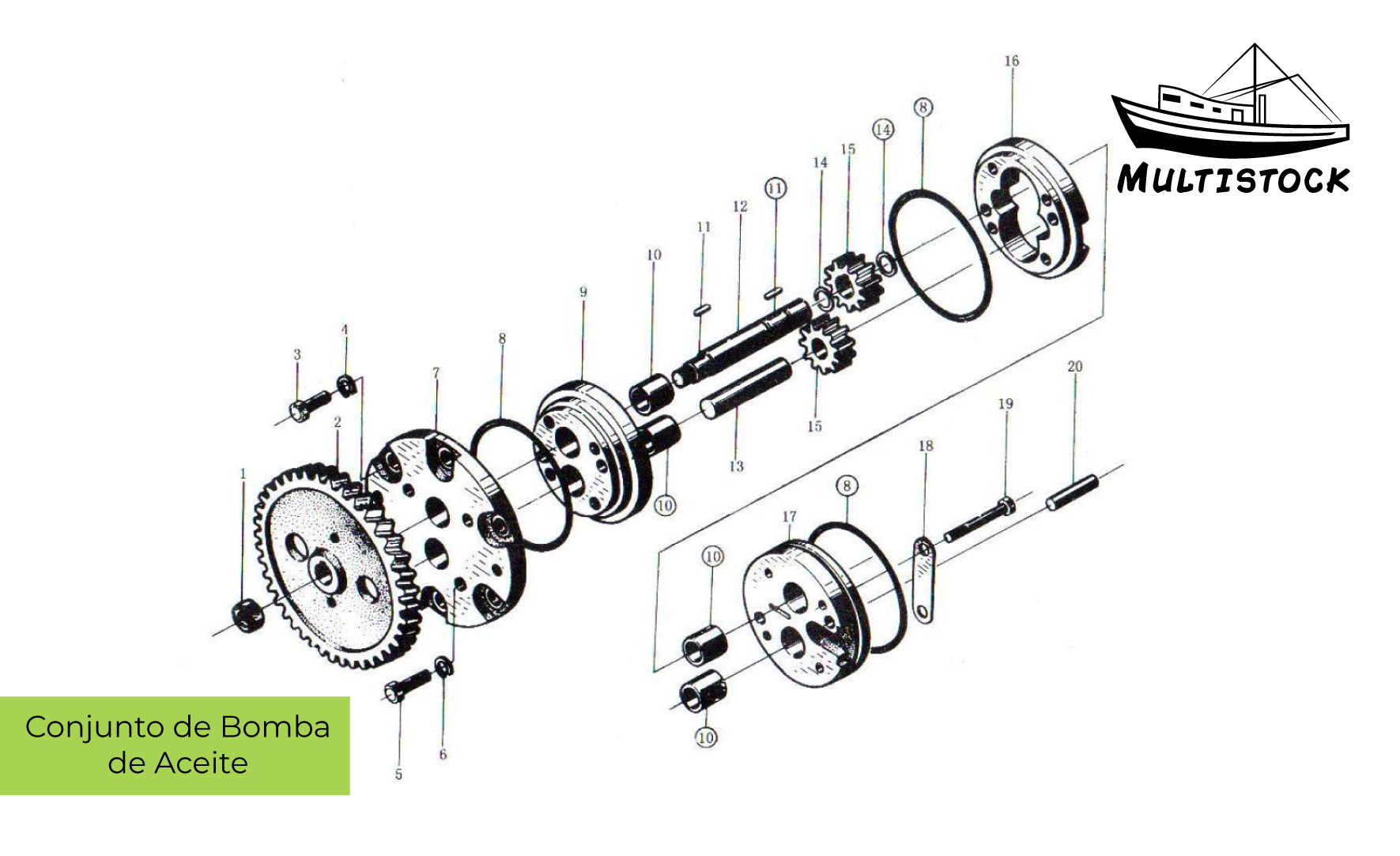

Conjunto de bomba de Aceite

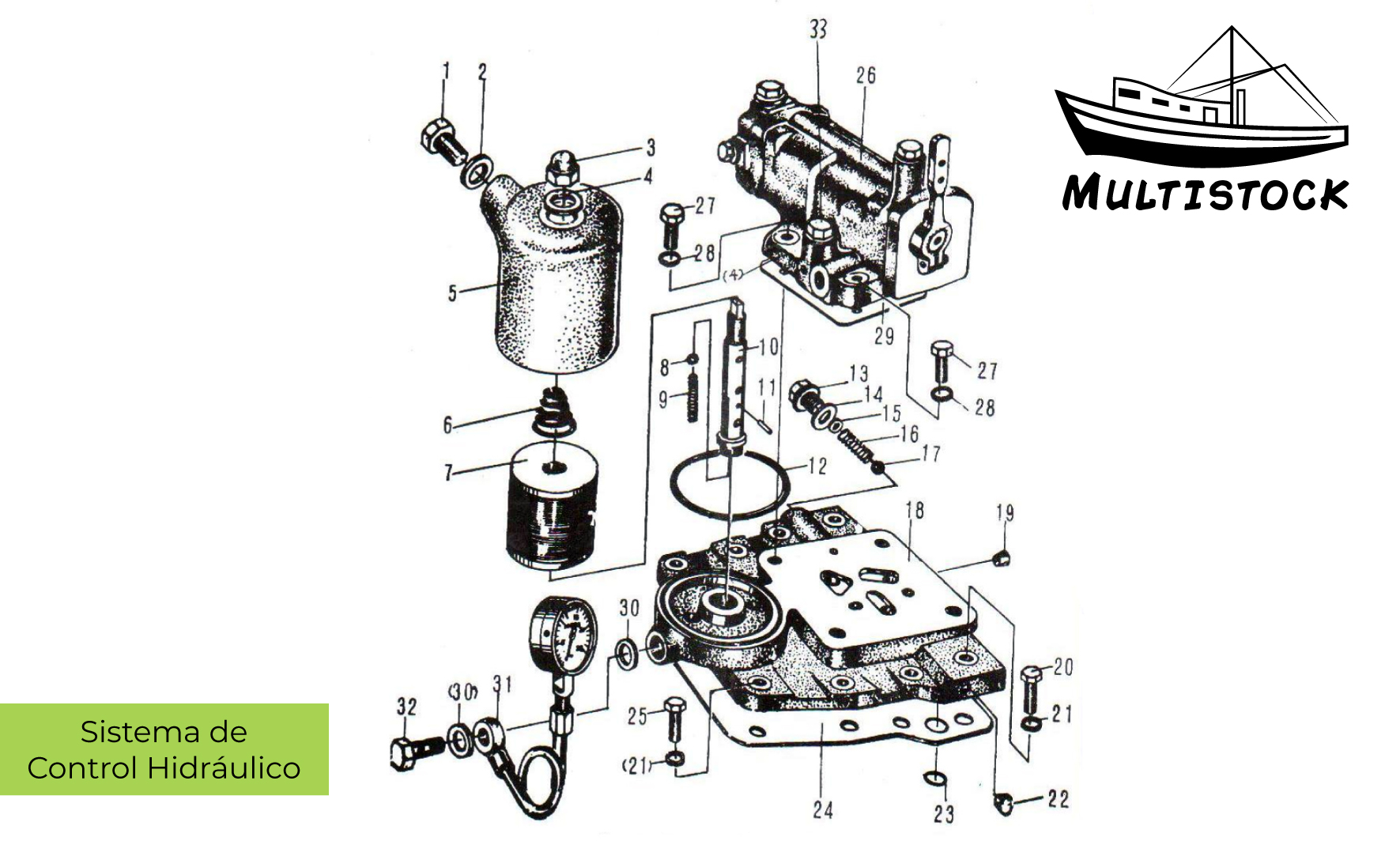

Sistema de control hidráulico

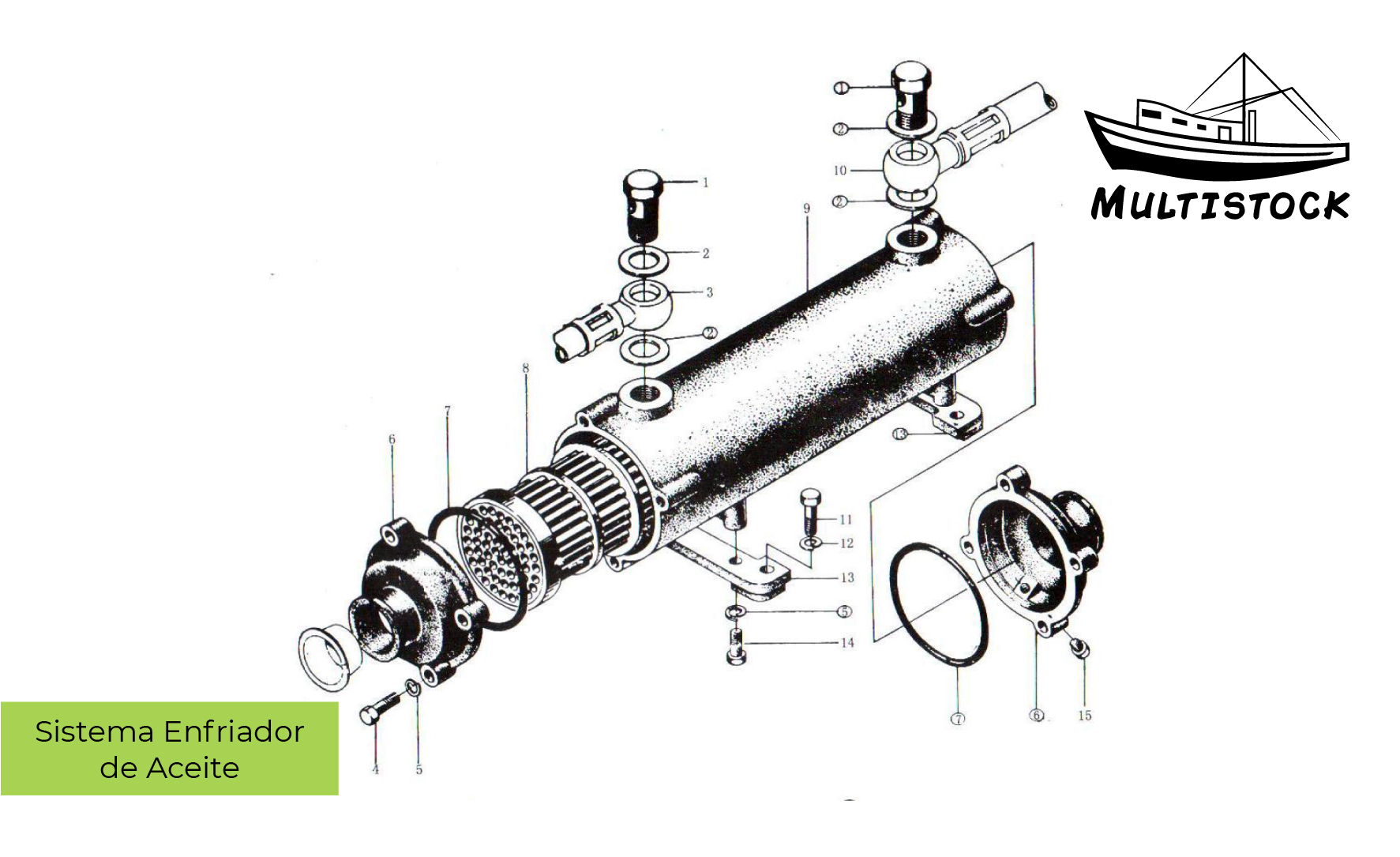

Sistema enfriador de aceite

Descripción

La Caja de Cambios Marina 135 posee funciones de reducción de velocidad, adelante y agarre a popa y empuje de la hélice. Está diseñado con transmisión en una sola etapa y desplazamiento vertical, con un volumen pequeño, peso ligero y fácil de desmontar y volver a montar y mantener.

Ficha Técnica

Input speed	750-2000r/min			Rated thrust	29.4KN
Reduction ratio	2.03、2.59、3.04、3.62、4.11	trans. capacity	0.10kw/r/min	Center distance	225mm
	4.65		0.093kw/r/min	L×W×H	578×744×830mm
	5.06		0.088kw/r/min	Net weight	470kg
	5.47		0.077kw/r/min	Flywheel	6135Ca、SAE14
	5.81		0.070kw/r/min	Bell housing	6135Ca、SAE1
Control way	Push-and-pull flexible shaft, electrically

Galería de Repuestos

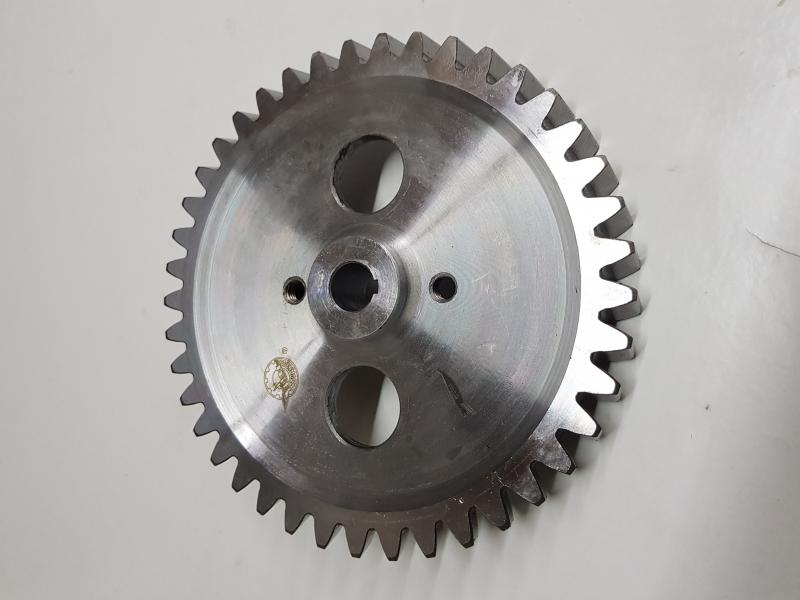

ENGRANAJE BOMBA ACEITE

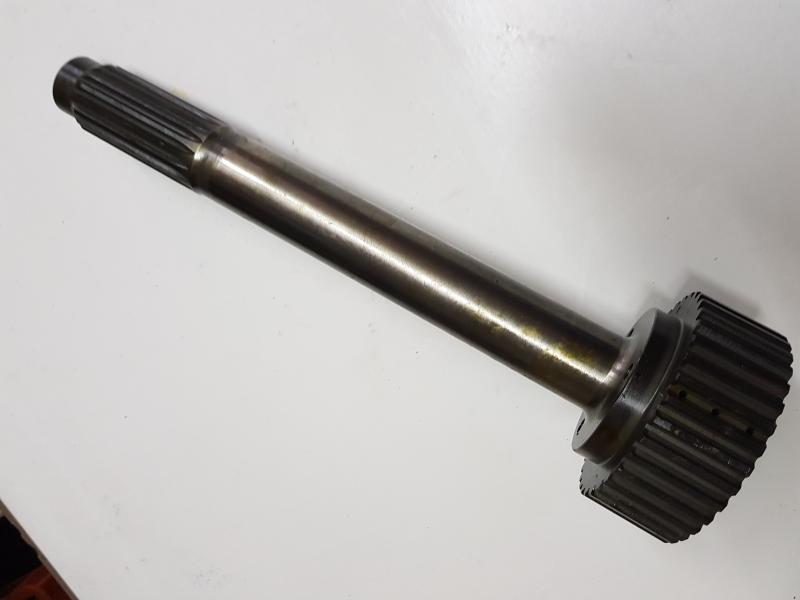

EJE SECUNDARIO

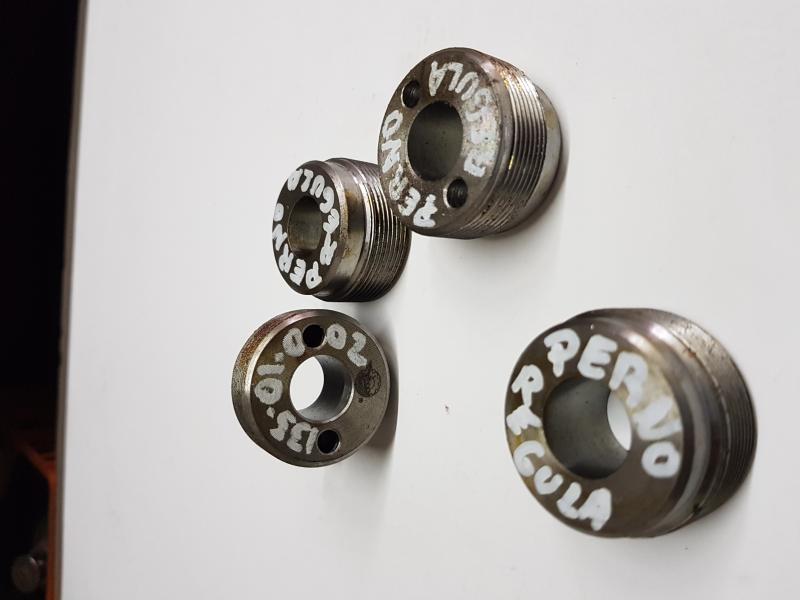

PERNO REGULADOR

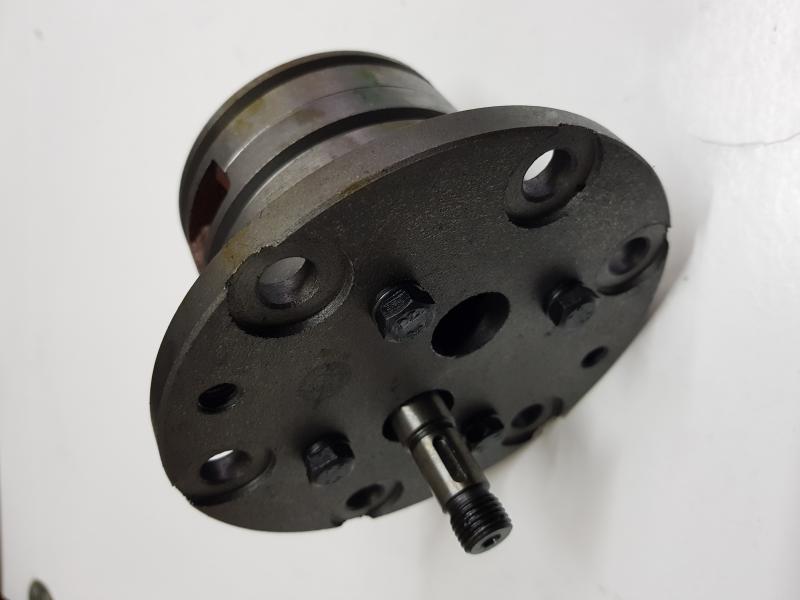

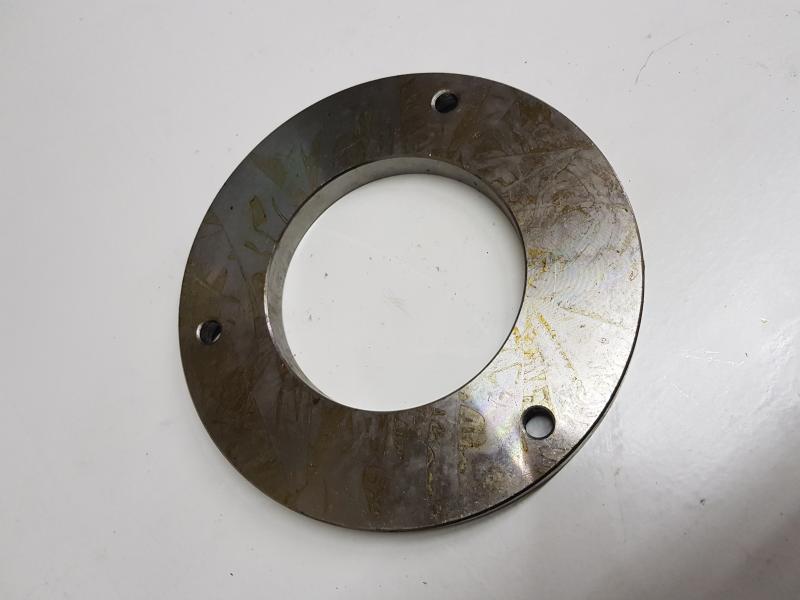

PORTA PISTÓN 135A

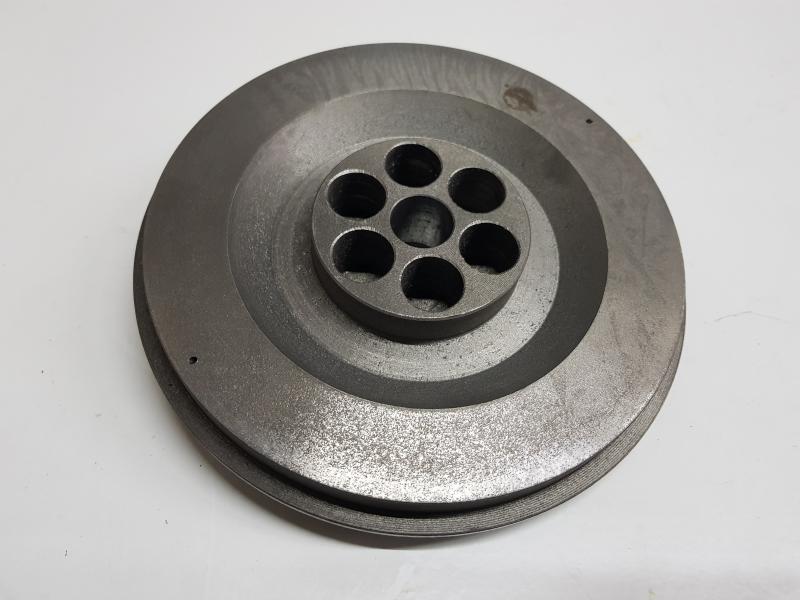

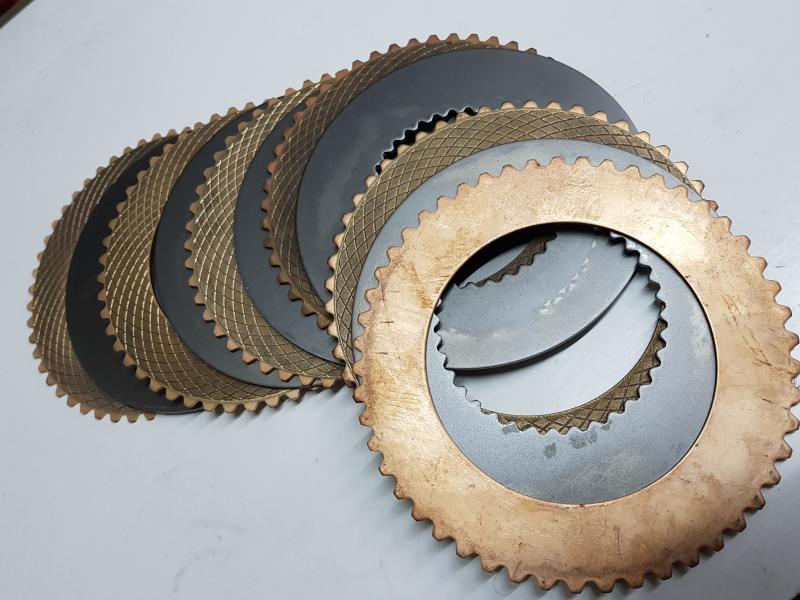

JUEGO DISCOS

CONJUNTO HIDRÁULICO 135A

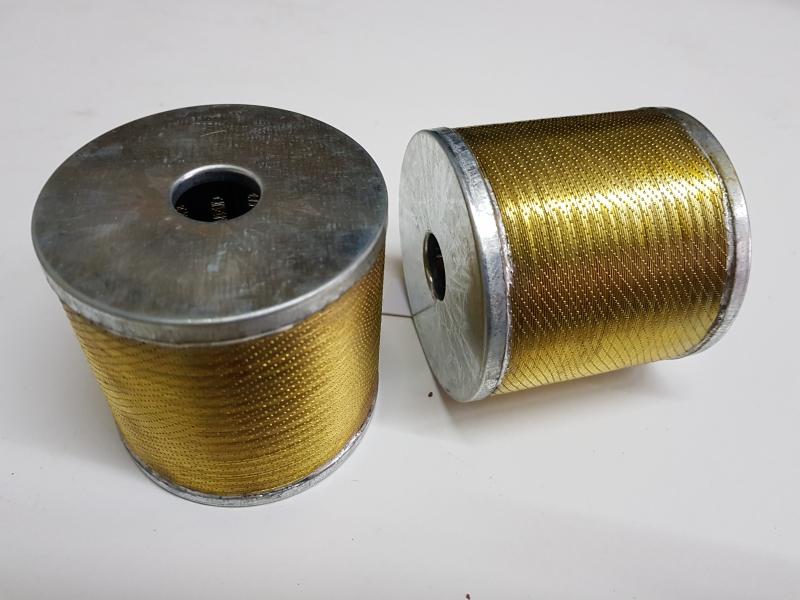

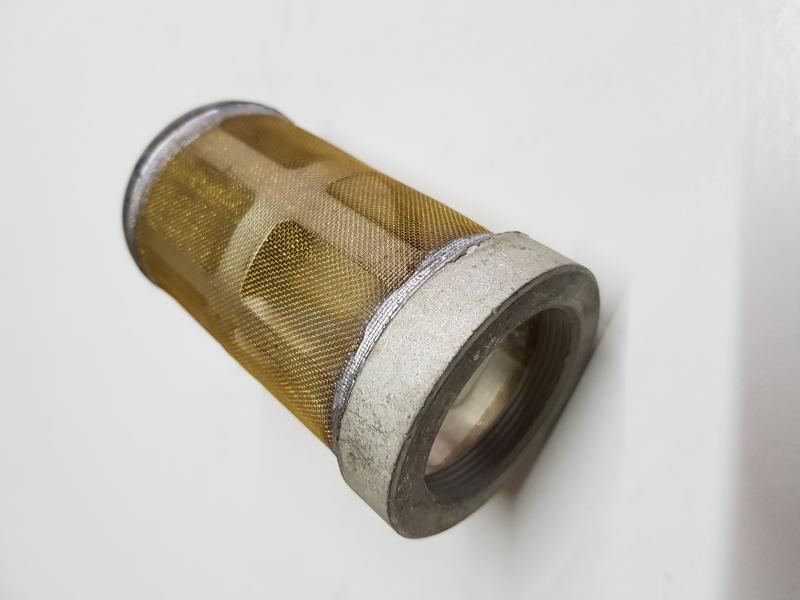

FILTRO COMANDO HIDRÁULICO

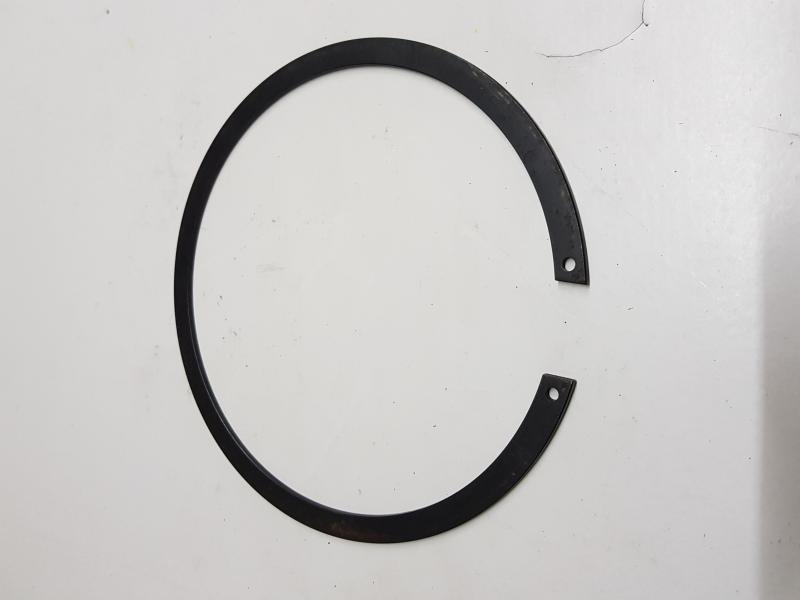

SEGURO SEEGER TAMBOR

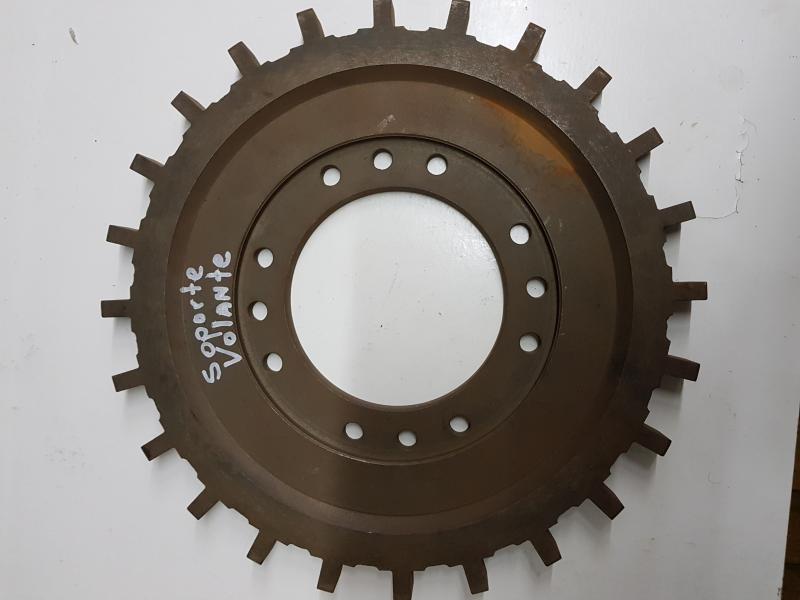

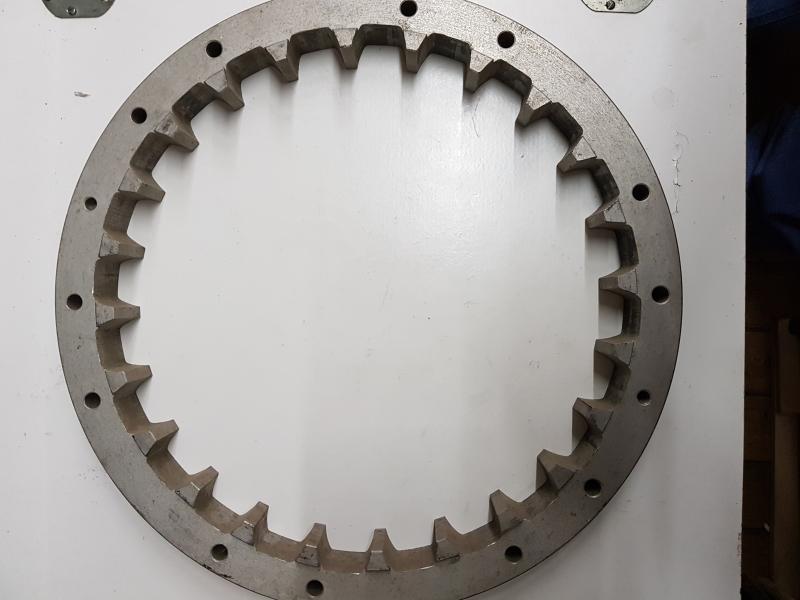

SOPORTE VOLANTE

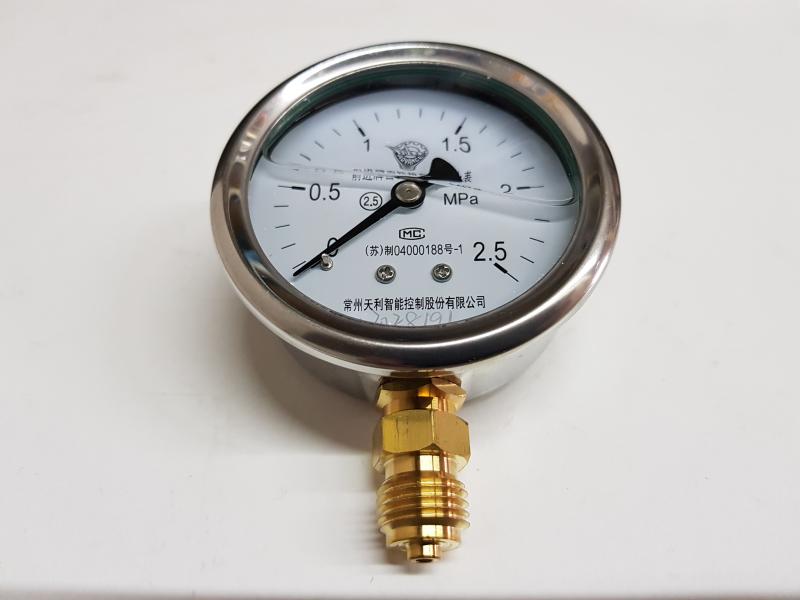

RELOJ PRESIÓN ACEITE

BUJE BRONCE RELOJ PRESIÓN

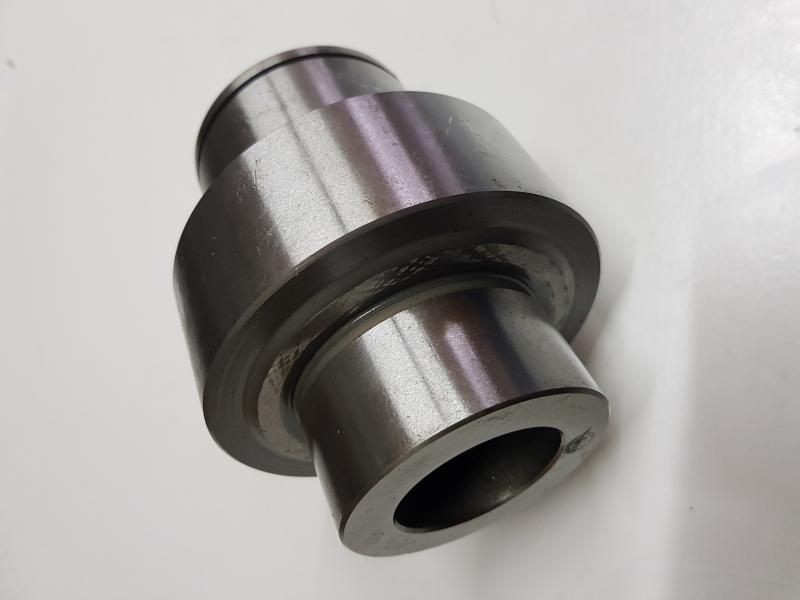

CAMISA EJE PRIMARIO

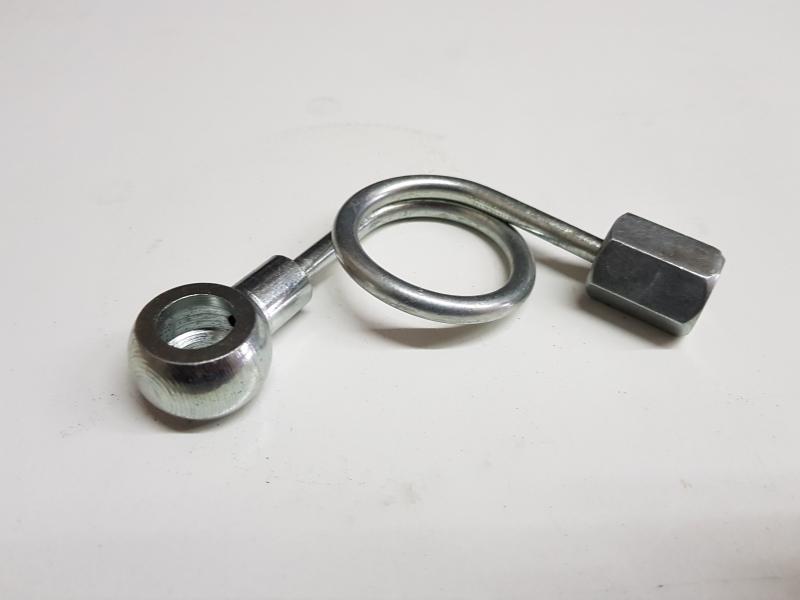

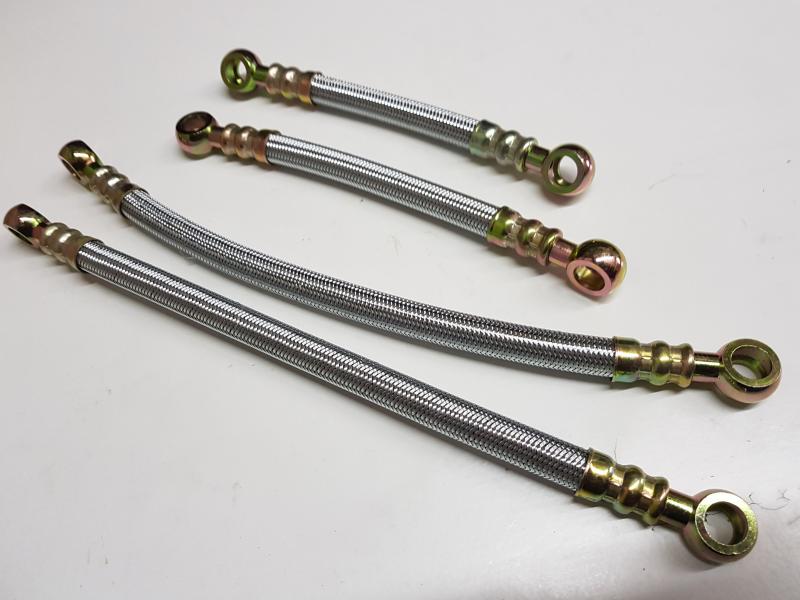

JUEGO CAÑERÍAS ACEITE

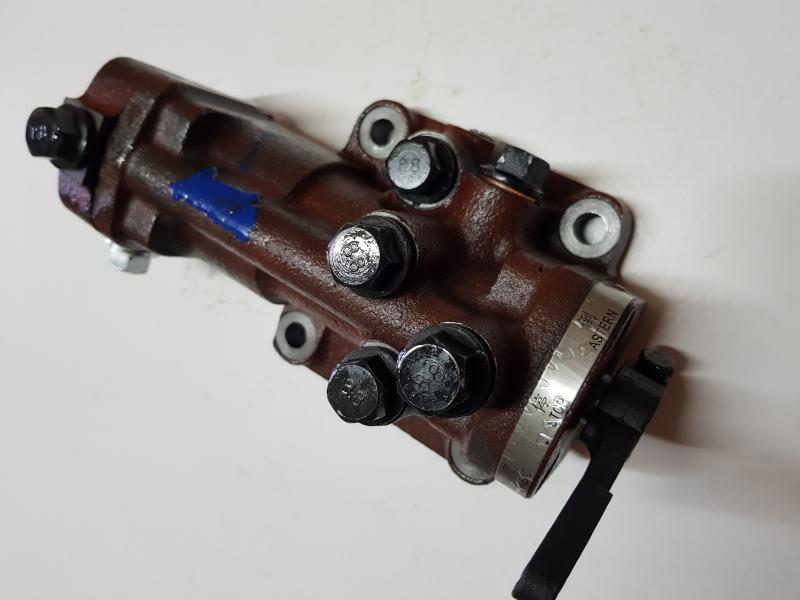

COMANDO HIDRÁULICO

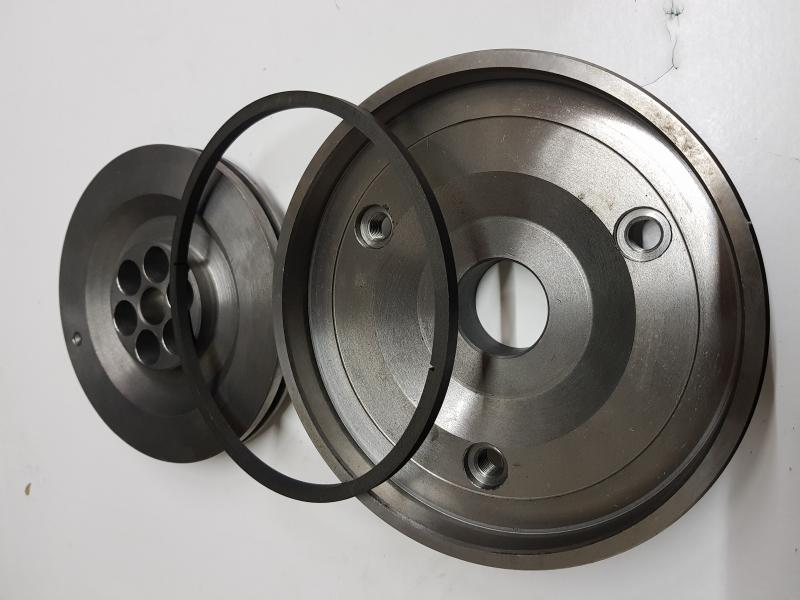

PISTÓN 135A

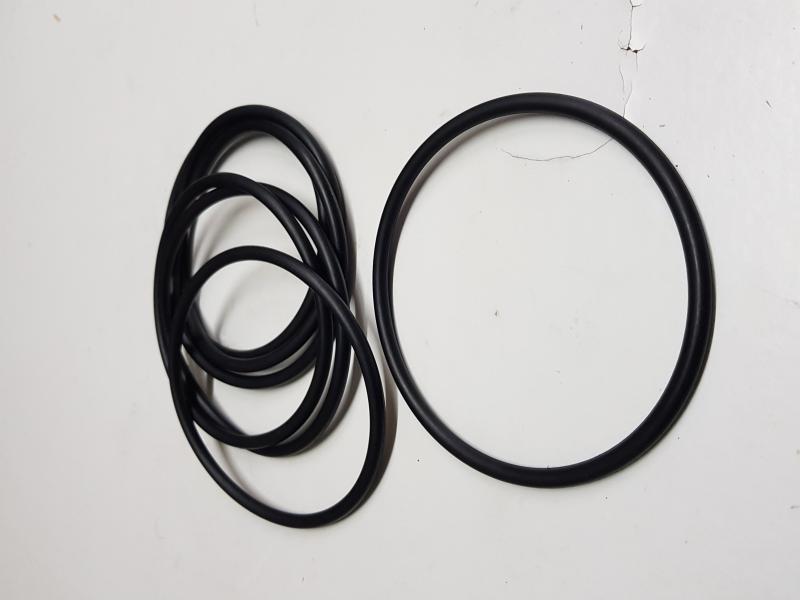

ORING BOMBA ACEITE

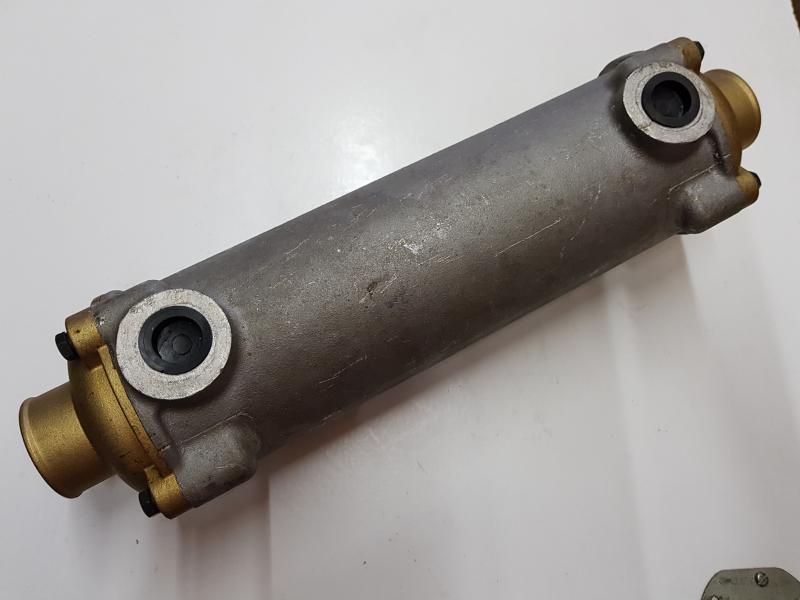

ENFRIADOR ACEITE

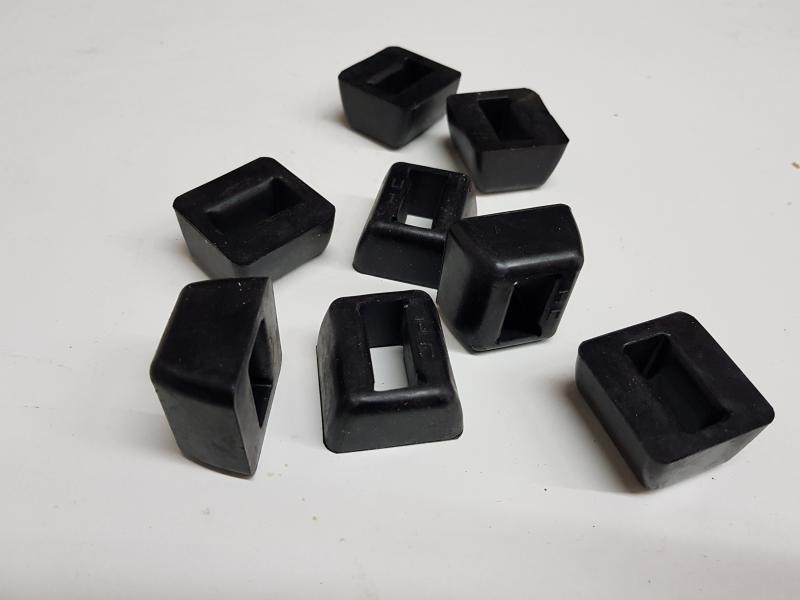

TACOS GOMA GRANDE

CAMISA EJE SECUNDARIO

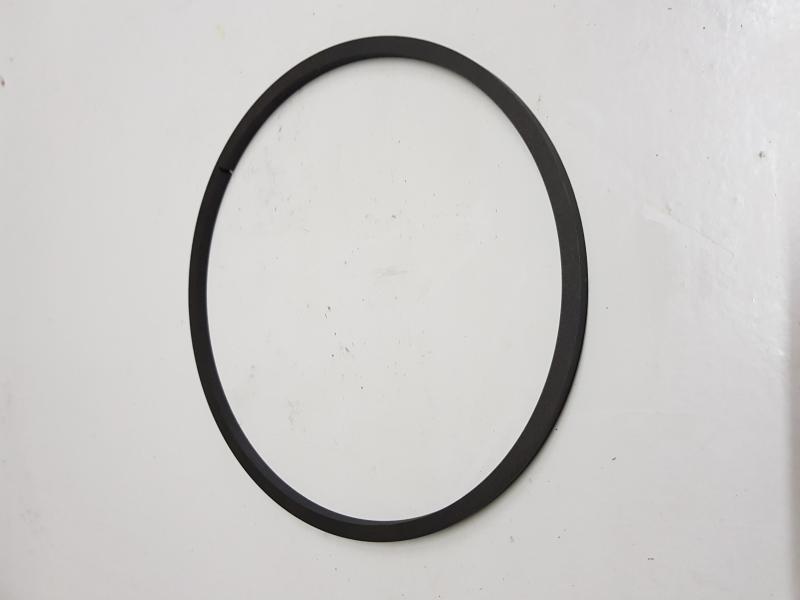

ANILLO PISTÓN 135A

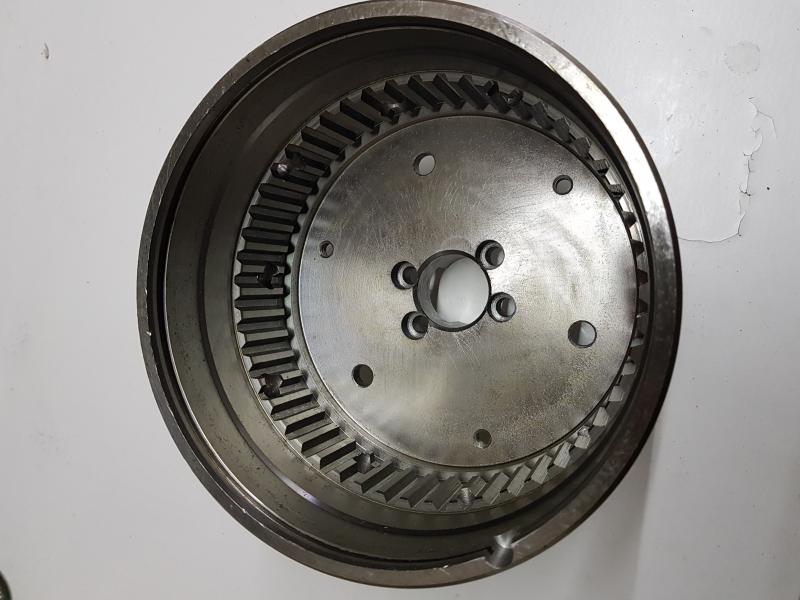

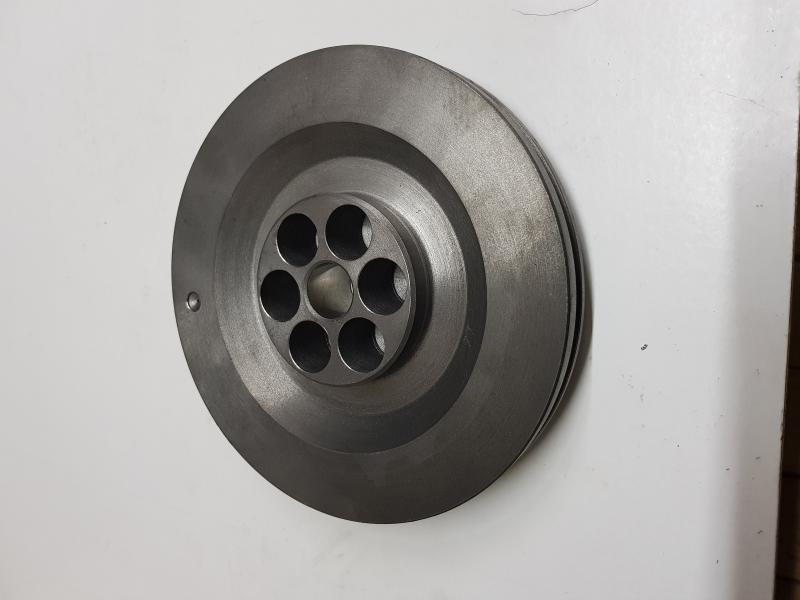

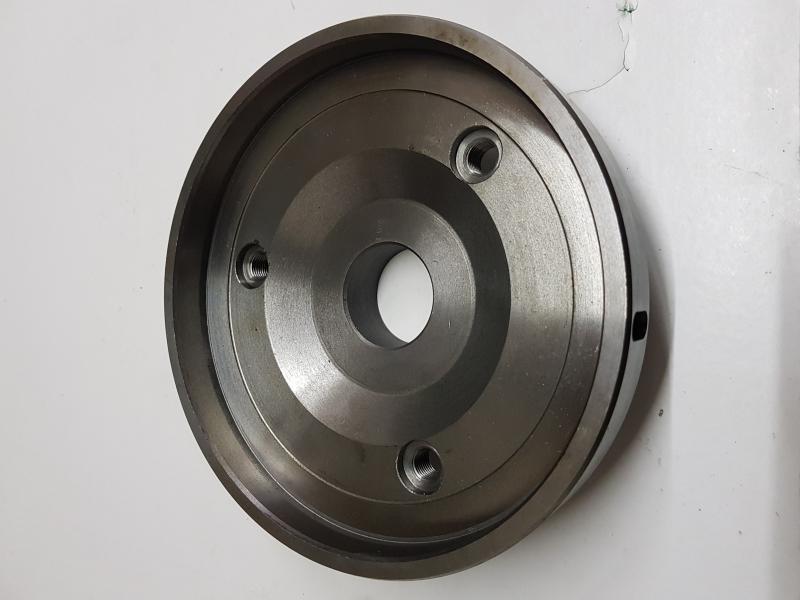

TAMBOR DISCOS

CAÑERÍA RELOJ

PISTÓN

FILTRO ACEITE CÁRTER

PORTADOR DISCOS

BOMBA ACEITE

ANILLO PISTÓN

VOLANTE ALUMINIO

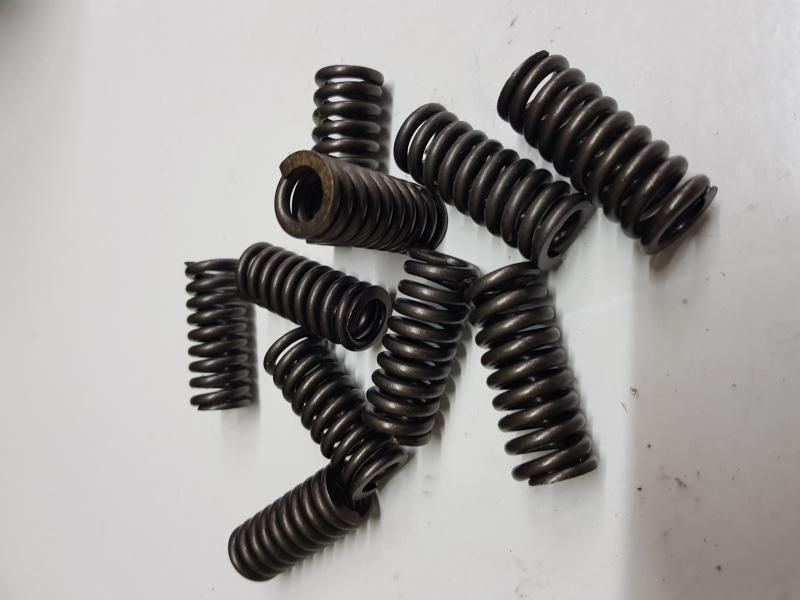

RESORTE PISTÓN

N°	Descripción	Codigo Parte	Cant.	N°	Descripción		Codigo Parte	Cant.
1	Fastening bolt	135 — 01 — 003	1	15	Bearing		NJ313	2
2	Pin	BIZ x 40GB120 — 86	3	16	Thrust ring at input end		135 — 01 — 007	1
3	Bolt	M10 x 25GB32.1 — 88	5	17	Bearing spacer		135 — 01 — 006	1
4	Input Coupling adaptor	135 — 01 — 031	1	18	Snap ring		135 — 01 — 008	2
5	Thrust plate	135 — 01 — 030	1	19	Drive gear	Mn = 4. Z = 66	135 — 01 — 009/6	1
6	Adjusting plug	135 — 01 — 002	1			Mn = 4.5. Z = 15	135 — 01 — 009/5.5
7	Washer	135 — 01 — 029	1			Mn = 4.5. Z = 16	135 — 01 — 009/5
8	Snap ring	85GB894 — 86	1			Mn = 4.5. Z = 17	135 — 01 — 009/4.5
9	Splashing pan	135 — 01 — 028	1			Mn = 4.5. Z = 19	135 — 01 — 009/4
10	Thrust ring	180GB305 — 89	1			Mn = 4.5. Z = 21	135 — 01 — 009/3.5
11	Bearing	6317N	1			Min = 4.5. Z = 24	135 — 01 — 009/3
12	Spraying washer	1135 — 01 — 027	1			Mn = 4.5. Z = 27	135 — 01 — 009/2.5
13	Input shaft sleeve	135 — 01 — 004	1			Mn = 4.5. Z = 32	135 — 01 — 009/2
14	Left- hand gear	135 — 01 — 005	1

Ver / Ocultar Cod. 1 al 19

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
20	Bearing	N2313 YA1GB T283 (N2313/YA1-1 for 2:1)	1	34	Oil sealing	1201 — 0025A	1
21	Clutch casing	135 — 01 — 024B	1	35	-------------	135 — 01 — 016A	1
22	Socket head cap screw	135 — 01 — 032	4	36	Key	8 x 18GB1567 — 79	1
23	Supporting ring of torsional shaft	135 — 01 — 012	1	37	Snap ring	135 — 01 — 023	1
24	Carrier of frictonal plates	135 — 01 — 011A	1	38	Emergency screw	135 — 01 — 013A	3
25	Pin	12N6 x 20GB119 — 86	3	39	Snap ring	GB895.2 — 86	1
26	Screw	M8 x 18GB65 — 85	3	40	Oil distributor	135 — 01 — 019	1
27	Outer friction plate single sintered	1201 — 0018	2	41	Distributor sleeve	135 — 01 — 020A	1
28	Inner friction plate	135 — 01 — 033	5	42	Locking bar	135 — 01 — 026	1
29	Outer friction plate	1201-0007	4	43	Sleeve ring	l35 — 01 — 021	1
30	Torsional shaft	135 — 01 — 010	1	44	Snap ring	40GB894.1 — 86	1
31	Spring cup	135 — 01 — 025	1	45	Spring washer	8GB93-87	1
32	Spring	135 — 01 — 018B	6	46	Screw	M8 x 16GB5783 — 86	1
33	Piston	135 — 01 — 014A	1

Ver / Ocultar Cod. 20 al 46

N°	Descripción	Codigo Parte	Cant.	N°	Descripción		Codigo Parte	Cant.
1	Fastening bolt	135 — 01 — 003	1	15	Bearing		NJ313	2
2	Pin	BIZ x 40GB120 — 86	3	16	Thrust ring at input end		135 — 01 — 007	1
3	Bolt	M10 x 25GB32.1 — 88	5	17	Bearing spacer		135 — 01 — 006	1
4	Input Coupling adaptor	135 — 01 — 031	1	18	Snap ring		135 — 01 — 008	2
5	Thrust plate	135 — 01 — 030	1	19	Drive gear	Mn = 4. Z = 66	135 — 01 — 009/6	1
6	Adjusting plug	135 — 01 — 002	1			Mn = 4.5. Z = 15	135 — 01 — 009/5.5
7	Washer	135 — 01 — 029	1			Mn = 4.5. Z = 16	135 — 01 — 009/5
8	Snap ring	85GB894 — 86	1			Mn = 4.5. Z = 17	135 — 01 — 009/4.5
9	Splashing pan	135 — 01 — 028	1			Mn = 4.5. Z = 19	135 — 01 — 009/4
10	Thrust ring	180GB305 — 89	1			Mn = 4.5. Z = 21	135 — 01 — 009/3.5
11	Bearing	6317N	1			Min = 4.5. Z = 24	135 — 01 — 009/3
12	Spraying washer	1135 — 01 — 027	1			Mn = 4.5. Z = 27	135 — 01 — 009/2.5
13	Input shaft sleeve	135 — 01 — 004	1			Mn = 4.5. Z = 32	135 — 01 — 009/2
14	Left- hand gear	135 — 01 — 005	1	20	Bearing		N2313 YA1GB T283 (N2313/YA1-1 for 2:1)	1

Ver / Ocultar Cod. 1 al 20

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
21	Clutch casing	135 — 01 — 024B	1	34	Oil sealing	1201 — 0025A	1
22	Socket head cap screw	135 — 01 — 032	4	35	-------------	135 — 01 — 016A	1
23	Supporting ring of torsional shaft	135 — 01 — 012	1	36	Key	8 x 18GB1567 — 79	1
24	Carrier of frictonal plates	135 — 01 — 011A	1	37	Snap ring	135 — 01 — 023	1
25	Pin	12N6 x 20GB119 — 86	3	38	Emergency screw	135 — 01 — 013A	3
26	Screw	M8 x 18GB65 — 85	3	39	Snap ring	GB895.2 — 86	1
27	Outer friction plate single sintered	1201 — 0018	2	40	Oil distributor	135 — 01 — 019	1
28	Inner friction plate	135 — 01 — 033	5	41	Distributor sleeve	135 — 01 — 020A	1
29	Outer friction plate	1201-0007	4	42	Locking bar	135 — 01 — 026	1
30	Torsional shaft	135 — 01 — 010	1	43	Sleeve ring	l35 — 01 — 021	1
31	Spring cup	135 — 01 — 025	1	44	Snap ring	40GB894.1 — 86	1
32	Spring	135 — 01 — 018B	6	45	Spring washer	8GB93-87	1
33	Piston	135 — 01 — 014A	1	46	Screw	M8 x 16GB5783 — 86	1

Ver / Ocultar Cod. 21 al 46

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Bolt	M10 x 25GB/T5783 — 1986	2	11	Spacer	135—03—003	1
2	Washer	10GB/ T93 — 1987	2	12	Bearing	22220GB/T288	1
3	Adjusting plug	135-03-001	1	13	Pressure Spring	1.2 x 12 x 13JB/T272—1960	6
4	Thrust bearing bush	135 — 03 — 010	1	14	Splashing pan	135—03—004	1
5	Seal ring	135 — 03 — 009	1	15	Thrust bearing seal	135—03—005A	1
6	Oring	150 x 5 . ?GB/T1235 — 1976	1	16	Oring	180 x 5 . 7GB/T1235—1976	1
7	Bearing	29414GB/T5859	1	17	Output shaft	135—03—007	1
8	Bearing	N1316GB/T283	1	18	Nut	M16GB/T6170—1986	8
9	Spacer	135 — 03 — 002	1	19	Washer	16GB/T93—1987	8
10	Gear	135 — 03 — 008/6	1	20	Companion coupling	135—03—1988	1
		135 — 03 — 008/5 . 5		21	Bolt	M16 x 7SGB/T27—1988	8
		135 — 03 — 008/5		23	Oiled asbestos packing	F8JB/T68—1964	1
		135 — 03 — 008/4 . 5		24	Thrust plate	135—03—011	1
		135 — 03 — 008/4		25	Washer	8GB/T93—1987	6
		135 — 03 — 008/3 . 5		26	Bolt	M8 x 25GB/T5783—1986	6
		135 — 03 — 008/ 3
		135 — 03 — 008/2 . 5
		135 — 03 — 008/2

Ver / Ocultar Codigos

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Bolt	M10 x 35GB / T5783 — 1986	16	17	Gasket	1204 — 0004	2
2	Pin	3u8 x 20GB / T119 — 1986	1	18	Plug	Q21 — 13	4
3	Bolt	M10 x 105GB / T5782 — 1986	2	19	Copper washer	021 — 13	3
4	Bolt	M10 x 35GB / T70 — 1985	4	19	Copper washer	Q21 — 14	1
5	Washer	10GB / T93 — 1987	37	20	Washer	135 — 04 — 020	3
6	front end Cover	135 — 04 — 003	1	21	Piping assembly , astern	135 — 04 — 300B	1
7	Bell housing	135 — 04 — 001 — 01	1	22	Piping assembly , ahead	135 — 04 — 400B	2
8	Cover	1601 — 0018	1	23	Lub . oil piping	135 — 04 — 500B	1
9	Washer	6GB / T93 — 1987	2	24	Adaptor	135 — 04 — 019	3
10	Button head cap screw	M6 x 12GB / T67 — 1985	2	25	Adaptor screw	135 — 04 — 022	1
11	Dip stick knob	135 — 04 — 601	1	26	Adaptor screw	Q21 — 19	3
12	Oring	16 X 2.4GB / T1235 — 1976	1	27	Bolt	M8 x 75GB / T5782 — 1986	12
13	Oil dip stick	135 — 04 — 602	1	28	Socket head cap screw	MB x 35GB / T70 — 1985	1
14	Bolt	M8 x 25GB / T5783 — 1986	8	29	Rear cover	135 — 04 — 010	1
15	Washer	8GB / T93 — 1987	28	30	Gasket	135 — 04 — 011	1
16	Top Cover	135 — 04 — 009	2	31	Gasket	135 — 04 — 013	1

Ver / Ocultar Cod. 1 al 31

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
32	Bolt	M10 x 65GB/T5782 — 1986	15	48	Pin	8n6 x 16GB / T119 — 1986	2
33	Front cover	135 — 04 — 103	1	49	Breather cap	Q29 — 06	1
34	Gasket	135 — 04 — 012	1	50	Oil retainer	Q29 — 05	1
35	Taper pin	12 x 45GB / T118 — 1986	4	51	Ring	Q29 — 04	1
36	Upper housing	135 — 04 — 101	1	52	Eye bolt	M16GB / T825 — 1988	2
37	Oil shroud	135 — 04 — 005	1	53	Stop screw	135 — 04 — 002	2
38	Suction pipe	135 — 04 — 007	1	54	Gasket	135 — 04 — 706	1
39	Clamper	135 — 04 — 008	1	55	Strainer	135 — 04 — 700	1
40	Oring	30 x 3.1GB / T1235 — 1976	1	56	Strainer flange	135 — 04 — 705	1
41	Lower housing	135 — 04 — 102	1	57	Bolt	MB x 25GB / T5783 — 1986A2 — 70	4
42	Washer	18GB / 193 — 1987	4	58	Support	135 — 04 — 004	2
43	Bolt	M18 x 90GB / T5782 — 1986	4	58	Support	135 — 04 — 004x1	2
44	Plug	Z3/4"Q20 — 02	1	59	pin	12 x 25GB / T120 — 1986	4
45	washer	8GB / T848 — 1985H62y	4	60	Bolt	M12 x 35GB / T5783 — 1986	12
46	Washer	12GB / T93 — 1987	22	61	Bolt	M8 x 16GB / T5783 — 1986	4
47	Bolt	M12 x 40GB / T5783 — 1986	10	62	Gasket	135 — 04 — 016	1

Ver / Ocultar Cod. 32 al 62

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Nut	M14 x 1.5GB / T6173 — 1986	1	11	Flat key	A4 x 14GB / T1096 — 1972	2
2	Transmission gear	135 — 06 — 001A	1	12	Drive shaft	Q07 — 01 — 102A	1
3	Bolt	M10 x 25GB / T5783 — 1986	6	13	Driven shaft	Q07 — 01 — 202A	1
4	Washer	10GB / T93 — 1987	6	14	Snap ting	16GB / T895.2 — 1986	2
5	Bolt	M8 x 30GB / T5783 — 1986	4	15	Drive gear	Q07 — 01 — 103A	2
6	Washer	8GB/T93 — 1987	4	16	Oil pump body	Q07 — 01 — 03	1
7	Connecting plate	135 — 06 — 002A	1	17	Lower housing	Q07 — 01 — 04	1
8	Seal ring	ф5 x ф100 / Q26 — 01	3	18	Locking plate	Q07 — 01 — 01	2
9	Upper housing	Q07 — 01 — 02	1	19	Bolt	M8 x 55GB / T5782 — 1986	4
10	Bearing	Q07 — 01 — 05	4	20	Cylinddrical pin	10n6 x 55GB / T119 — 1986	2

Ver / Ocultar Codigos

N°	Descripción	Codigo Parte	Cant.	N°	Descripción	Codigo Parte	Cant.
1	Plug	Q21 — 15	1	18	Connecting plate	135 — 073 — 001	1
2	Copper washer	22Q20 — 03	1	18	Connecting plate	135 — 073 — 001x	1
3	Nut	M14 x 1.5GB / T923 — 1988	1	19	Plug	ф12Q21 — 13	1
4	Copper washer	14Q20 — 03	1	20	Bolt	M8 x 35GB / T5783 — 1986	3
5	Filter casing	Q21 — 11A	1	21	Washer	8GB/T93 — 1987	8
6	Conical spring	009 — 01A — 02	1	22	Plug	ф7Q21 — 14	1
7	Wire gap ﬁlter	ur36A — 12 — 200	1	23	Oring	ф16 x 2.4GB / T1235 — 1976	1
8	Ball	ф10GB / T308 — 1989	1	24	Gasket	135 — 07 — 007	1
9	Spring	0.8 x 9 x 35.8JB / T272 — 1960	1	25	Bolt	M8 x 30GB / T5783 — 1986	5
10	ﬁlter Spindle	Q09 — 01A — 03	1	26	Hydraulic control system	Q06 — 01B — 00	1
11	Pin	2.5 x 16GB / T1194 — 1986	1	27	Bolt	M10 x 30GB / T5783 — 1986
12	Oring	5 x ф90Q26 — 01	1	28	Washer	10GB / T93 — 1987
13	Plug	M20 x 1.5Q20 — 01	1	29	Gasket	Q06 — 01A — 12
14	Copper washer	20Q20 — 03	1	30	Copper washer	14Q20 — 03
15	Washer	GB / T97.1 ~ .2 — 1985	1	31	Gauge assembly	Q06 — 01A — 200
16	Spring	1.2 x 12 x 641B / T272 — 1960	1	32	Bolt	M14 x 1.5 x 30Q21 — 19
17	Ball	ф13GB / T308 — 1989	1	33	Plug	Q20 — 01M14 x 1.5	1

Ver / Ocultar Codigos
